AHUA dimming control system 22AWG 24AWG M12 4pin female waterproof cable connector
AHUA dimming control system 22AWG 24AWG M12 4pin female waterproof cable connector
P/N: AH-M12-0404MFN01112
Connector: Nylon
Cable: PVC
Color: Black
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M12 Cable Connector Female 4pin
M12 female connector with 20AWG/22AWG/24AWG wire, PVC molding. Its waterproof level is IP67, suitable for a wide range of connection needed indoor/outdoor.

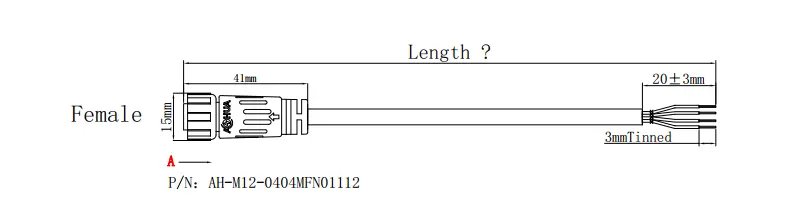

DRAWING
| P/N | AH-M12-0404MFN01112 |
| Type | Female |
| Voltage | 110V |
| Current | 4A |
| Wire Guage | ≤0.5mm²(20AWG/22AWG/24AWG) |
| Cable OD | 3.5mm-7.5mm |
| Color | Black/White |
| Temperature | -40℃~+105℃ |
| Waterproof Level | IP67 |

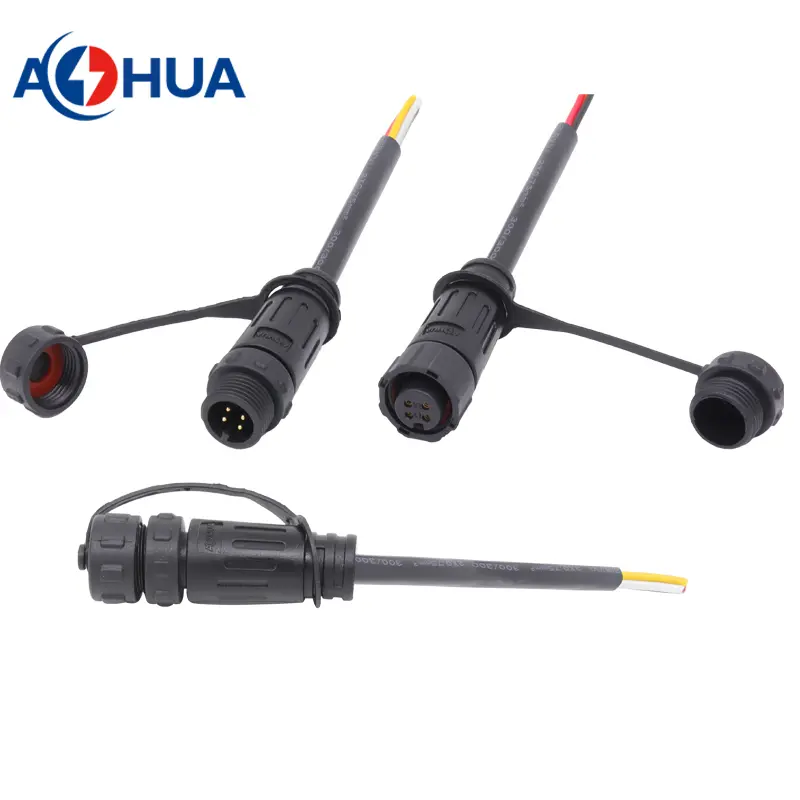

The dust caps of male/female is better for dust proof and waterproof when it not in used.
