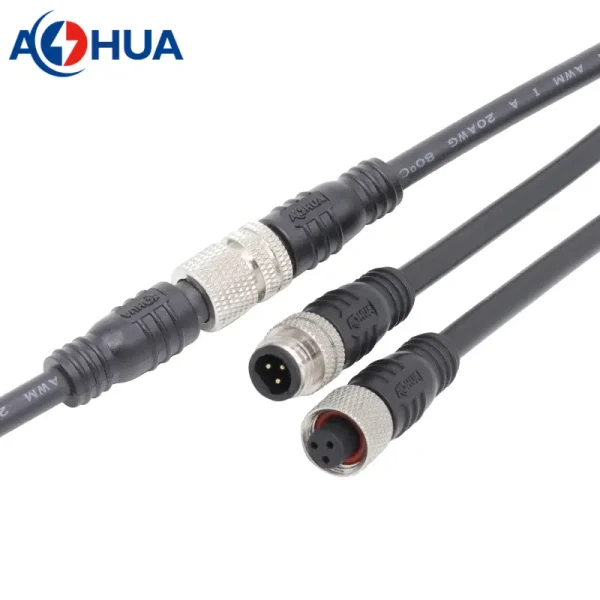

Electrical wire metal type M08-01 3pin male female waterproof connector
Electrical wire metal type M08-01 3pin male female waterproof connector

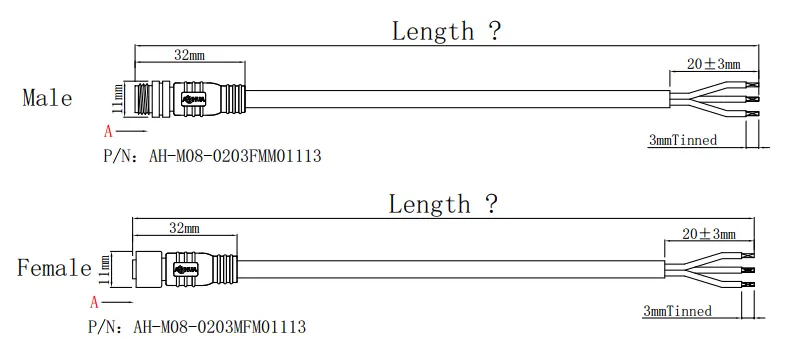

P/N: AH-M08-0203FMM01113/AH-M08-0203MFM01113
Material: metal
Cable: PVC
Color: black /white
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

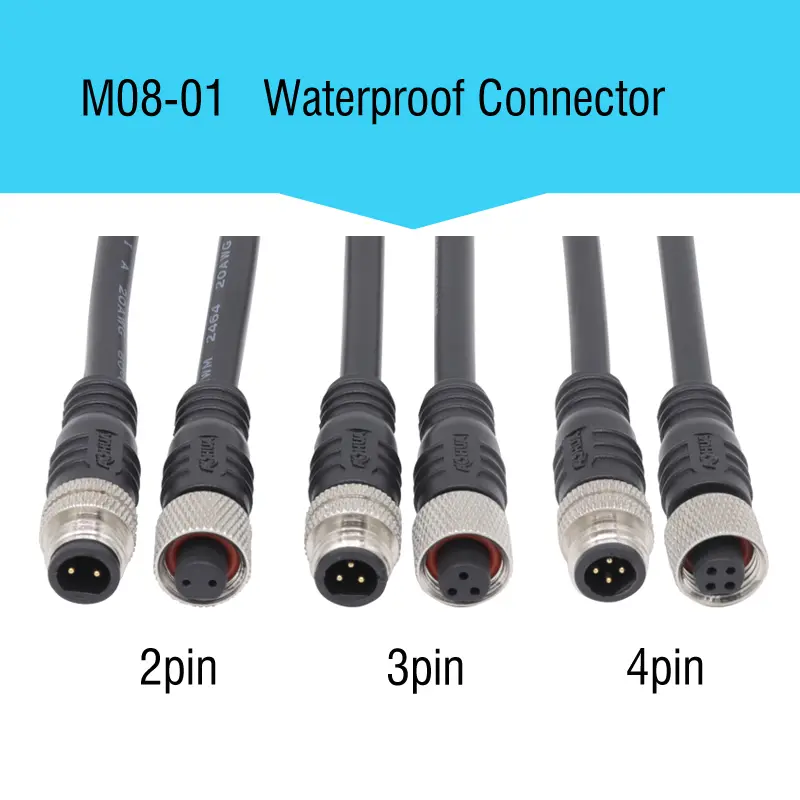

| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M08-0402FMM01113/AH-M08-0402MFM01113 | ≤0.5mm² | 110V | 4A |
| 3 | AH-M08-0203FMM01113/AH-M08-0203MFM01113 | ≤0.3mm² | 110V | 2A |
| 4 | AH-M08-0204FMM01113/AH-M08-0204MFM01113 | ≤0.3mm² | 60V | 2A |
| Cable OD | 3mm-5mm |
| Mechanical Life | 1500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
