Electronic Electrical Wire Male Female 4A M12 Molding Waterproof 3pin Aviation Connector
Electronic Electrical Wire Male Female 4A M12 Molding Waterproof 3pin Aviation Connector
- connector type: aviation
- Model: M12
- Contacts: 3pin
- Wire Gauge: ≤0.5mm²
- Cable OD: 2.5-5.0mm
- Mechanical Life: 1500mm mating cycles
- Operating Temperature: -20℃~+80℃
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Electronic Electrical Wire Male Female 4A M12 Molding Waterproof 3pin Aviation Connector

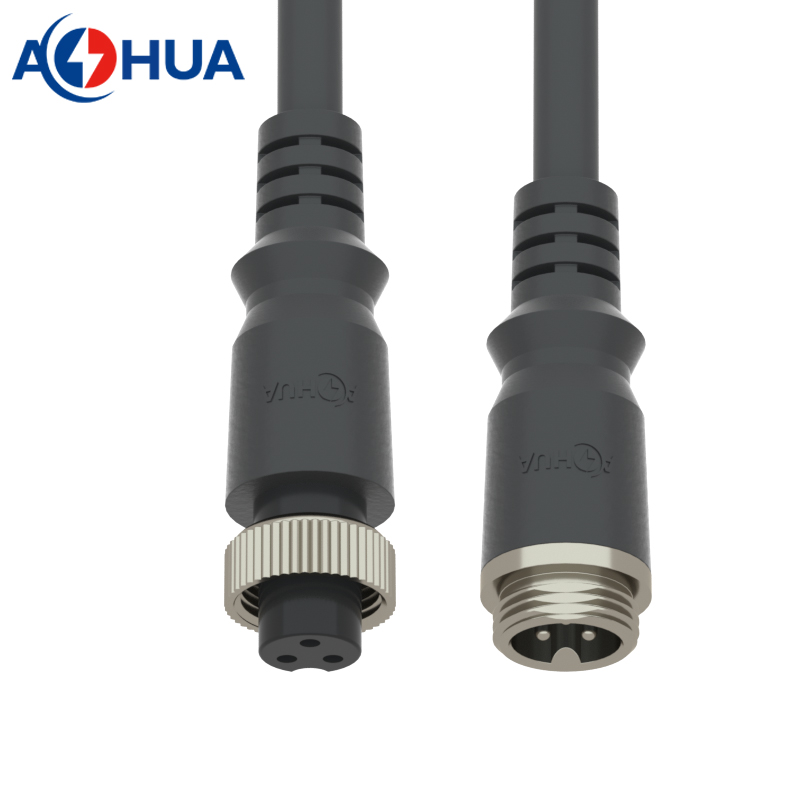

This is aviation type male female connector molded with cable.
- Male: AH-M12-0403FMA01111
- Female: AH-M12-0403MFA01112
- Model: M12
- Connector Type: aviation
- Conductor: solid copper
- Plastic Material: PVC
- Cable Material: PVC, rubber, and etc.
- Rated Voltage: 110V
- Rated Current: 4A
- Wire Gauge: 0.5mm²/0.324mm²/20AWG/22AWG/24AWG
- Cable OD: 3-5mm
How to order?
- confirm the connector type, such as extension cable with connectors on both sides, or connector with open wire end, or splitter cable harness with connector;
- specify the working ampere, wire gauge, cable length, cable material or cable OD, and etc.
- specify customize details.
- create a simple drawing or 3D files for better learning what you need.
