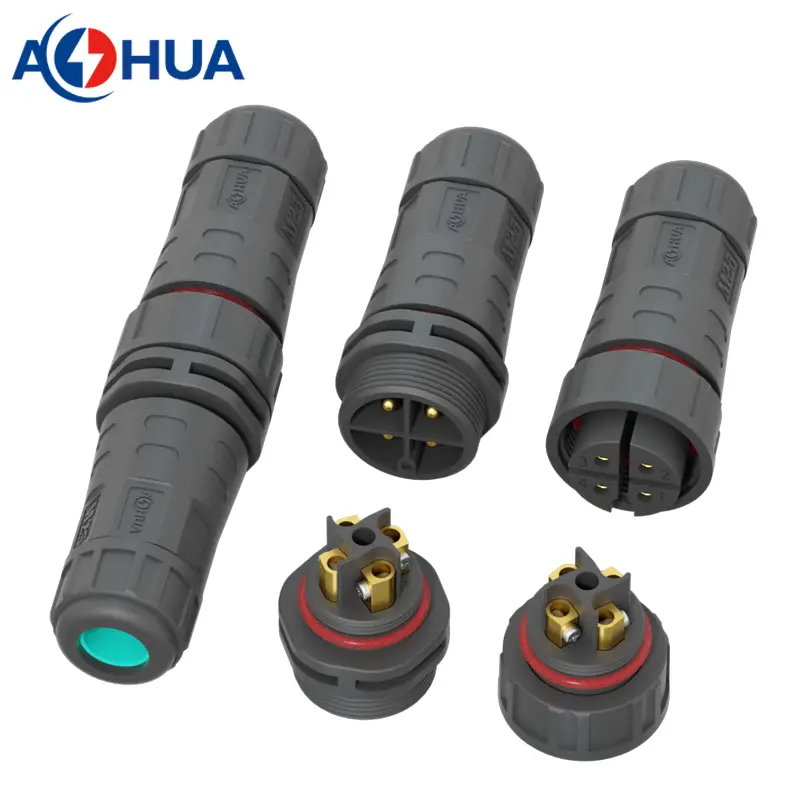

Fast Connect Screw Lugs M25 Irregular Pin 2pin 3pin 4pin Male Female Assembly IP67 Waterproof Power System Connector

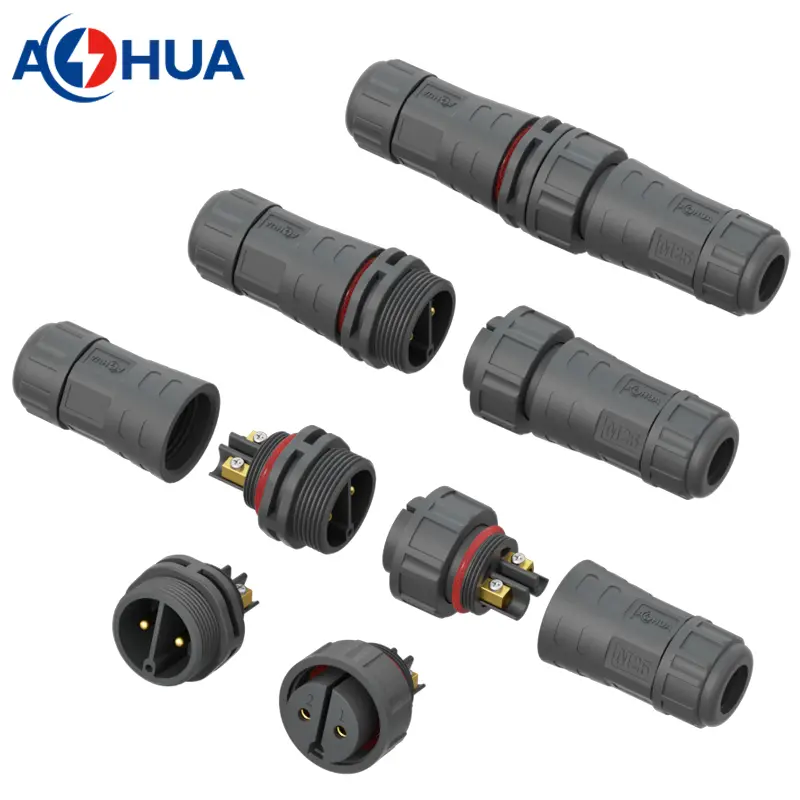

This is Model M25 wire to wire assembly connector, the metal is irregular shapes, which is no need glug filling that is save time and save cost in production.

1. Model: M25
2. Plastic material: PA66
3. Metal material: gold plated brass
4. Contacts: 2pin, 3pin, 4pin

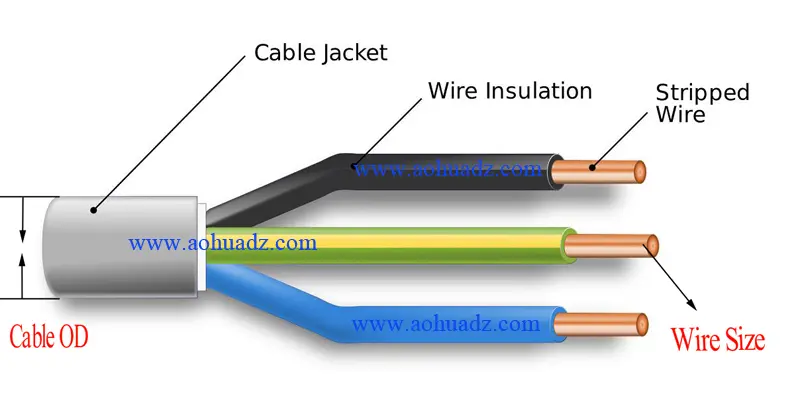

How to order? You can check the spefication and then leave message to our sales, we want to know your requests includes: contacts, such as 3pin; working ampere, such as 15A; wire gague, such as 14AWG; cable jacket OD, such as 10mm; whether require dust caps.

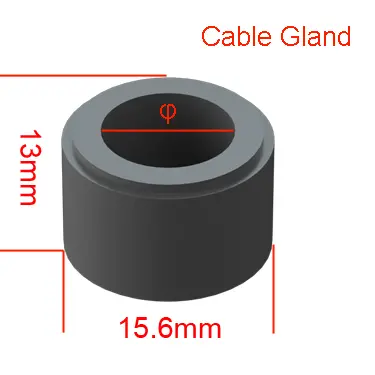

Cable gland for cable waterproof How to choose the right cable gland? The cable will go through the cable gland, it cable gland inside diameter should be larger than cable OD; due to require better waterproof result, the diameter also should be close to the cable OD. 6<OD<7mm, cable gland: φ7mm 7<OD<9mm, cable gland: φ9mm 9<OD<10mm, cable gland: φ10mm 9.5<OD<10.5mm, cable gland: φ11mm 10<OD<11.5mm, cable gland: φ12mm 11<OD<13mm, cable gland: φ13mm

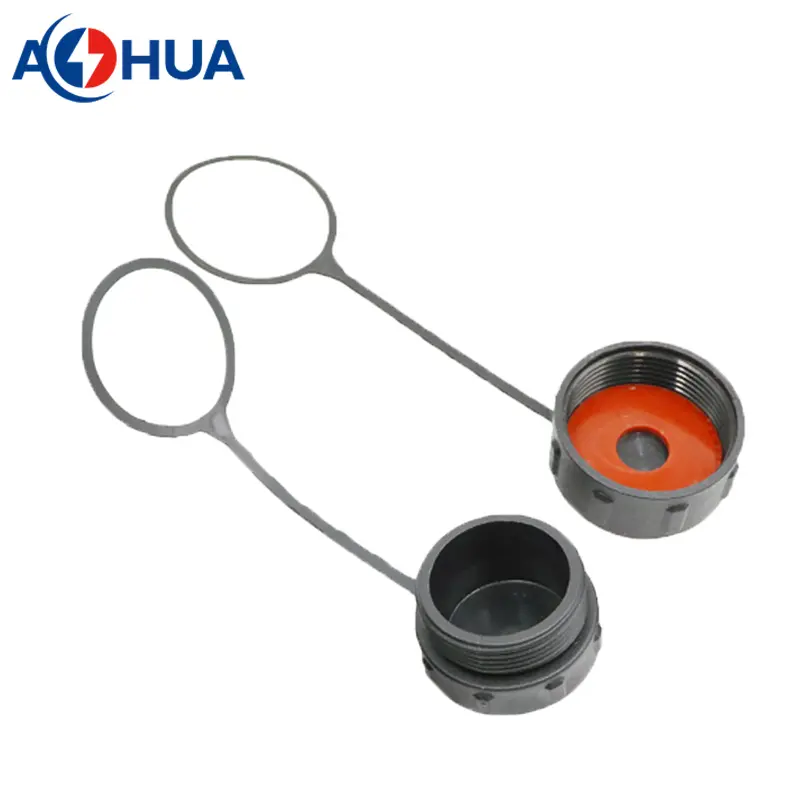

Dust cap for dust/water proof when unplug. There are dust caps for the connector when unplug. When unplug, the metal will be bare in the air, it need the dust cap to protect.  AH-M25-CAP-M AH-M25-CAP-F

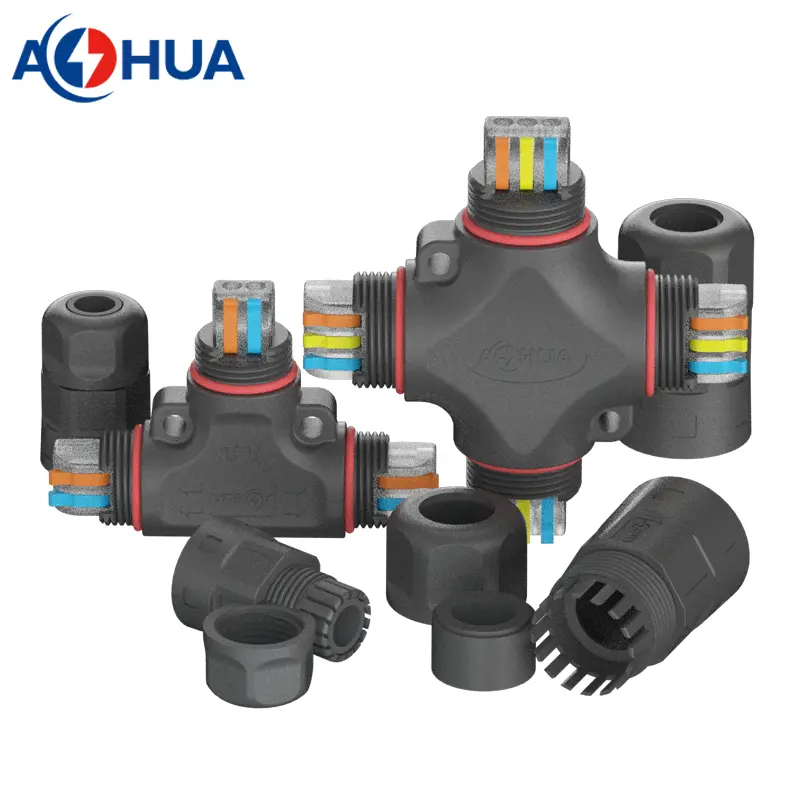

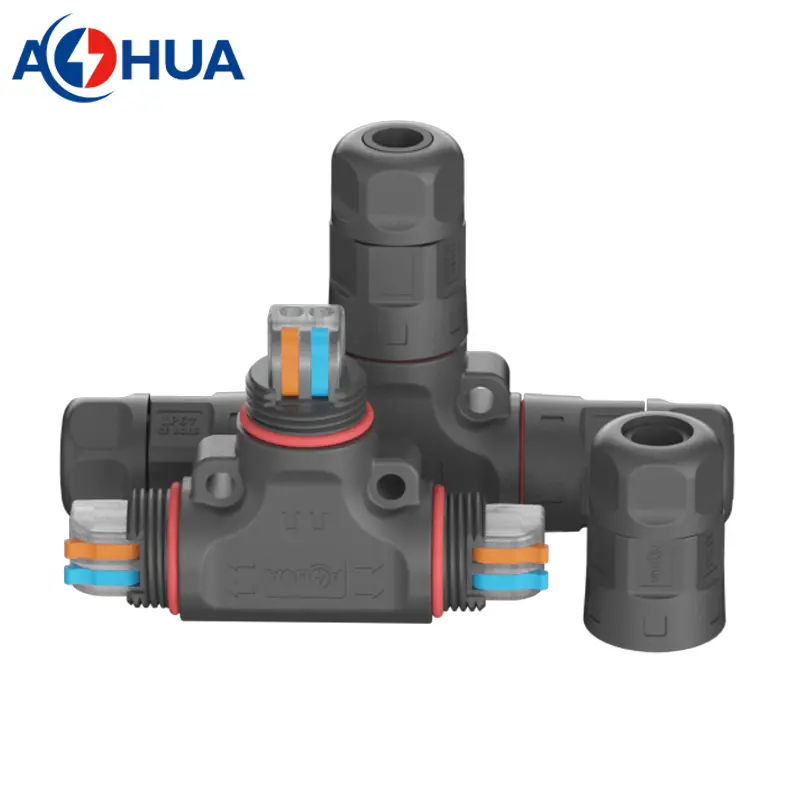

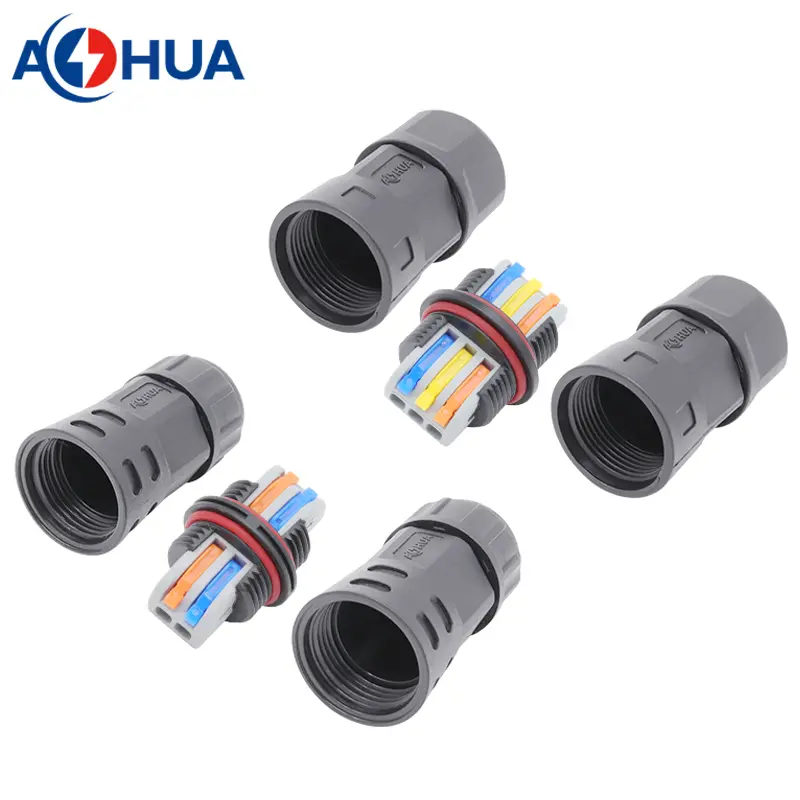

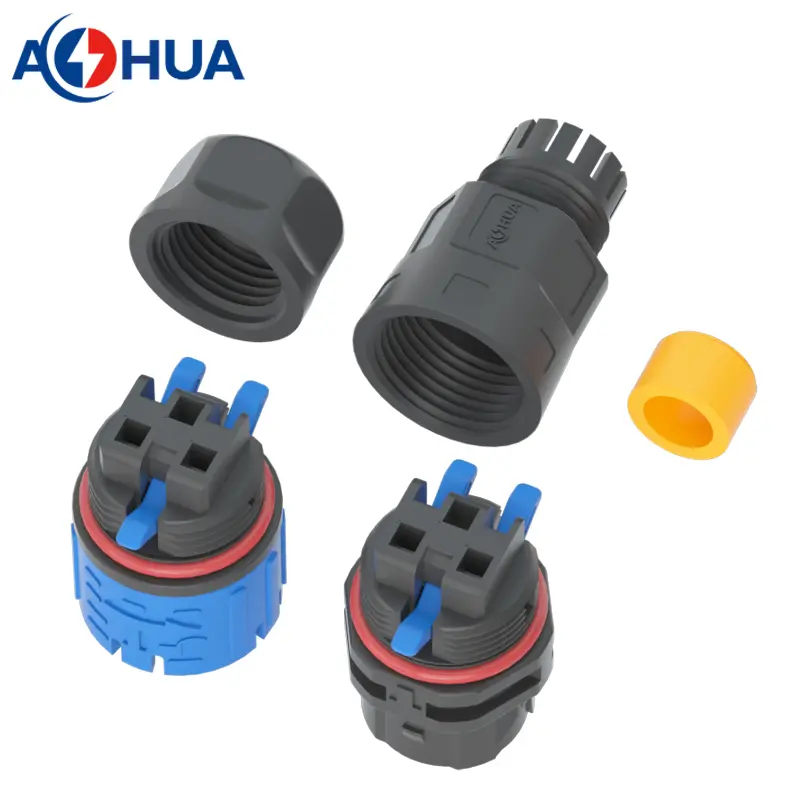

AOHUA as a producer in Shenzhen, with more than 18 years’ developing, we have designing & producing more than 4000 products, and we have own more than 5000m² factor workshop, and have hortizontal / vertical machine for injection, also have cable wires production workshop for making PVC/Rubber cable. There are more than more than 11 people engineers and designers. With the rapid development of sociaty, we need faster ways to connect in reality. These two years, AOHUA is engaging in developing the fast waterproof connector without screw threads, or no screw lugs, that is push/wire connection. At present, what the fast waterproof connectors we have:

Except these connectors, we also provide cable solutions customization, you can check our website www.aohuadz.com or contact Molly via email molly@aohuadz.com.
