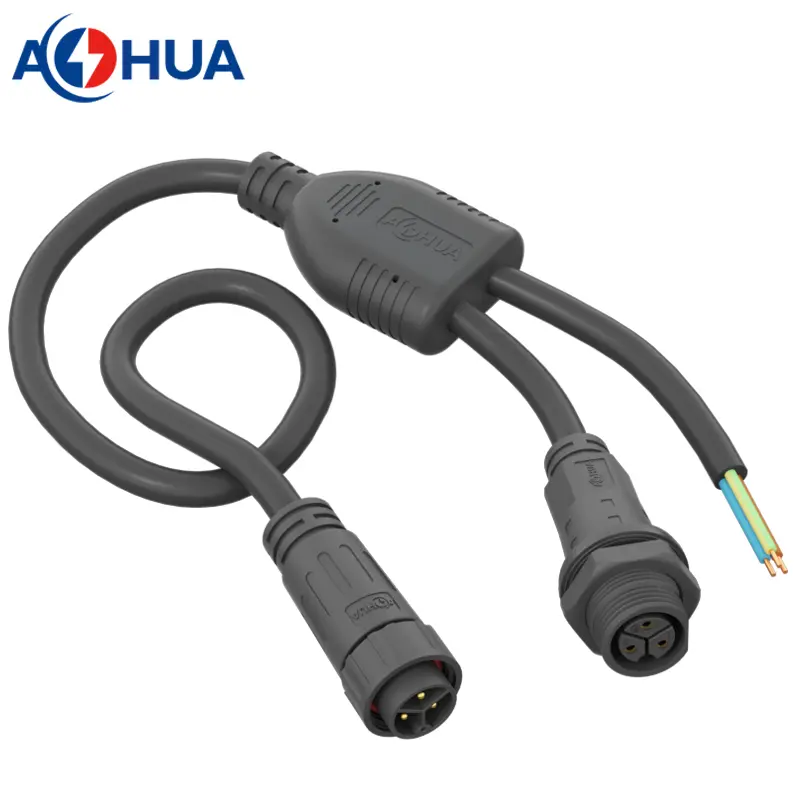

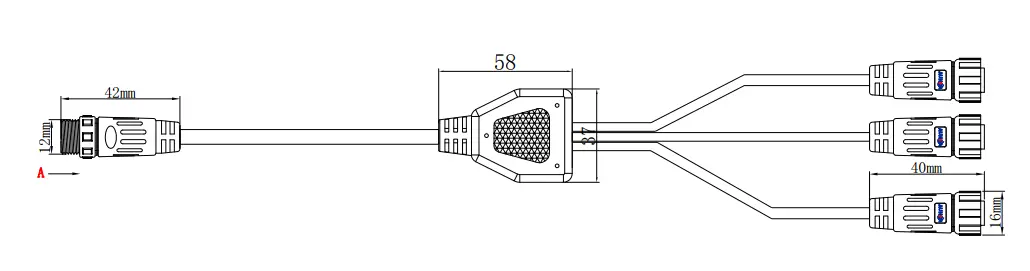

Design Y distributor solution with connector:

Model: Y distributor

Connector: M20

Contacts: 3pin

Connector Type: molding/panel mount type

Plastic Material: PA66

Conductor: gold plated brass

Based on the splitter,  design one input cable and multiple branch cables. The input cable and branch cables can be designed with diffrerent types connector, such as straight connector or male to female connector, or panel mount type connector. Meanwhile the contacts of connectors can be 2pin or more than 2pins.

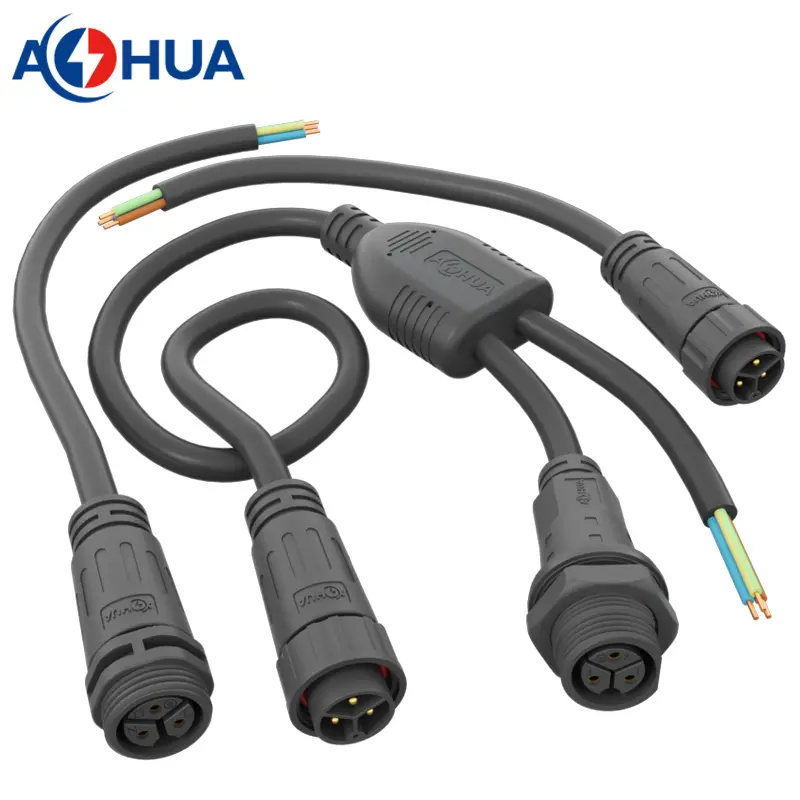

Y splitter with male female connector

1 input cable with 2 output cables: the cable with male female connector, the input connector is male molding connector, branch cables are panel mount female connector and bare wire.

It is the key difference of this solution that the mating connectors are assembly male female connector, which is screw lugs to be easy for wiring operation in field assembly.

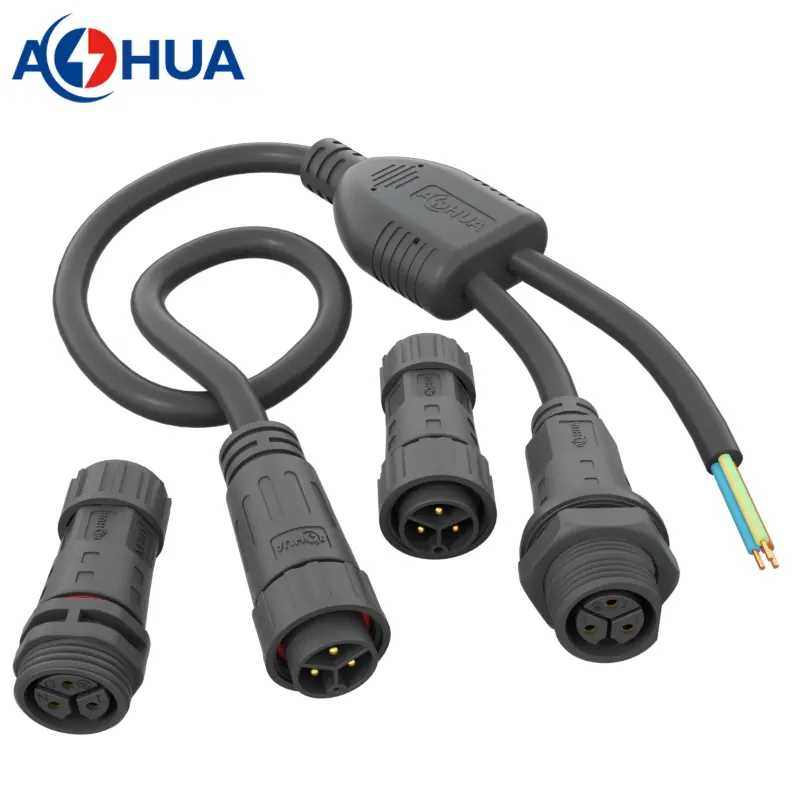

Y splitter with male female connector

1 input cable with 2 output cables: the cable with male female connector, the input connector is male molding connector, branch cables are panel mount female connector and bare wire.

It is the key difference of this solution that the mating connectors are the molding male female connector, which is coming with cable directly.

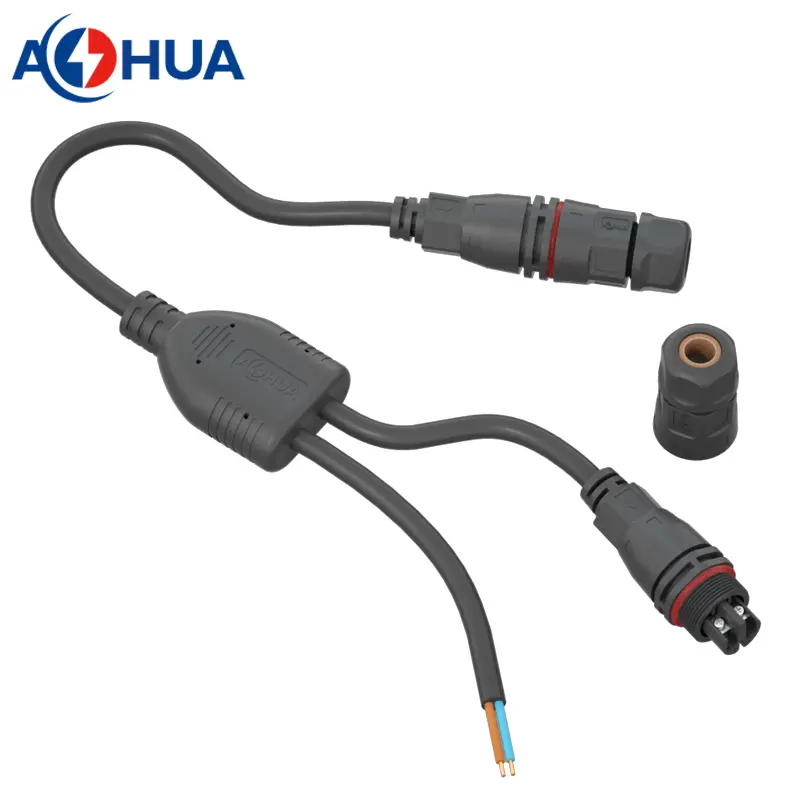

Y splitter with straight connector

1 input cable with 2 output cables: the cable with straight connector, the input connector is molding straight connector, branch cables are also molding straight connector and bare wire.

The key difference is the straight connector is no gender, which is not possible to plug and unplug. But it is screw lugs, also easy for wire operation.

Different material

PVC

PA66

Connection Type

Solder type

Screw type

Push-wire type

Connector Type

Male to female : screw thread type or self locking type

Straight type

How to customize?

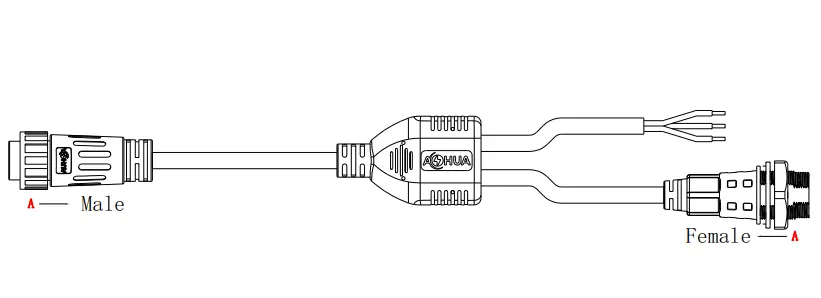

It will be much appreciated if you can provide simple drawing and setch, which is easy understand what you want.

Then please specify the details includes:

1. contacts;
2. connector type;
3. working ampere;
4. wire gauge and cable length/cable OD;
5. color and material;
6. connection such as Parallel or Series;
