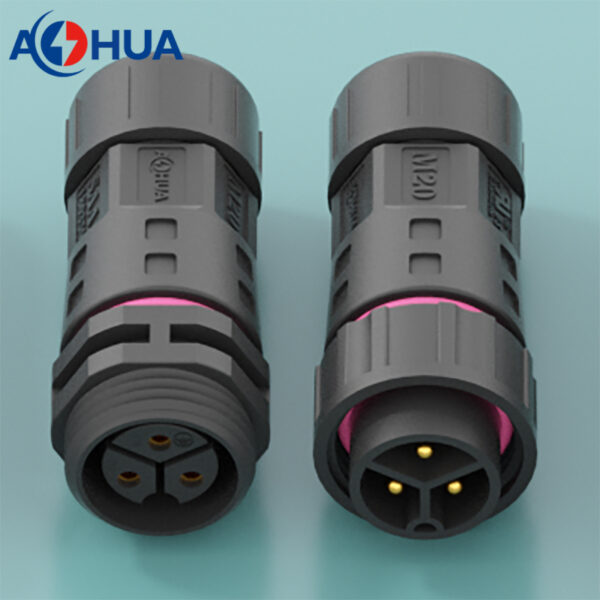

Gold Plated Copper PA66 3pin 15A Male To Female Assembly IP68 Waterproof Plug Socket UL Approved
Gold Plated Copper PA66 3pin 15A Male To Female Assembly IP68 Waterproof Plug Socket UL Approved
- UL approved 3pin 15A waterproof connector
- Model: M20
- Voltage Rated: 300V
- Current Rated: 15A
- Wire Size: ≤1.5mm²
- Cable OD: 5-10mm
- UL standard: UL2238
- Certificate: UL/CE/ROHS
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Gold Plated Copper PA66 3pin 15A Male To Female Assembly IP68 Waterproof Plug Socket UL Approved
Specifications

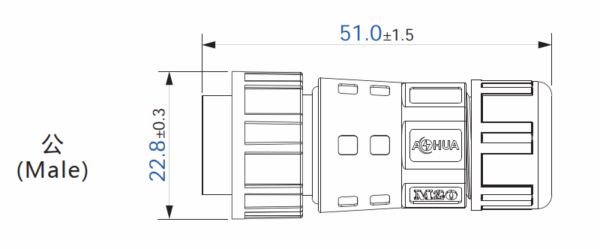

- Male: AH-M20-1503MMZ01112

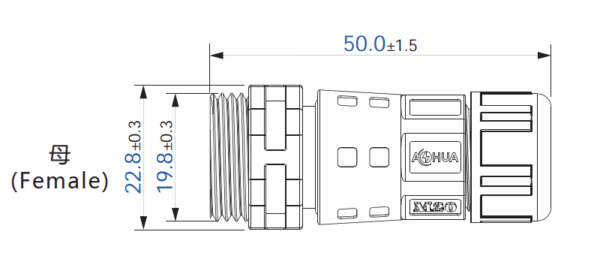

- Female: AH-M20-1503FFZ01112
- Voltage Rated: 300V
- Current Rated: 15A
- Wire Size: ≤1.5mm²
- Cable OD: 5-10mm
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP68
- Certificate: UL, TUV, SAA, CE, ROHS
Highlights
- Connector Type: inline, assembly
- Connection Type: soldering
- Docking Type: male to female, screw threads type
- Plastic Material: PA66
- Conductor Material: gold plated copper
How to order?
- specify the connector type, connection type, docking type;
- confirm the certificate required;
- indicate the working ampere, wire gauge, and cable OD required;
- specify quantity, application;
There is dust cap for choosing from, not a standard feature. (no certificate.)
