Industry Medical Circular 2Pin Male Female Socket Panel Mount Thread Jack 30cm Extension Cable M12 Wire Aviation Connector
Industry Medical Circular 2Pin Male Female Socket Panel Mount Thread Jack 30cm Extension Cable M12 Wire Aviation Connector
- 2pin panel aviation connector
- connector type: aviation
- Model: M12
- Contacts: 2pin
- Wire Gauge: ≤0.75mm²
- Cable OD: 2.5-5.0mm
- Mechanical Life: 1500 mating cycles
- Operating Temperature: -20℃~+80℃
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Industry Medical Circular 2Pin Male Female Socket Panel Mount Thread Jack 30cm Extension Cable M12 Wire Aviation Connector

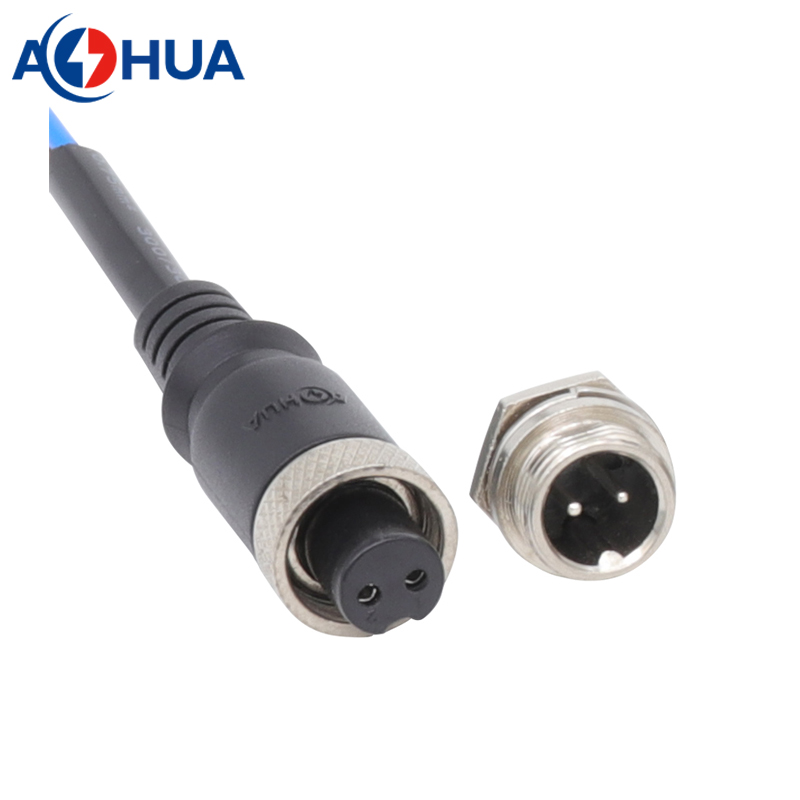

This is aviation connector 2pin that is male panel to female inline cable.
- Male: AH-M12-0502FMA01114
- Female: AH-M12-0502MFA01111
- male: rear panel mount
- screw nut: Aluminum
- female: inline, molded with cable directly
- plastic material: PVC
- cable material: PVC, rubber, or specified
- conductor: solid copper
- cable length: customized as required
- rated voltage: 110V
- rated current: 5A
- wire gauge: ≤0.75mm²
- cable OD: 2.5-5mm
How to order?
- confirm the connector type, such as the connector with cable open wire end or panel plug with single core electrical wire or not.
- specify the working ampere, and the wire gauge and cable length you need.
- specify the details of stripping, tinning, and customized.
- or create a sketch for the cable harness you need.
- send all these details to our sales, we will get back to you within 24 hours, and submit with CAD drawing or 3D files.
