K25 Fast Locking Male Female IP67 Waterproof Panel Mount Connector 3 PIN
K25 Fast Locking Male Female IP67 Waterproof Panel Mount Connector 3 PIN
Male: AH-K25-3503FMF01212
Female: AH-K25-3503MFZ01222
Connector Type: male panel type, female in-line
Material: Nylon PA66
Contacts: 3 positions
Rated Voltage: 300V
Rated Current: 35A
Wire Gauge: ≤4.0mm²
Cable OD: 6.5-15mm
Mechanical Life: 1000 mating cycles
Operating Rating: -40℃~+105℃
Waterproof Level: IP67/IP68
Certificate: CE/RoHS/ISO
Payment Terms: Paypal, T/T Wire Transfer
Shipping Port: Shenzhen China
Share to:
K25 Fast Locking Male Female IP67 Waterproof Panel Mount Connector 3 PIN
Male: AH-K25-3503FMF01212
Female: AH-K25-3503MFZ01222
 |
 |
|

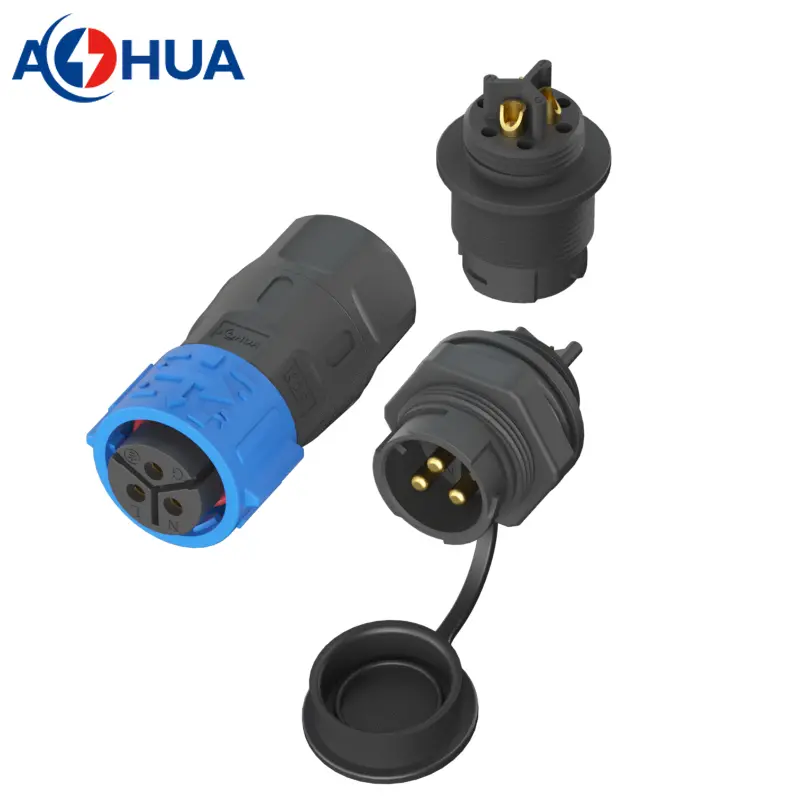

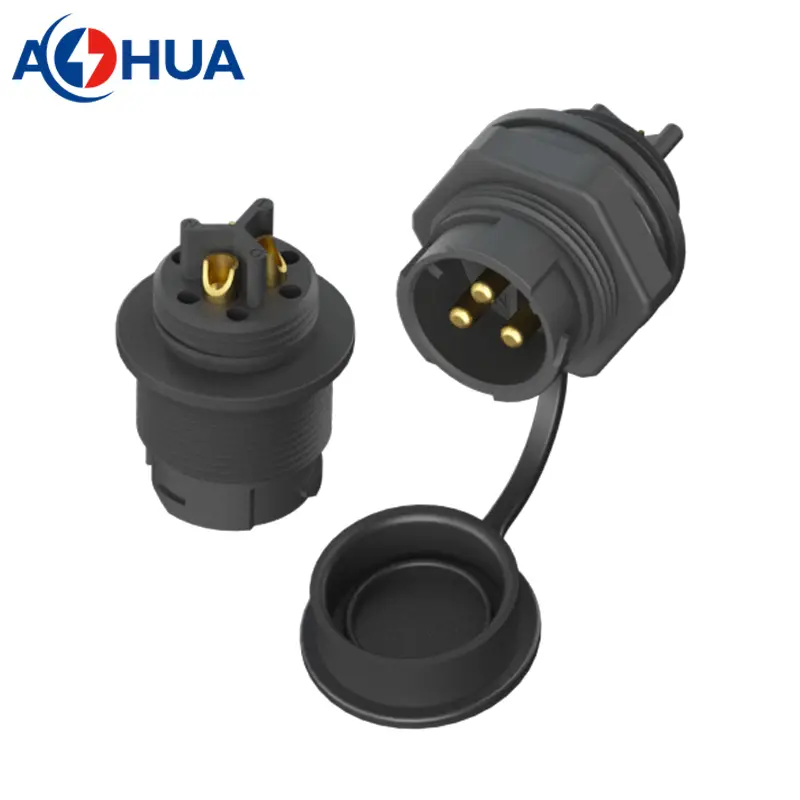

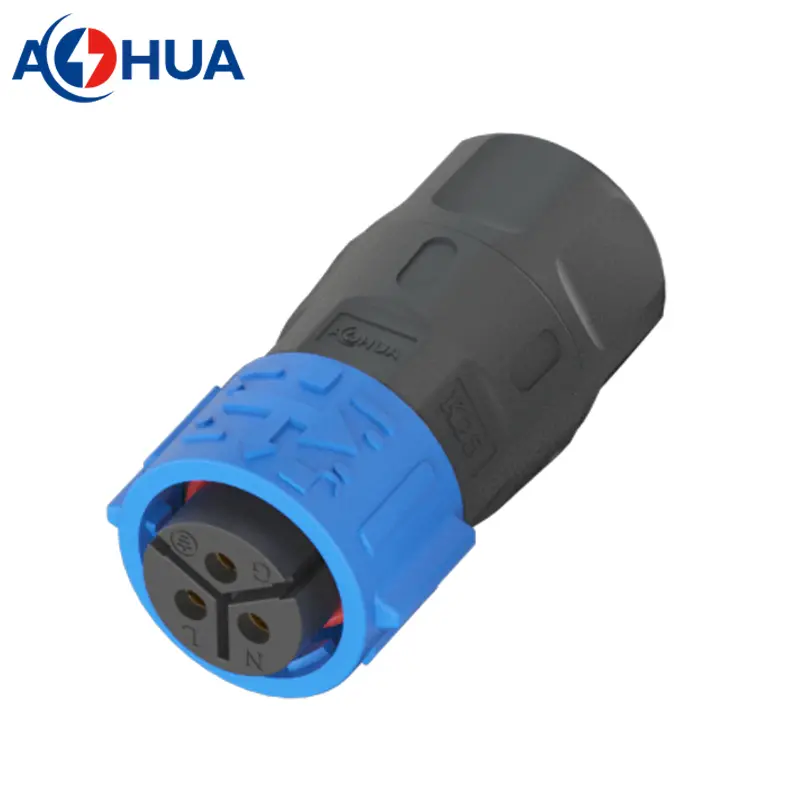

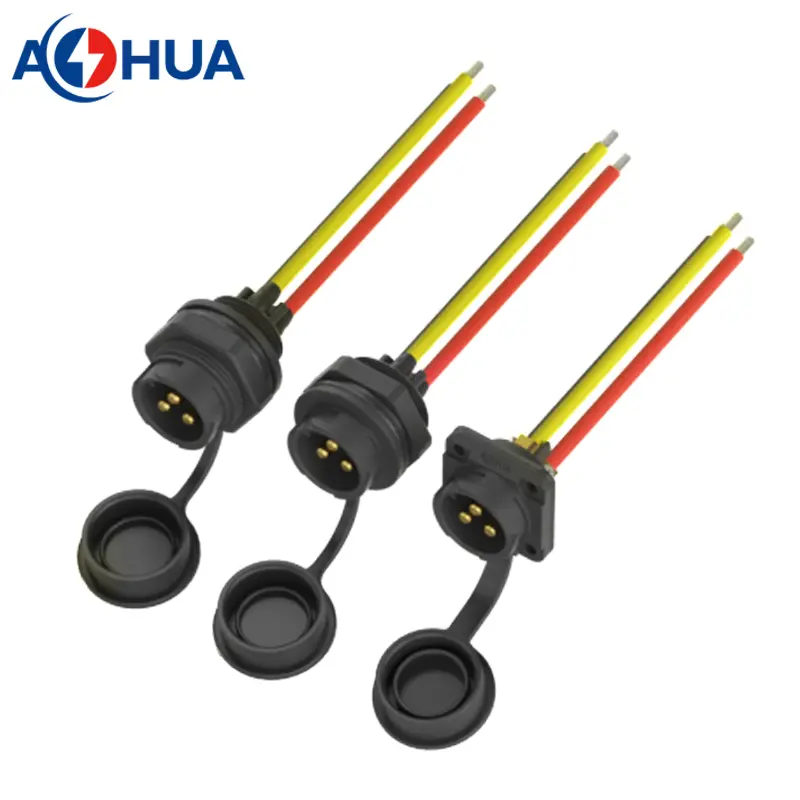

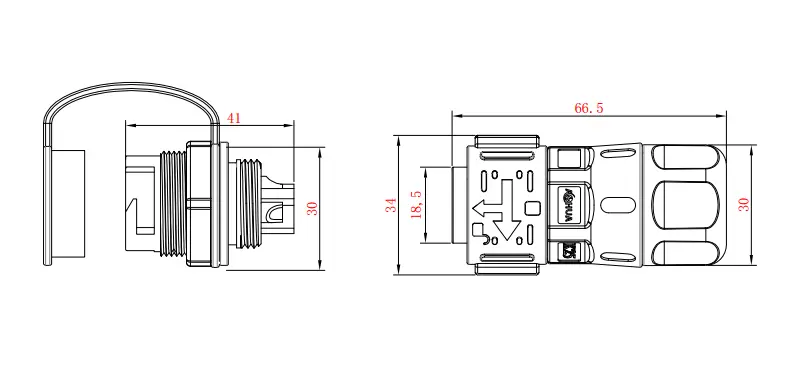

This is K25 series fast locking panel mount connector, the male is front panel mount type and the female is in-line type. This connector is asssembled with components that is not coming with cable. The male panel connectors comes with solder lugs, and the female connector comes with screw lugs.
|
Material:
- Plastic: Nylon PA66
- Metal: Gilded brass
- Dust Cap: Silicone rubber
| Contacts | 3 position |
| Voltage | 300V |
| Current | 35amperes |
| Wire Gauge | 4.0mm², 2.5mm² or 10AWG/12AWG |
| Cable OD | 6.5-15mm |
| Mechanical Life | 1000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP67 / IP68 |
| Seal Ring | 20.6*13*7.5/8.5/10/12/13/15mm |
 |

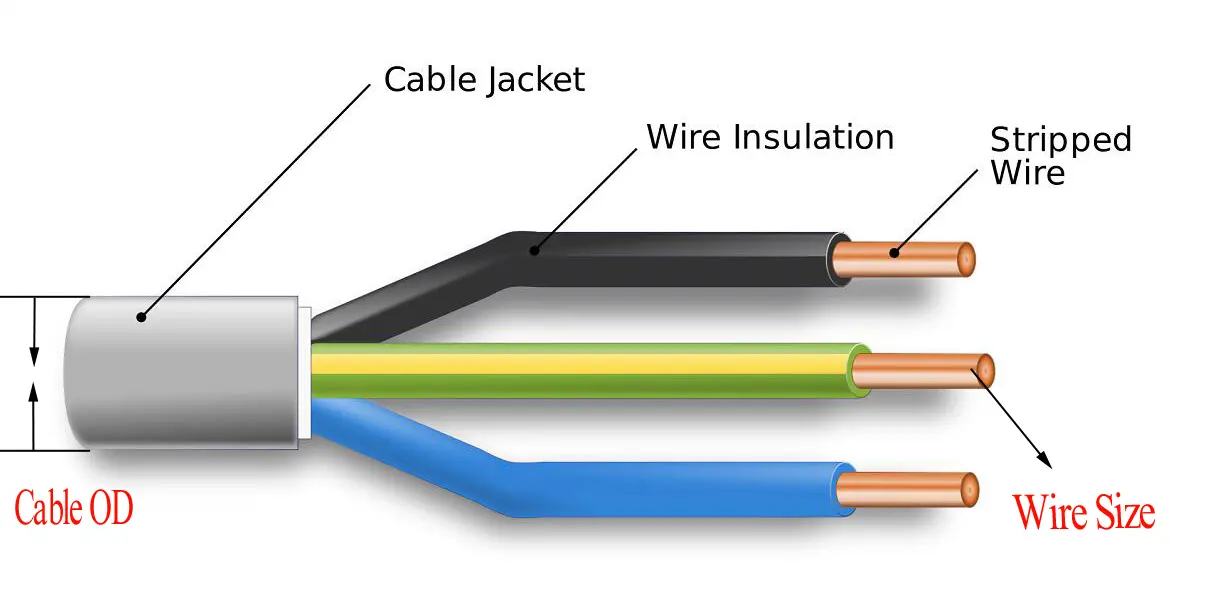

How to order panel mount connectors? Before order, please specify the connector requirements or details of wire, includes: 1. connector types, such as in-line type or panel type; male panel or female panel; 2. contacts or pin number, such as 3 pin; 3. working ampere and voltage, such as 25A, 220V; 4. wire gauge and cable jacket OD, such as 3*2.5mm², OD12mm. Other requirements are also OK, please lease us message, and then we will reply you within 12 hours. |
How to do the wire installation?
- welding electrical wire on male panel plug
- tighten up wires on female screw lugs
- take off components orderly of male connector
- put male core through panel hole and tighten up components
- male insert to female connector
 |
How to choose the right seal ring for your application? The cable will go through the seal ring, but seal ring will ensure the waterproof effect, so the right seal ring will be important for your application. As usual, it will achieve better waterproof effect if the seal ring inside diameter is larger than but close to the cable jacket OD. |
| Cable Jacket OD | Seal Ring |
| 6.5-7.5mm | φ7.5mm |
| 7.0-8.5mm | φ8.5mm |
| 8.5-9.5mm | φ10mm |
| 9.5-11mm | φ12mm |
| 11-12mm | φ13mm |
| 12-15mm | φ15mm |
