M series M12 M16 M20 M25 M29 panel type male female waterproof connector

M series M12 M16 M20 M25 M29 panel type male female waterproof connector

P/N: M12 M16 M20 M25 M29
Material: nylon
Color: Black
Contacts: 2 3 4 5 6 7 8 pin
Type: male/female panel, front/rear panel mount
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal

Share to:

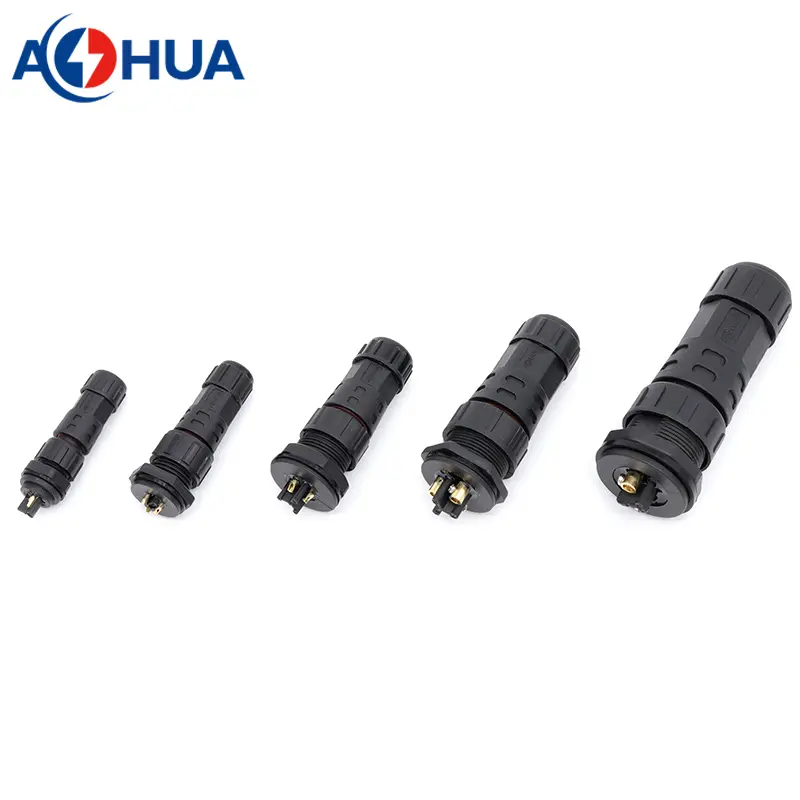

M Series Panel Type Assembly Connector

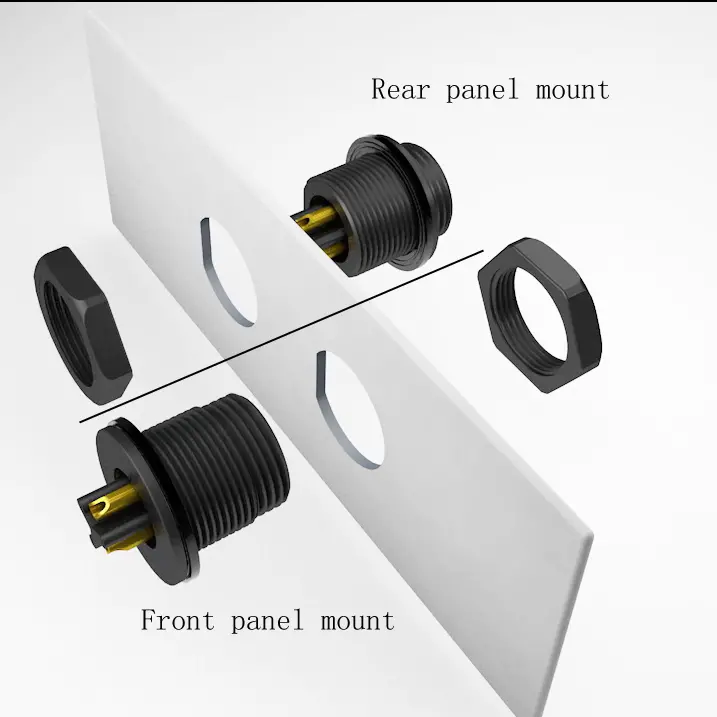

Male Panel to Female in-line Connector: front panel mount or rear panel mount

Female Panel to Male in-line Connector: front panel mount or rear panel mount

M Series	M12	M16	M20	M25	M29
Contacts	2-8pin	2-8pin	2-8pin	2-5pin	2-4pin
Voltage	300V	300V	300V	300V	300V
Current	10A	10A	15A	25A	35A
Wire	<1.0mm²	<1.0mm²	<1.5mm²	<2.5mm²	<4.0mm²
