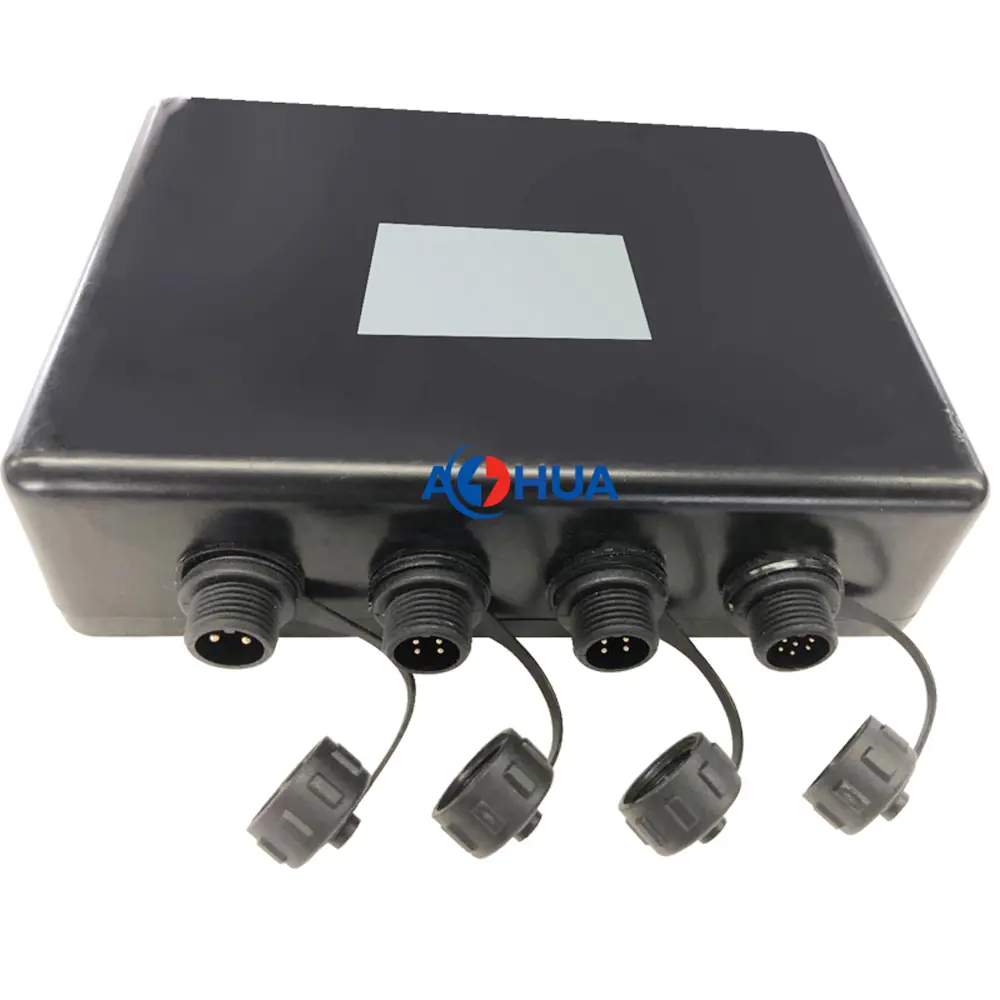

M12 2pin panel type male female waterproof plug for junction box

M12 2pin panel type male female waterproof plug for junction box

P/N: M12
Material: nylon
Color: black
Certificate: CE/ROHS

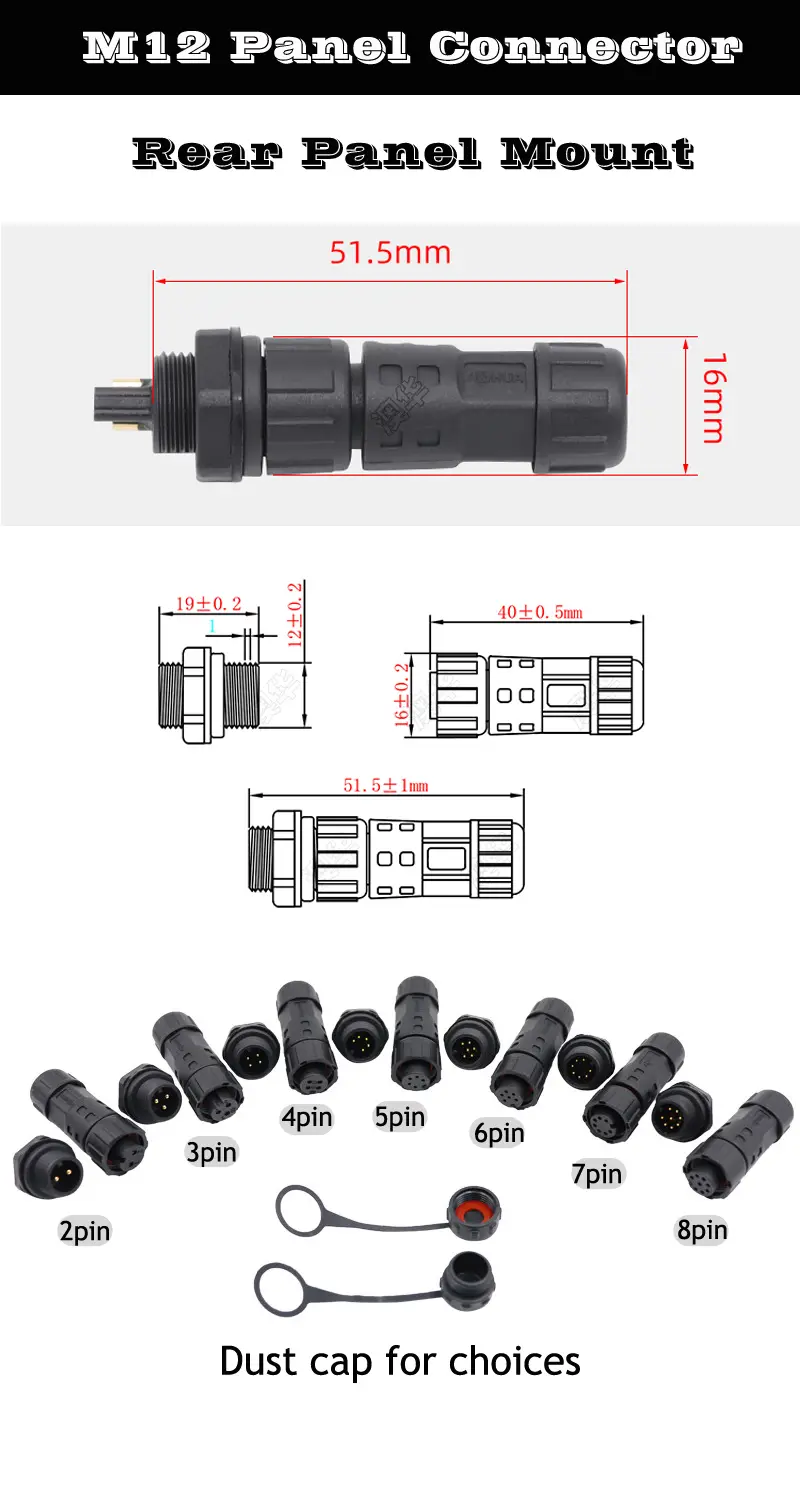

Type: rear panel mount / male panel
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal

Share to:

PINs	Male	Female	Wire Gague	Voltage	Current
2	AH-M12-0502FMR01112	AH-M12-0502MFZ01112	≤1.0mm²	300V	5A
3	AH-M12-0503FMR01112	AH-M12-0503MFZ01112	≤0.75mm²	300V	5A
4	AH-M12-0404FMR01112	AH-M12-0404MFZ01112	≤0.5mm²	110V	4A
5	AH-M12-0205FMR01112	AH-M12-0205MFZ01112	≤0.3mm²	60V	2A
6	AH-M12-0106FMR01112	AH-M12-0106MFZ01112	≤0.2mm²	60V	1A
7	AH-M12-0107FMR01112	AH-M12-0107MFZ01112	≤0.2mm²	60V	1A
8	AH-M12-0108FMR01112	AH-M12-0108MFZ01112	≤0.2mm²	60V	1A
