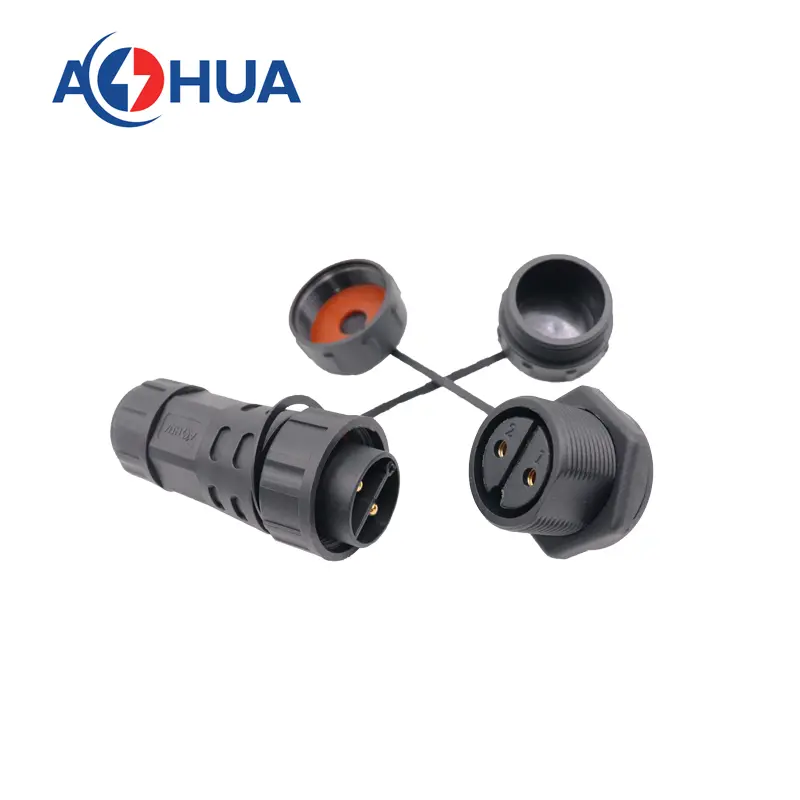

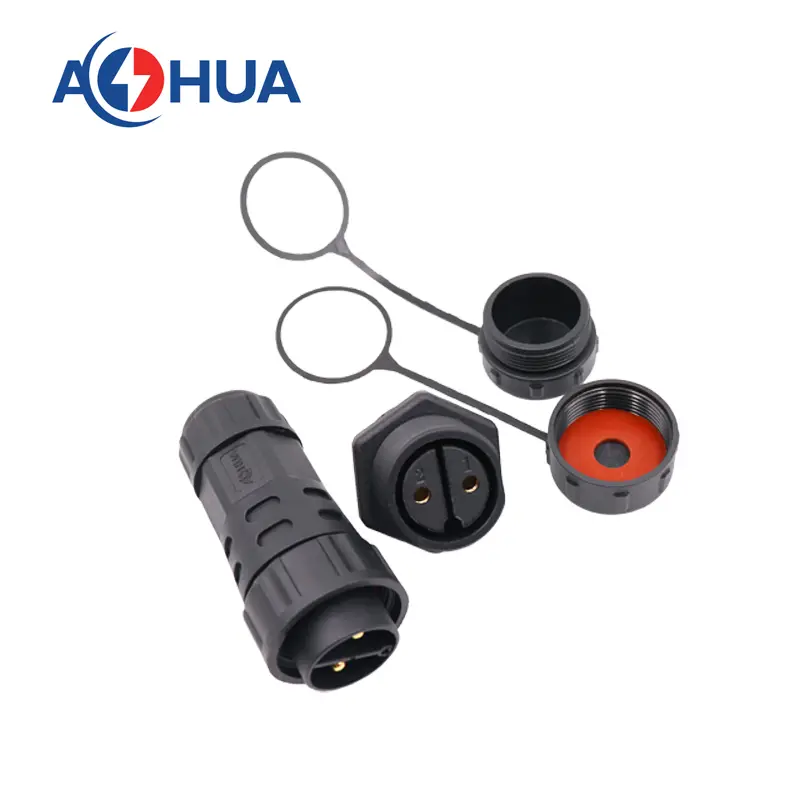

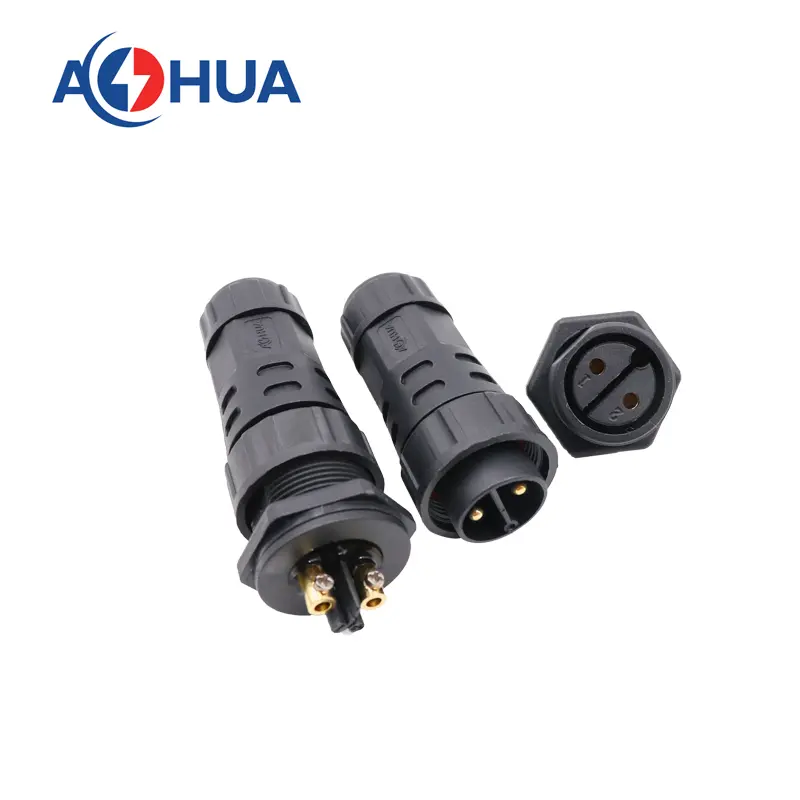

2pin M25 panel type waterproof connector
2pin M25 panel type waterproof connector
P/N: AH-M25-2502FFF01122/AH-M25-2502MMZ01122
Material: nylon
Contacts: 2pin
Type: front panel mount
Certificate: CE/ROHS/UL/TUV
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M25 Panel Type Waterproof Connector
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M25-2502FFF01122/AH-M25-2502MMZ01122 | ≤2.5mm² | 300V | 25A |
| Cable OD | 6mm-12mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP68 |
| Seal Ring | 15.6*9*7/9/10/11/12/13mm |
