5pin M15 Waterproof Cable Connector
5pin M15 Waterproof Cable Connector

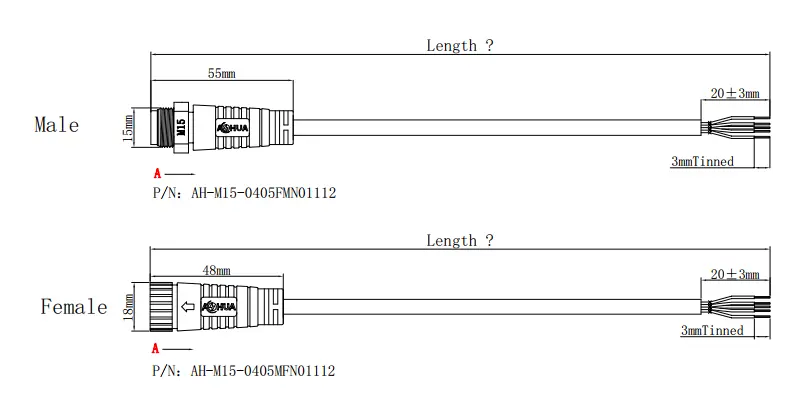

P/N: AH-M15-0405FMN01112/AH-M15-0405MFN01112
Connector: Nylon
Cable: PVC/rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

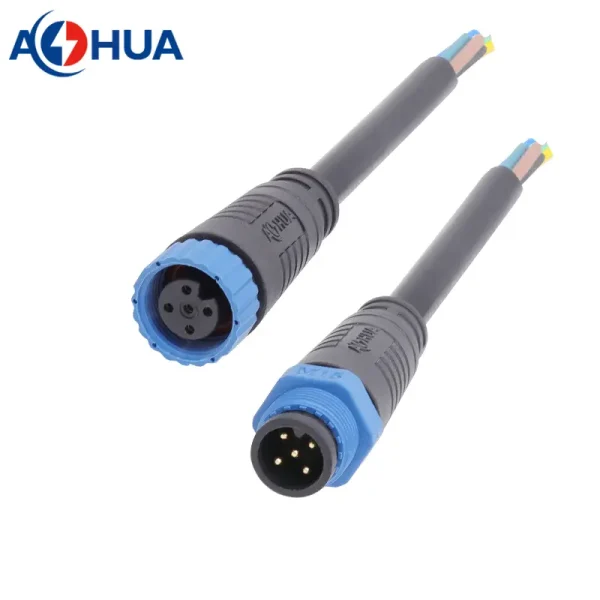

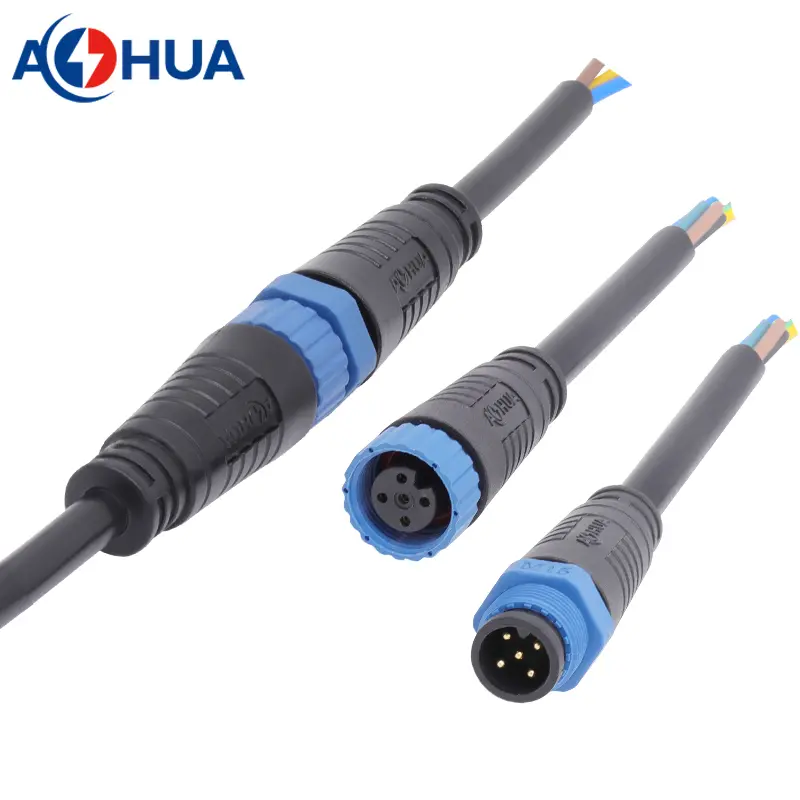

M15 Male Female Cable Connector 5pin
| PINs | Part Number | Wire Gague | Voltage | Current |
| 5 | AH-M15-0405FMN01112/AH-M15-0405MFN01112 | ≤0.5mm² | 110V | 4A |
| Cable OD | 3.5mm-8.8mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105 |
| Waterproof Level | IP67 |
Wire for choices:
| Wire Gauge | AWG | mm² |
| 5pin |
20AWG 22AWG 24AWG |
0.5mm² |
