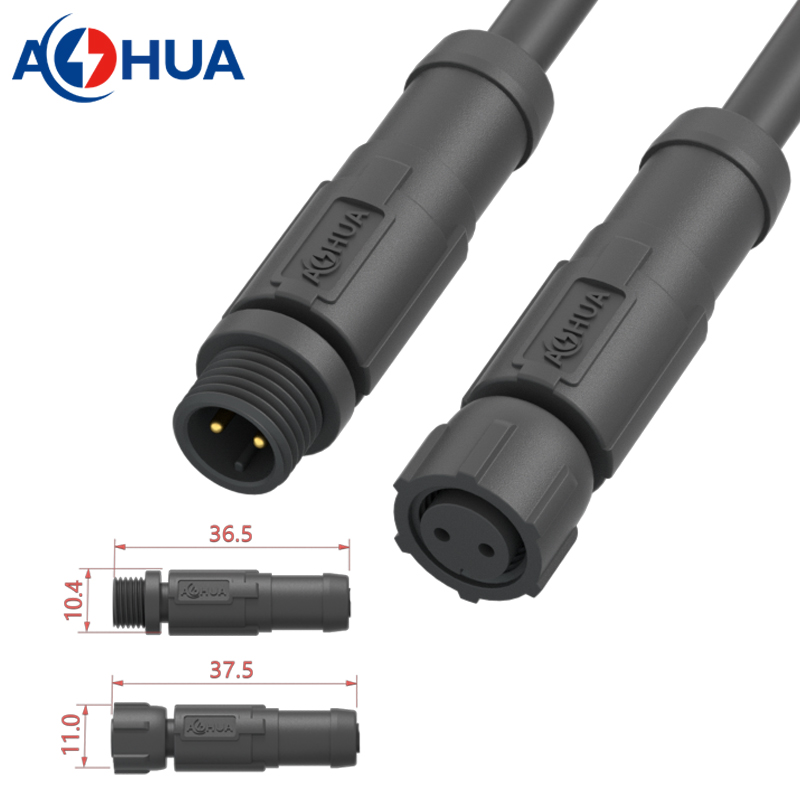

Terminal Block Nylon M8 Nylon Male and Female Mini Size Waterproof Connector 3A 2pin 22AWG 24AWG

This M8 Nylon Male and Female Mini-Size Connector is a compact and robust solution designed for reliable electrical connections in tight spaces and demanding environments. Its key feature is a waterproof IP67 rating, ensuring complete protection against dust ingress and temporary immersion in water, making it ideal for industrial automation, sensor wiring, and outdoor applications.

Crafted from high-quality nylon, the connector body offers excellent resistance to impact, corrosion, and a wide range of chemicals. The miniaturized design is a significant advantage over bulkier standard connectors, saving crucial panel space without compromising performance. It is rated for a 3-amp current and accommodates 22-24 AWG wire, perfect for signal and low-power control circuits.

The two-pin configuration with a male and female set allows for quick, secure mating, while the terminal block design enables easy wire termination without the need for specialized crimping tools. This combination of durability, compact size, and waterproof reliability makes it an essential component for modern, space-conscious electrical installations.

Highlights & Specifications

1. Connector Type: inline, over molding;
2. Connection Type: welding;
3. Docking Type: male to female, thread type;
4. Model: M8
5. Contacts: 2pin
6. Voltage Rated: 110V
7. Current Rated: 3A
8. Wire Gauge: 22AWG 24AWG
9. Cable OD: 3.-5.0mm
10. Mechanical Life: 3000 mating cycles
11. Operating Temperature: -40℃~+105℃
12. Waterproof Grade: IP67/IP68

How to order:

1. confirm the connector type;
2. specify the working ampere, wire gauge, cable length;
3. it would be better if you can create a simple drawing, which is easy for understand your requirements.
