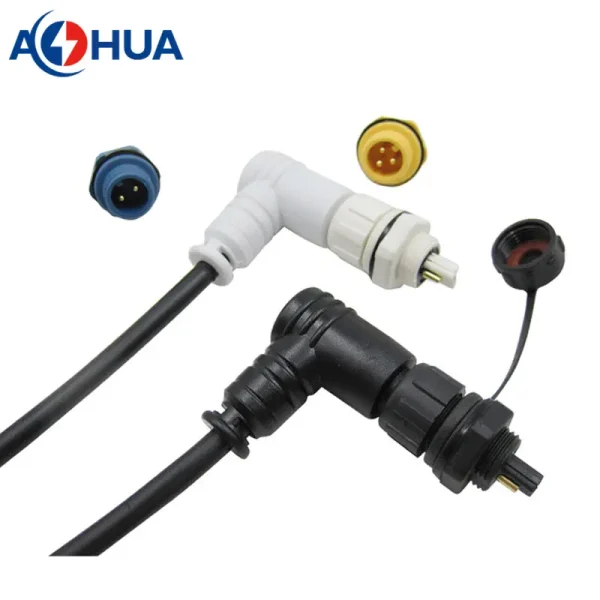

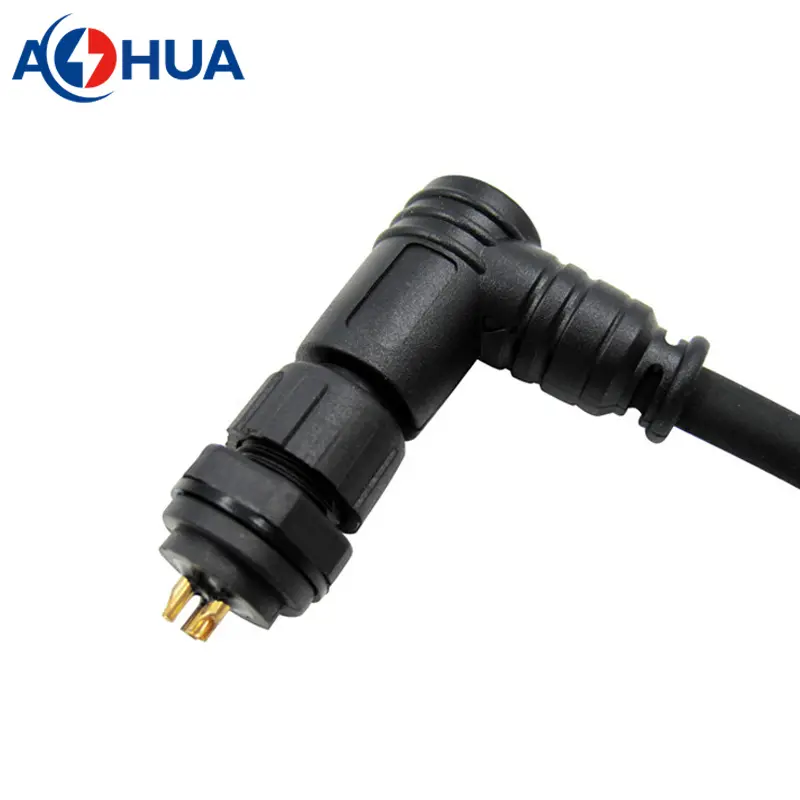

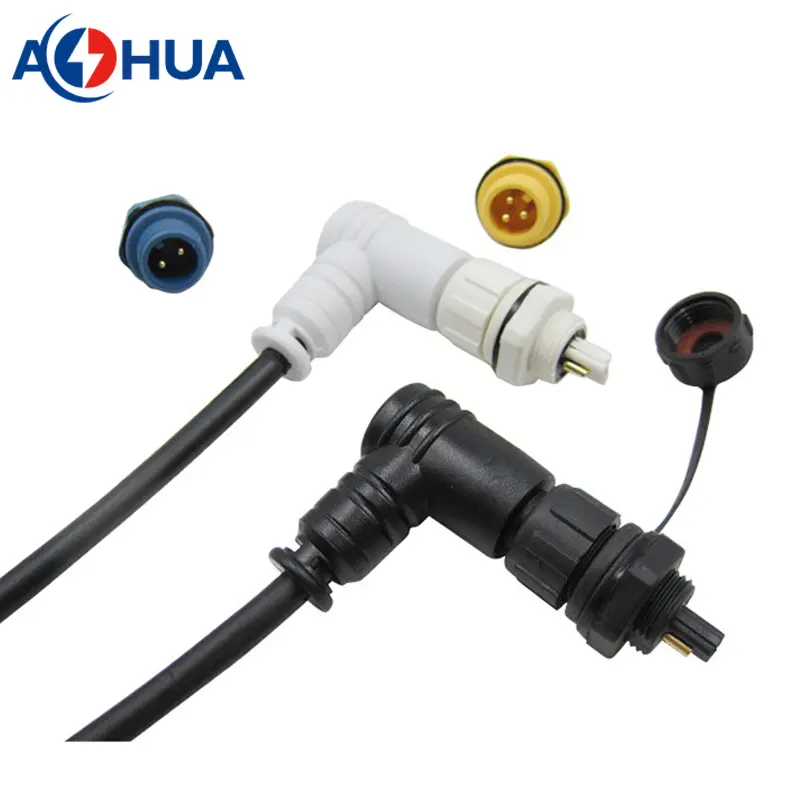

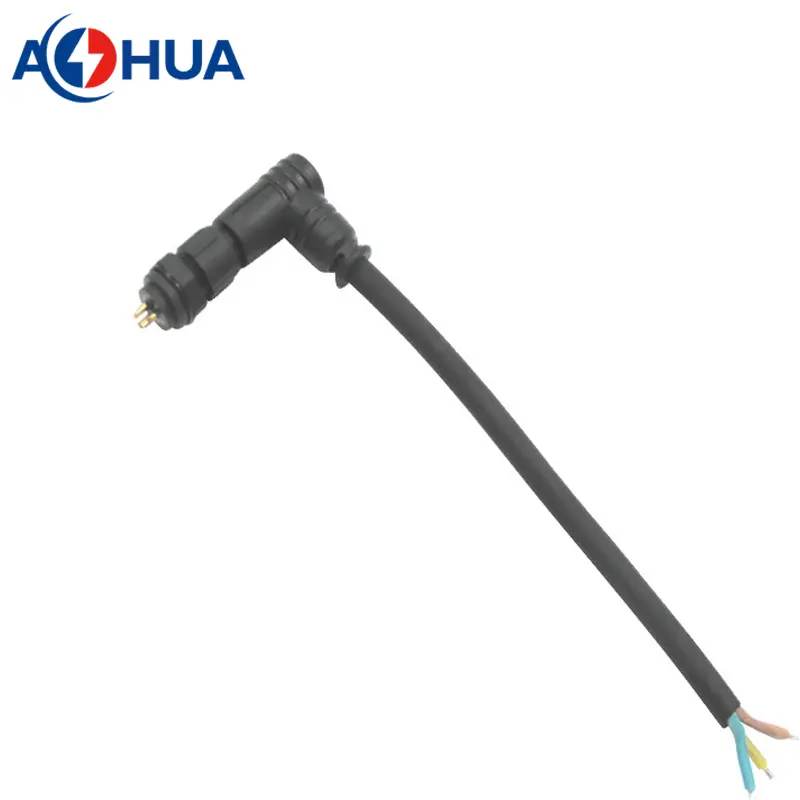

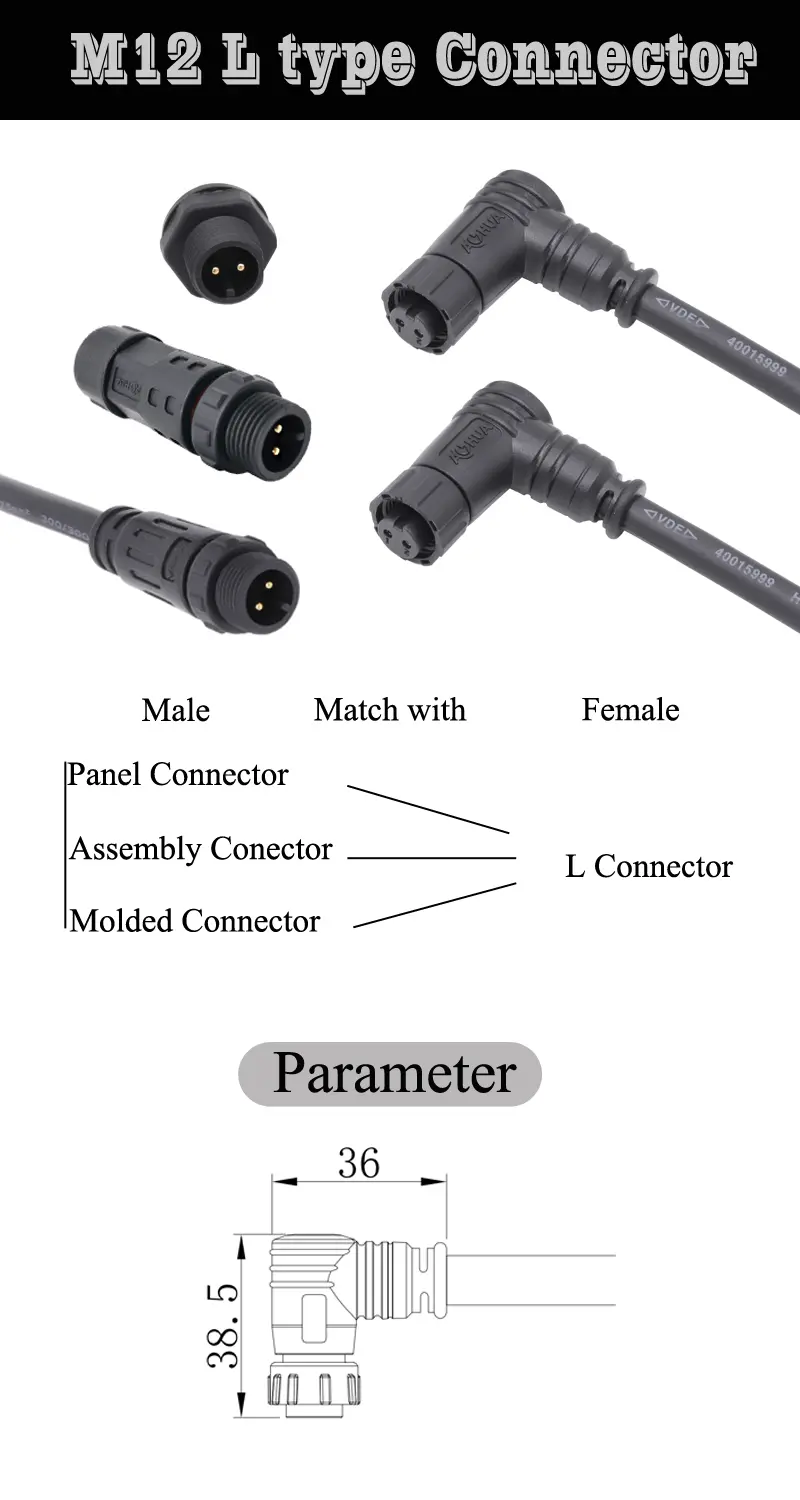

Angle 90degree M12 cable solution custom male panel female cable waterproof connector
Angle 90degree M12 cable solution custom male panel female cable waterproof connector
P/N: AH-M12-0503FML01113
Connector: Nylon
Cable: PVC /Rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| PINs | Part Number | Wire Gague | Voltage | Current |

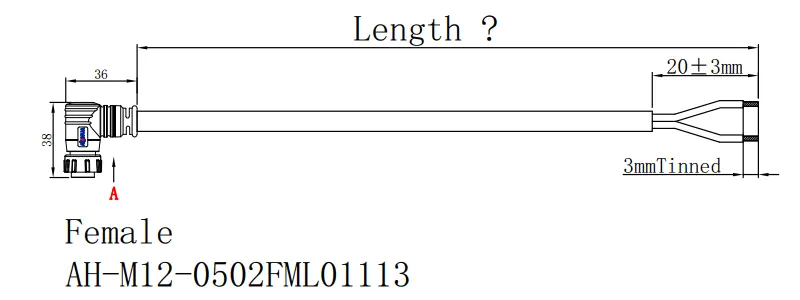

| 2 | AH-M12-0502FML01113 | ≤1.0mm² | 300V | 5A |

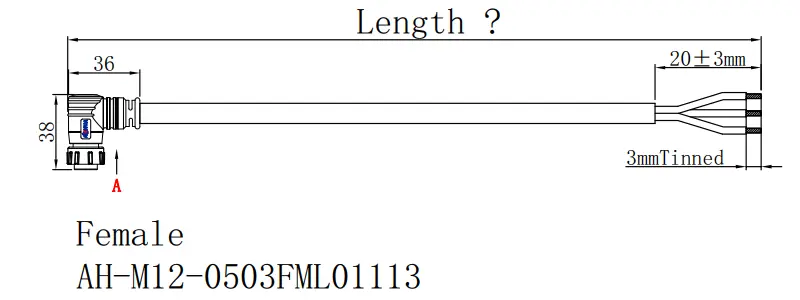

| 3 | AH-M12-0503FML01113 | ≤0.75mm² | 300V | 5A |
| 4 | AH-M12-0404FML01113 | ≤0.5mm² | 110V | 4A |
| 5 | AH-M12-0205FML01113 | ≤0.3mm² | 60V | 2A |
| 6 | AH-M12-0106FML01113 | ≤0.2mm² | 60V | 1A |
| 7 | AH-M12-0107FML01113 | ≤0.2mm² | 60V | 1A |
| 8 | AH-M12-0108FML01113 | ≤0.2mm² | 60V | 1A |
| Cable OD | 3.5mm-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP67 |
