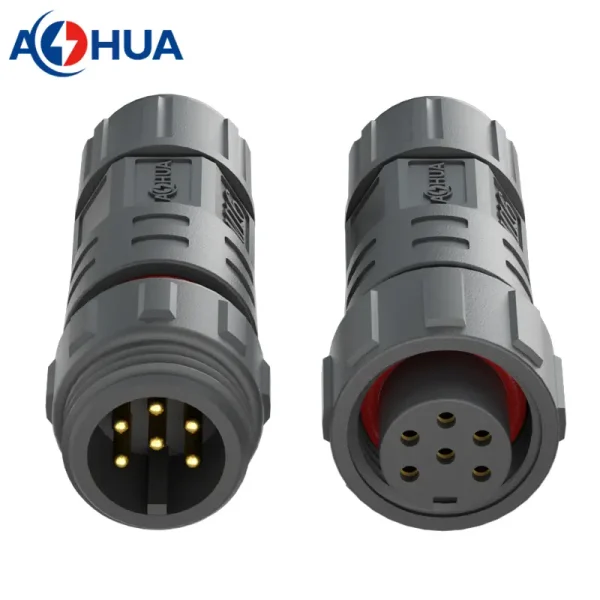

M16 6pin φ1.5mm Wire to Wire Inline Assembly Male Female Waterproof Cable Connector
M16 6pin φ1.5mm Wire to Wire Inline Assembly Male Female Waterproof Cable Connector
Model: M16
Contacts: 6pin
Conductor Size: φ1.5
Rated Voltage: 110V
Rated Current: 10A
Wire Gauge: ≤0.5mm²
Cable OD: 3-7.5mm
Plastic Material: PA66
Mechanical Life: 3000 mating cycles
Operating Temperature:-40℃~+105℃
Certificate: CE/ROHS
Waterproof Grade: IP68
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

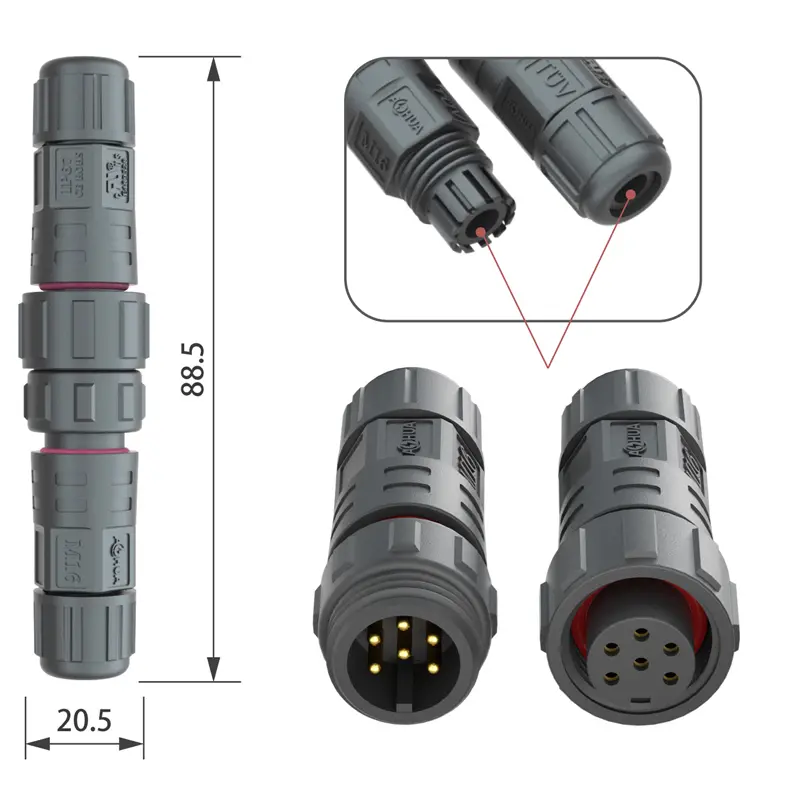

M16 6pin φ1.5mm Wire to Wire Inline Assembly Male Female Waterproof Cable Connector
Part Number
Male: AH-M16-1006FMZ01112
Female: AH-M16-1006MFZ01112
| Model | M16 |
| Contacts | 6pin |
| Conductor Size | φ1.5 |
| Rated Voltage | 110V |
| Rated Current | 10A |
| Wire Gauge | 0.5mm² |
| Cable OD | 3-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP68 |
- There are dust caps for male and female connector to protect from dust and water. You need to specify whether you need dust caps or not when order.
| AH-M16-CAP-M | AH-M16-CAP-F |
 |
 |
