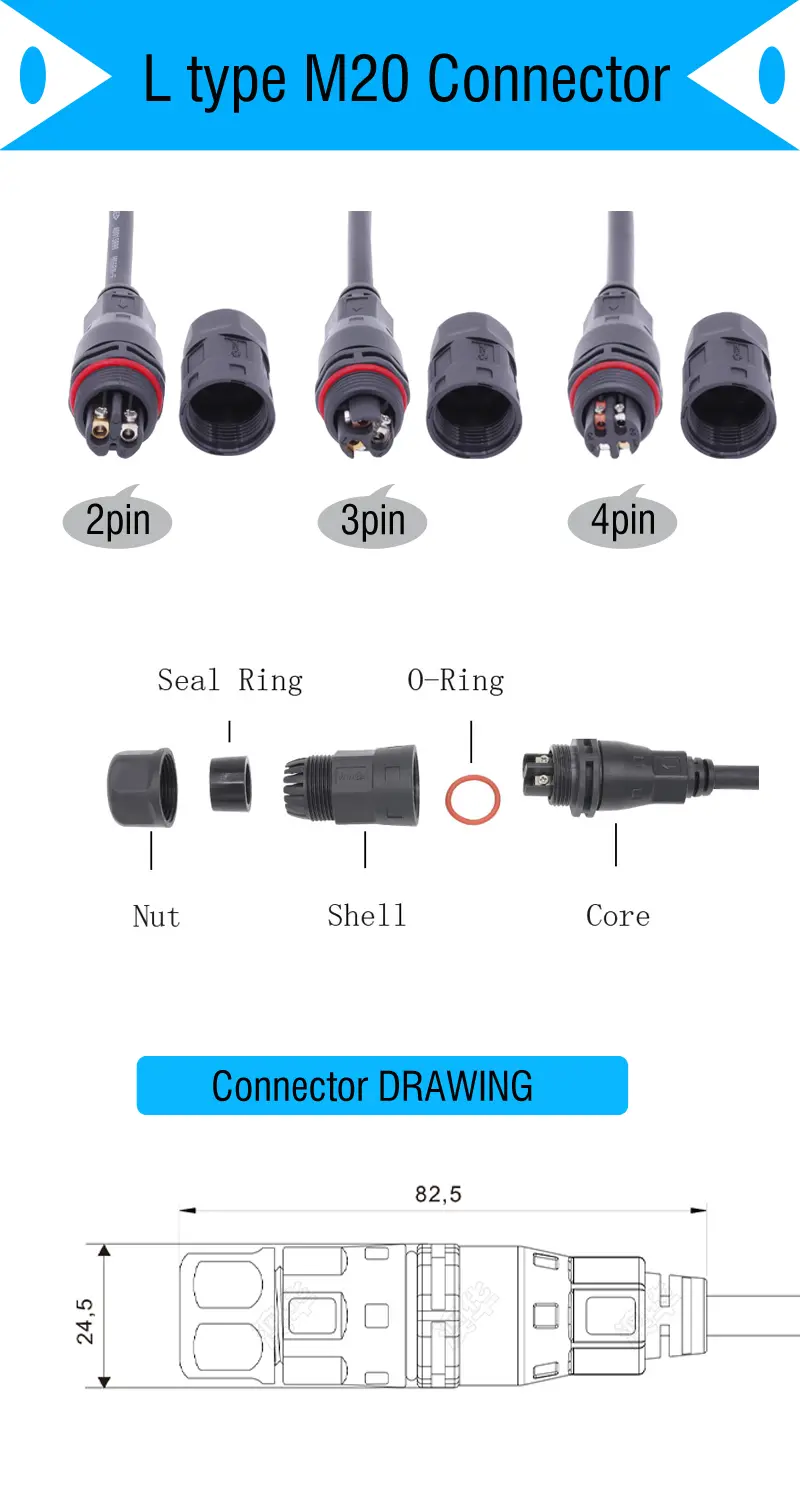

M20 outdoor driver power cable screw fixing type waterproof connector 3pin
M20 outdoor driver power cable screw fixing type waterproof connector 3pin

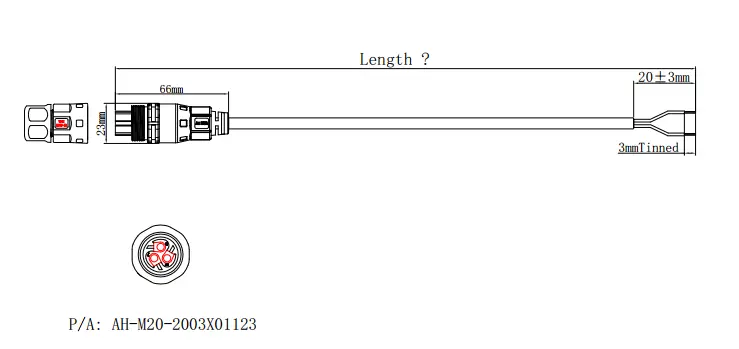

P/N: AH-M20-2003X1123
Material: nylon
Color: black
Cable material: rubber or PVC
Cable length: customize as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M20-2002X01123 | ≤1.5mm² | 300V | 20A |
| 3 | AH-M20-2003X01123 | ≤1.5mm² | 300V | 20A |
| 4 | AH-M20-1004X01123 | ≤1.0mm² | 300V | 10A |
| Cable OD | 6.0mm-10mm |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP67 |
| Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |
