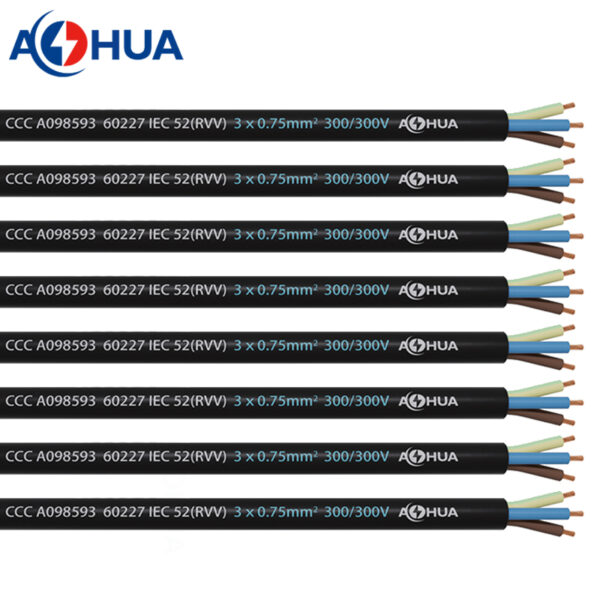

Multi Conductor Power Cord Flexible Cable IEC RVV 3 Core 0.75 mm Electrical Cable Wire Power Cable For Construction Lighting
Multi Conductor Power Cord Flexible Cable IEC RVV 3 Core 0.75 mm Electrical Cable Wire Power Cable For Construction Lighting
- 3*0.75mm² PVC electrical wire-power cord
- 200m/250/300m per roll
- Certificate: CE&ROHS
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Multi Conductor Power Cord Flexible Cable IEC RVV 3 Core 0.75 mm Electrical Cable Wire Power Cable For Construction Lighting

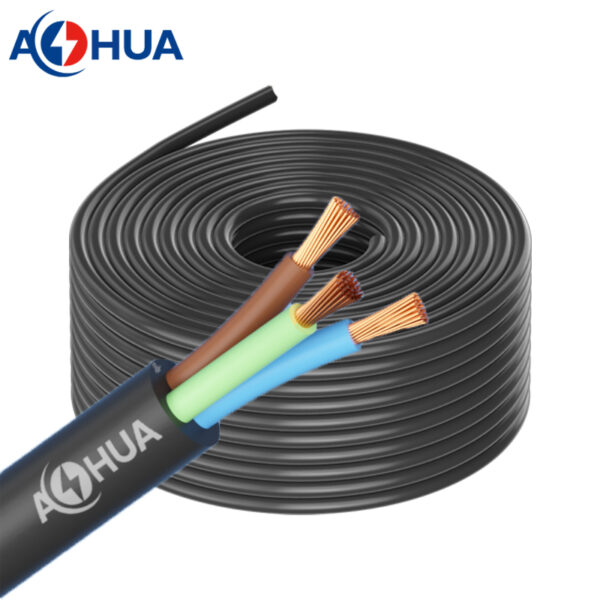

- This is flexible PVC cable in roll.
- Insulation: PVC
- Cable jacket: PVC
- Conductor: multiple stranded bare copper wire
- Rated Temperature: 70℃
- Rated Voltage: 300/300V
- Standard: GB/T 5023.5-2008, IEC 60227-5: 2003
The cable can be sold in roll or customized the length as you need. And this cable mainly used as electrical or power cord connected line or wiring in power installation, LED lamp, household appliances, electrically operated tools, construction lighting and equipment or machines inner rated voltage A.C 300/300V or below.
Technical Parameter
| Wire Size (mm²) |
Conductor Construction （No./mm） |
Insulation Thinckness (mm) |
Sheath Thickness (mm) |
Jacket OD (mm) |
Core Wire Color |
| 3*0.75 | 24/0.20 | 0.5 | 0.6 | 6.0±0.2mm | Brown, Blue, Yellow-green |
