Signal Control System 3pin Male Female Panel Mount Electrical Wire Waterproof Plug Connector M12
Signal Control System 3pin Male Female Panel Mount Electrical Wire Waterproof Plug Connector M12
- M12
- 3pin
- 2A
- 110V
- Nylon housing
- Needle: gold plated brass
- PVC or TPU cable
- Cable Length: customized as request
- Connector Type: front panel mount
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Signal Control System 3pin Male Female Panel Mount Electrical Wire Waterproof Plug Connector M12

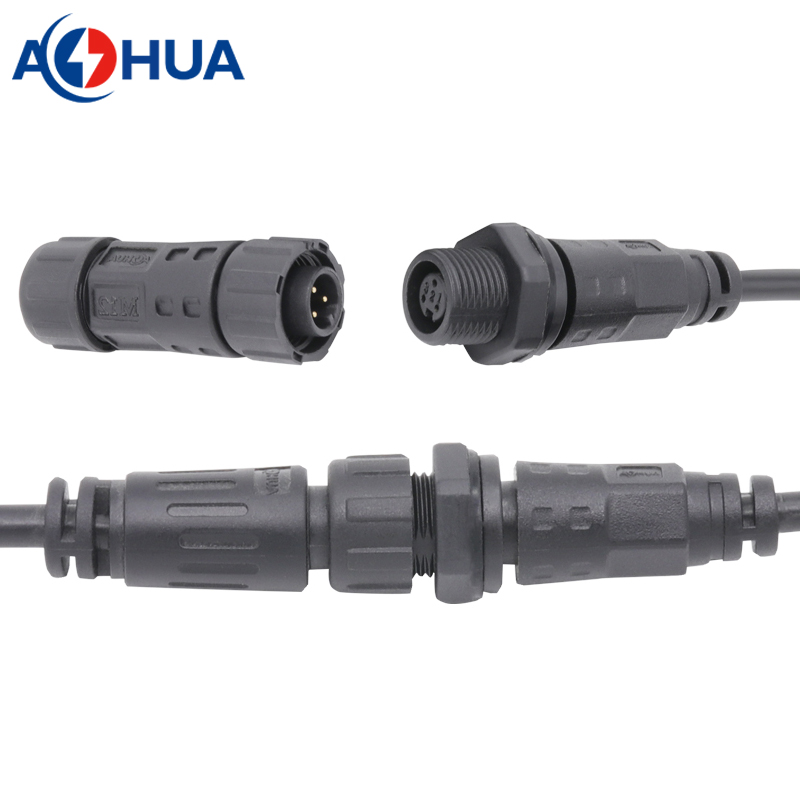

Here is the M12 3pin panel connector customized. The female is front panel mount type and molded with cable. The male can be assembly or molding type.
- Male(assembly): AH-M12-0503MMZ01112
- Male(molding): AH-M12-0503MMN01112

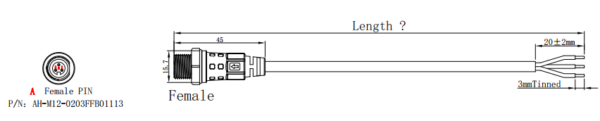

- Female: AH-M12-0503FFB01113
- Model: M12
- Contacts: 3pin
- Plastic Material: Nylon
- Conductor: gold plated brass
- Cable Material: PVC or TPU
- Cable Length: customized as required
- Waterproof Grade: IP67
| Model | M12 |
| PIN | φ0.8mm |
| Contacts | 3pin |
| Rated Voltage | 60V |
| Rated Current | 5A |
| Wire Gauge | ≤0.3mm² |
| Cable OD | 2.6-7.5mm |
| Operating Temperature | -20℃~+80℃ |
