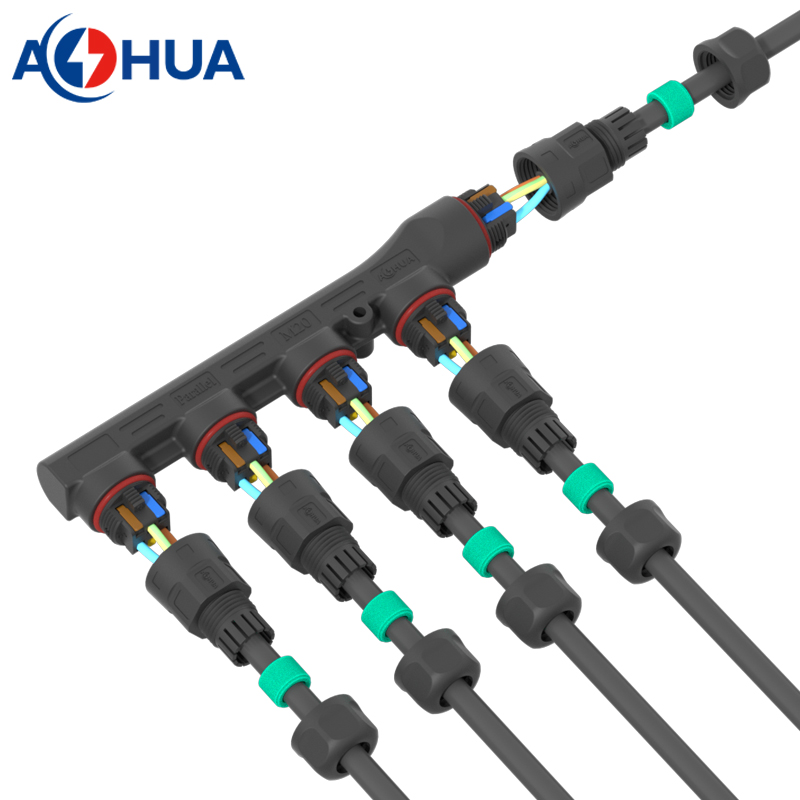

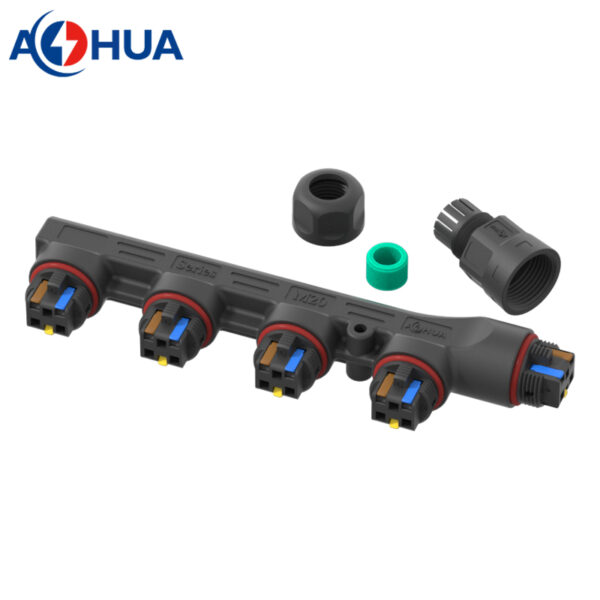

OEM ODM Bespoke Assembly 3pin Push Wire Locking 1 To 4 Splitter IP68 Outdoor Waterproof Electrical Connector

The excellent IP68 outdoor waterproof electrical connector ensure the wire connection between power and equipment safety.

Part Number

1. AH-M20-1503MFO4P132 (Parallel)
2. AH-M20-1503MFO4S132 (Series)

Parameter of IP68 outdoor waterproof electrical connector

1. contacts: 3pin
2. Voltage: 300V
3. Current: 10A
4. Wire Gauge: ≤1.5mm²
5. Cable OD: 5-10mm
6. Operating Temperature: -40℃~+105℃
7. Waterproof Grade: IP67/IP68

How to assembly IP68 outdoor waterproof electrical connector?

1. choose the suitable connector for  your cable ;
2. prepare the cable with striping in advance;
3. take off the housing (waterproof nut, seal ring and housing);
4. insert the wire through waterproof nut, seal ring, and housing;
5. open the handles and insert the bare wire into socket;
6. turn back the handles;
7. assembly waterproof nut, seal ring and housing tightly.

How to order the IP68 outdoor waterproof electrical connector?

1. choose the splitter connector as you need;
2. send the details of power and wires information to sales team for double checking;
3. we would like know the information including: working ampere, wire size and cable OD.
4. Also please confirm the connector is Parallel or Series.

How choose the seal ring for IP68 outdoor waterproof electrical connector?

1. the cable will go through the seal ring, so the seal ring inside diameter should be larger than cable OD; in order to ensure the perfect waterproof effect, the seal ring should not be too big than cable OD, meanwhile the seal ring inside diameter should be closed to the cable OD.
2. such as the cable OD is 7mm, the seal ring φ7.5mm should be perfect.

The seal ring for choices includes: φ6.5mm, φ7.5, φ8.5, φ9.5, φ10mm.
