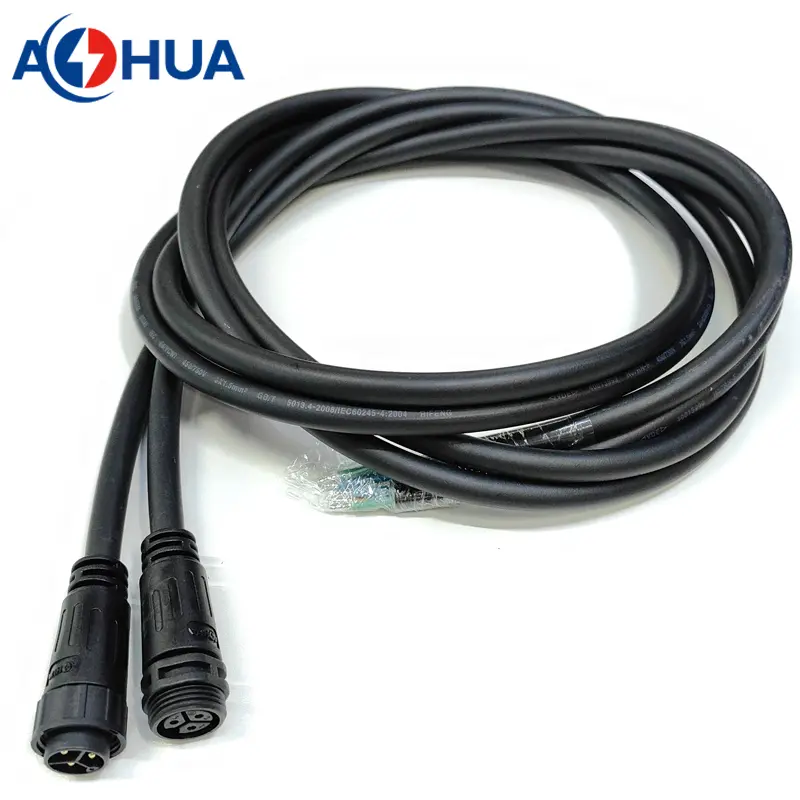

This is waterproof connector, which is M20 thread connector pre-molded with cable.

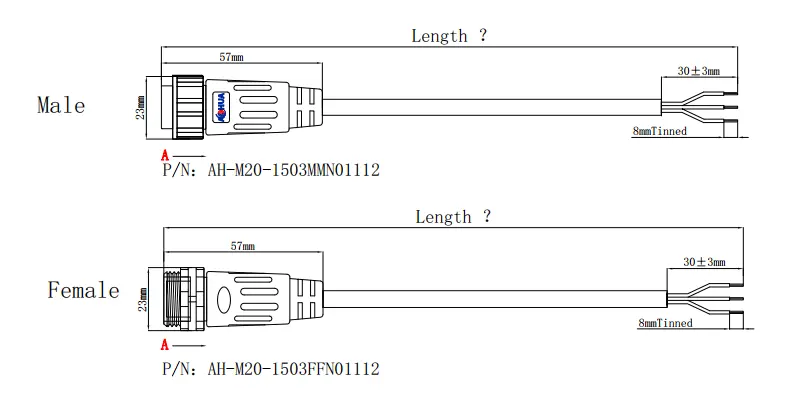

Male: AH-M20-1503MMN01112
Female: AH-M20-1503FFN01112

The male and female connector come with cable directly, so the cable can be customized as requirement.

Contacts Number: 3pin
Rated Voltage: 300V
Rated Current: 15A
Wire Gauge: 0.5-2.5mm²
Cable OD: 5-12mm
Plastic Material: Nylon
Metal Material: Gilded Brass
Cable Material: PVC/PUR/Rubber

How to order waterproof connector?

Due to this is customized cable connector, please provide details including but not limited to:

1. contacts number, eg: 3pin;
2. working ampere and voltage, eg: 10A/110V;
3. wire gauge and cable length, eg: 1.5mm², length 300mm.

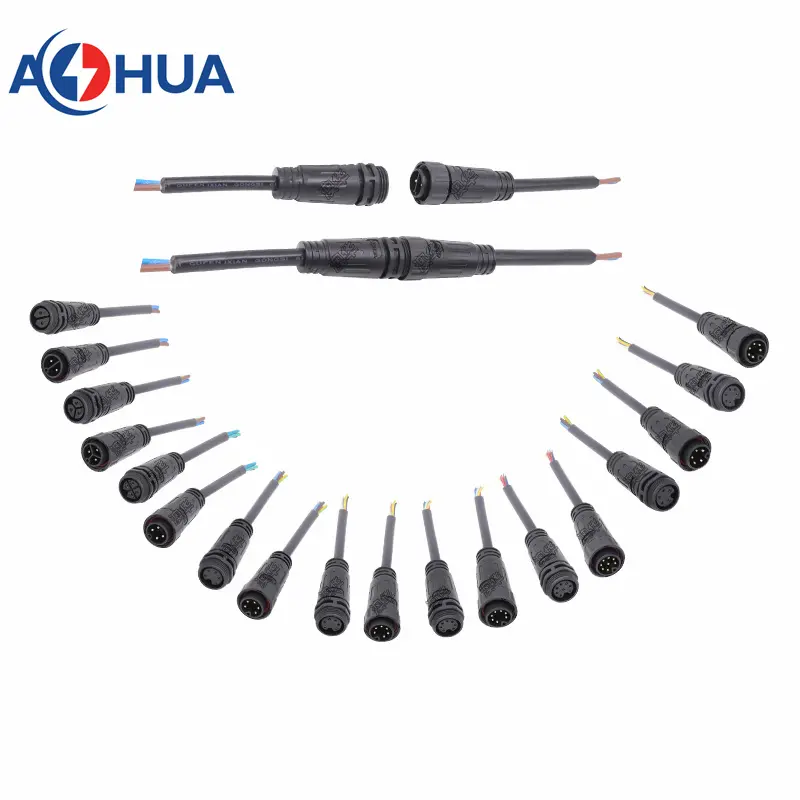

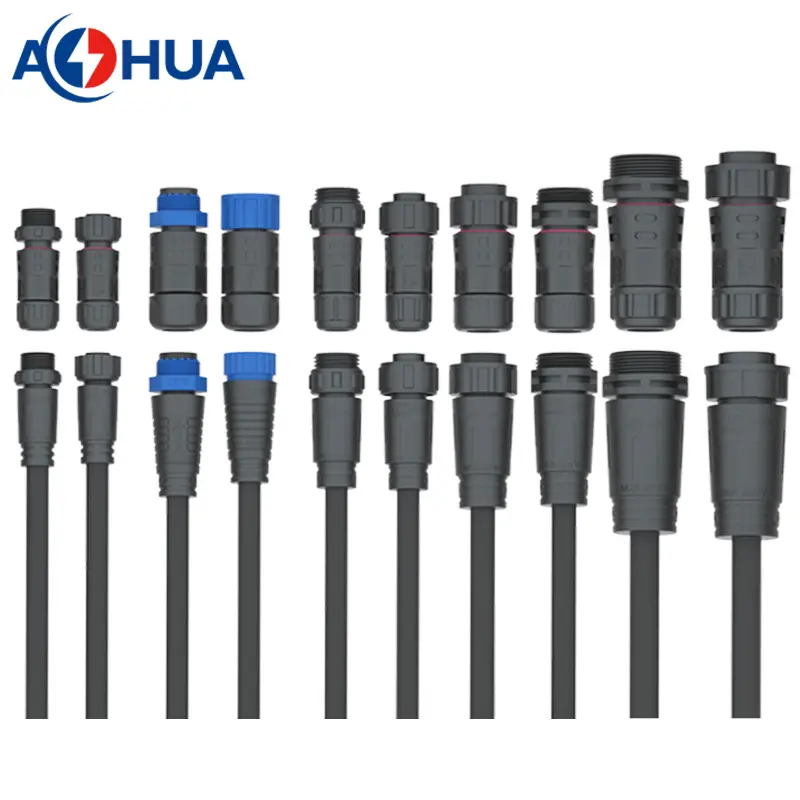

M20 waterproof connector contains 2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 2+3pin, and 2+4pin vesions.

The cable connector can be customized in different color and different cable length, no limited to the cable long but the shortest cable for molding is 100mm.

As a professional manufacturer, we also accept ODM /OEM for all wiring processing, including accept client’s material processing.

The outdoor power wire connection male-female IP67 waterproof LED light connector with 3 pins is a specialized connector designed for outdoor LED lighting applications. This connector provides a secure and waterproof connection between power wires, ensuring reliable and safe power transmission in challenging environments. Here’s a brief overview of this type of connector:

1. Waterproof Design: The IP67 rating signifies that the connector is dustproof and capable of withstanding temporary immersion in water up to a depth of 1 meter. This robust waterproof design makes it suitable for outdoor installations, protecting the electrical connection from moisture, rain, and other environmental factors.

2. Male-Female Connection: The connector consists of a male and female component that securely join together, forming a complete and reliable connection. The male connector features pins or prongs, while the female connector has corresponding sockets. This configuration ensures a proper electrical connection that can handle the power requirements of LED lighting systems.

3. 3-Pin Configuration: The 3-pin setup allows for the transmission of power, typically including the positive (+), negative (-), and ground (GND) connections. This configuration enables the transfer of electricity from the power source to the LED lighting fixture, ensuring proper operation and illumination.

4. Wide Range of Applications: The outdoor power wire connection male-female IP67 waterproof LED light connector with 3 pins is widely used in various outdoor lighting setups, such as landscape lighting, garden lighting, pathway lighting, and architectural lighting. It is also applicable in other outdoor electrical applications that require a secure and waterproof power connection.

In summary, the outdoor power wire connection male-female IP67 waterproof LED light connector with 3 pins is a reliable and durable solution for connecting power wires in outdoor LED lighting installations. Its waterproof design, male-female connection, and 3-pin configuration make it suitable for a wide range of outdoor lighting applications, ensuring a secure and efficient power connection that can withstand harsh weather conditions and environmental factors.
