PA66 Assembly Push Wire Distributor IP67 IP68 Power 10A 1 Input 2 Output 3 Pin Waterproof Connector For LED Lighting

For electrical /power even signal installation and equipment, we need a excellent waterproof connectors for against water, damp or dust.

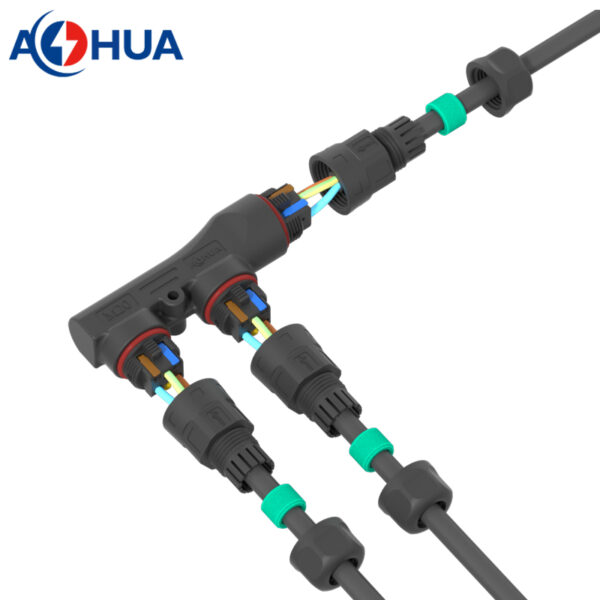

Here is the 3pin 1 input and 2 output distributor in assembly.

Materials of 3 pin waterproof connector

1. Housing: PA66
2. Conductor: PCB, copper, and stainless steel;
3. Seal ring: silicone rubber

Characteristics of 3 pin waterproof connector

1. 1 input to 2 output
2. assembly type: without cable
3. push-wire installation type
4. IP68: 24 hour waterproof testing under 1 meter deep water.

Parameters of 3 pin waterproof connector

1. Contacts: 3pin
2. Type: 1 to 2 distributor
3. Voltage Rated: 300V
4. Current Rated: 10A
5. Wire Gauge: ≤1.5mm²
6. Cable OD: 5-10mm
7. Operating Temperature: -40℃~+105℃
8. Waterproof Grade: IP67/IP68

Part number:

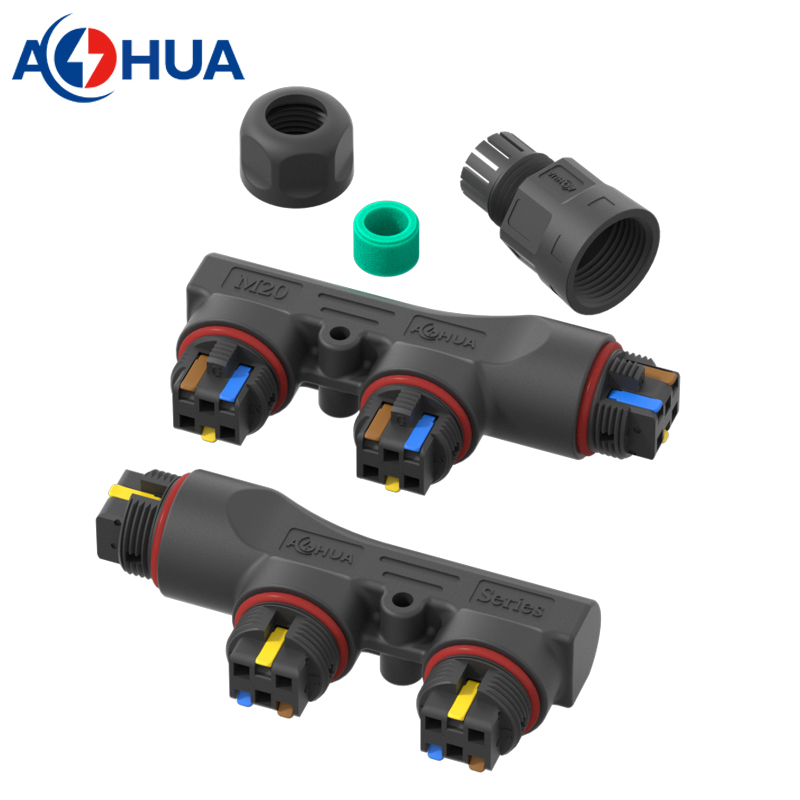

• Parallel: AH-M20-1503MFO2P132
• Series: AH-M20-1503MFO2S132

How to order 3 pin waterproof connector?

1. confirm the connector of you need, such as 3pin, assembly, 1 input and 2 output
2. what is the working ampere, wire size, and cable OD?
3. connection is Parallel or Series
4. how many quantity?

Send all detail requests to AOHUA sales team, we will get back to  you with price within 12 hours.
