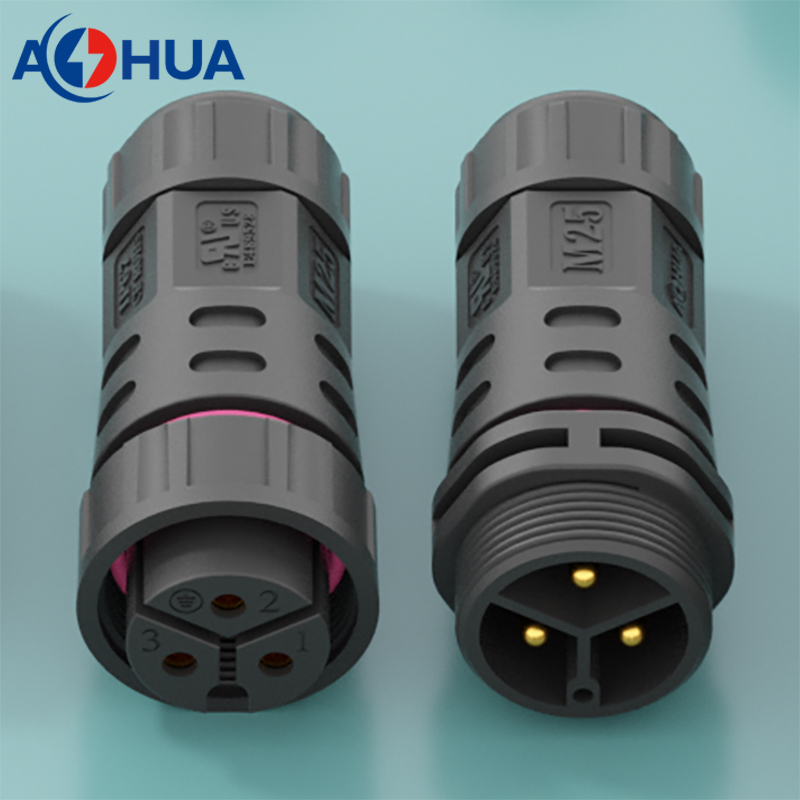

PA66 Gold Plated Copper 300V UL SAA TUV Male To Female IP68 25A 3pin Waterproof Plug Thread Type

Engineered for demanding environments, this Male to Female 3-pin IP68 Waterproof Plug Connector sets the industry standard for reliability and performance. Constructed from high-grade PA66 material, the housing offers exceptional impact resistance, durability, and protection against UV radiation, oils, and chemicals, ensuring long-term operation in the toughest conditions.

The heart of this connector lies in its superior electrical components. Featuring gold-plated copper terminals, it guarantees minimal voltage drop, superior conductivity, and exceptional corrosion resistance, maintaining a stable and efficient 25A power connection. Rated for 300V, it is built to handle significant electrical loads with unwavering safety.

Safety and compliance are paramount. This connector is certified by UL, SAA, and TUV, meeting rigorous international standards for electrical safety and performance. The standout feature is its IP68 waterproof rating, achieved through a precision-engineered threaded coupling system and high-grade sealing rings. This creates a completely dust-tight and waterproof seal, capable of withstanding prolonged immersion in water, making it ideal for marine, agricultural, and outdoor industrial applications.

The robust threaded-type connection ensures a secure, vibration-proof lock, preventing accidental disconnection. Designed for ease of use, the plug and socket system allows for quick and secure mating, saving valuable time during installation and maintenance.

Ideal for: Outdoor lighting, industrial machinery, water pumps, agricultural equipment, marine and RV power systems, and any application where moisture, dust, and reliability are critical concerns. Invest in a connector that guarantees power, safety, and peace of mind.

Highlights

• Connector Type: inline, assembly;
• Docking Type: thread type;
• Connection Type: screw fixing type;

Specifications

1. Model: M25
2. Contacts: 3pin
3. Certificate: UL, SAA, TUV;
4. Voltage Rated: 300V
5. Current Rated: 25A
6. Wire Size: ≤2.5mm²
7. Cable OD: 7-13mm
8. Mechanical Life: 3000 mating cycles;
9. Operating Temperature: -40℃~+105℃
10. Waterproof Grade: IP68
