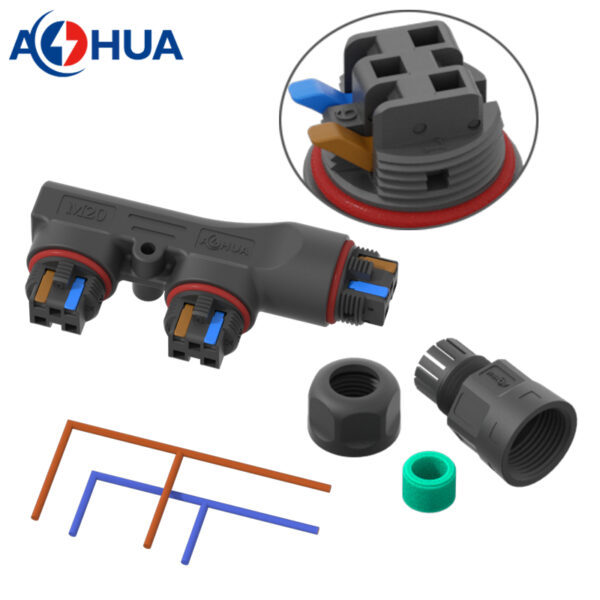

Parallel 2way 2pin M20 Push Wire Locking Assembly F Type Distributor Box Waterproof Electrical Connector Terminal 10A

Part Number: AH-M20-1502MFO2P132

This Parallel 2-way, 2-pin M20 connector is a robust F-type distributor box designed for efficient and secure electrical connections. Featuring user-friendly push-wire technology for fast, tool-free installation, it ensures a reliable contact rated for up to 10A. The assembly is housed in a durable, IP67-rated waterproof casing with a secure M20 threaded locking ring, making it an ideal solution for industrial control systems, machinery, and outdoor applications where dust and moisture resistance is critical.

Highlights

• Push wire locking: fast connection in field assembly;
• PA66 Plastic: excellent mechanical strength and stiffness;
• Parallel (Series for option)

Specifications

1. Contacts: 2pin
2. Voltage Rated: 300V
3. Current Rated: 10A
4. Wire Size: ≤1.5mm²
5. Cable OD: 5-10mm
6. Operating Temperature: -40℃~+105℃

How to order?

1. confirm the connector;
2. specify working ampere, wire size and cable OD;
