Parallel Series 2pin 2way 10A Power Push Locking Welding Assembly Over Molding Male Female Waterproof Power Splitter Connector
Parallel Series 2pin 2way 10A Power Push Locking Welding Assembly Over Molding Male Female Waterproof Power Splitter Connector
- F type splitter: power wire waterproof connector 2pin;
- 1 input to 2, 3, 4 output socket;
- Push locking input, solder type assembly or over molding mating connector;
- Voltage Rated: 300V
- Current Rated: 10A
- Wire Size: ≤1.5mm²
- Cable OD: 5-10mm
- Wire Diagram: Parallel or Series;
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Parallel Series 2pin 2way 10A Power Push Locking Welding Assembly Over Molding Male Female Waterproof Power Splitter Connector

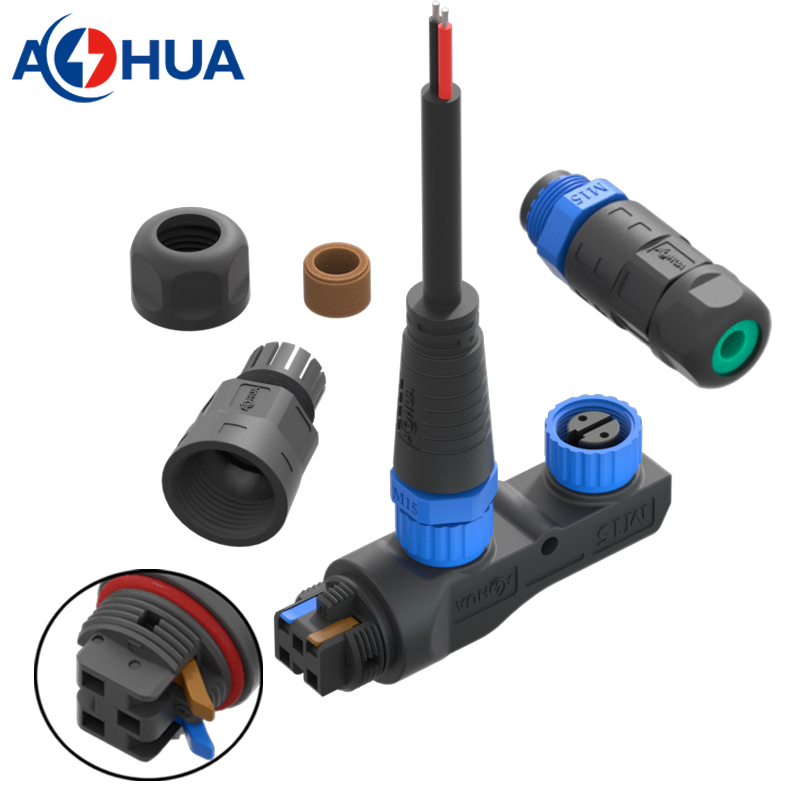

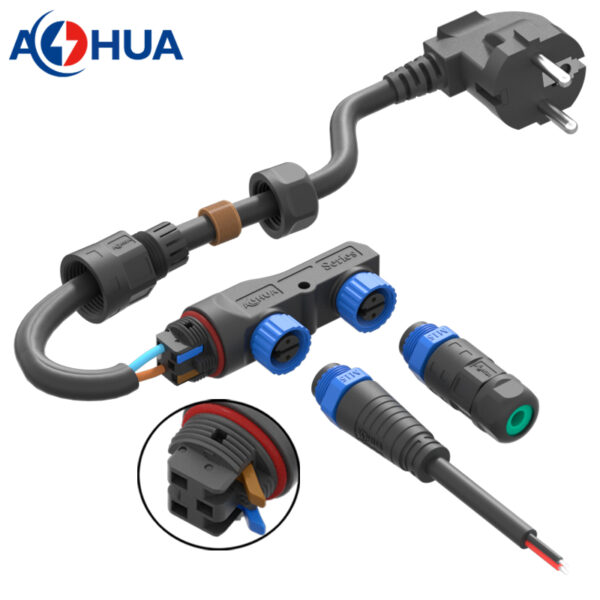

This is distributor box type waterproof splitter connector in F type. The input is push locking type terminal block for wiring installation, which is very easy for operation. And the branch socket is female, the mating male can be assembly type or over molding type: the assembly connector is standard M15 connector in the market, and it is soldering for wiring operation; the over molding connector is the same M15 screw threads but just molding with cable directly.
Highlights
- assembly type connector is favorable for field operation;
- push locking is very easy for the power input cable bare wire installation;
- Parallel or Series can be multi- options for your circuits.
Specifications
- Contacts: 2pin only ;
- Connector Type: F splitter, male to female ;
- Connection Type: push locking, soldering;
- Docking Type: male to female pluggable, screw threads;
- Wire Diagram: Parallel or Series ;
- Assembly or over molding type;
- Plastic material: PA66
- Conductor: gold plated copper, PCB panel ;
- Voltage Rated: 300V;
- Current Rated: 10A;

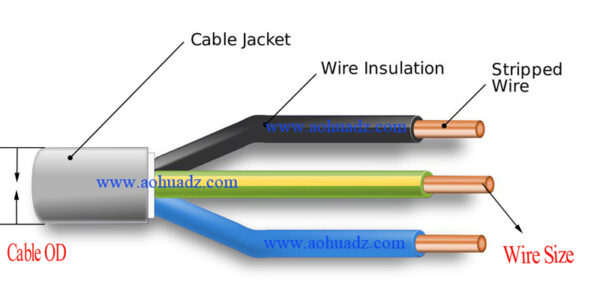

- Wire Size: 0.5/0.75/1.0/1.5mm²；or 16/18/20/22AWG;
- Cable OD: 5-10mm
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 3000 mating cycles
- Waterproof Grade: IP67/IP68
Parallel
- 2 sockets: AH-M15-1002MFO2PP132
- 3 sockets: AH-M15-1002MFO3PP132
- 4 sockets: AH-M15-1002MFO4PP132
Series
- 2 sockets: AH-M15-1002MFO2SS132
- 3 sockets: AH-M15-1002MFO3SS132
- 4 sockets: AH-M15-1002MFO4SS132
How to order this solution?
The assembly type is standard connector, but the over molding type is customized as the requirement from you. So please tell us:
- connector type you need, such as assembly type or over molding;
- socket numbers, such as 2 branch socket, or 3 branch sockets;
- connection type, such as push locking or screw fixing type;
- wire diagram, such as Parallel or Series;
- working ampere, such as 5A or 8A;
- wire size, such as 0.75mm² or 18AWG;
- cable OD or cable length, such as OD=7mm, or 500mm;
