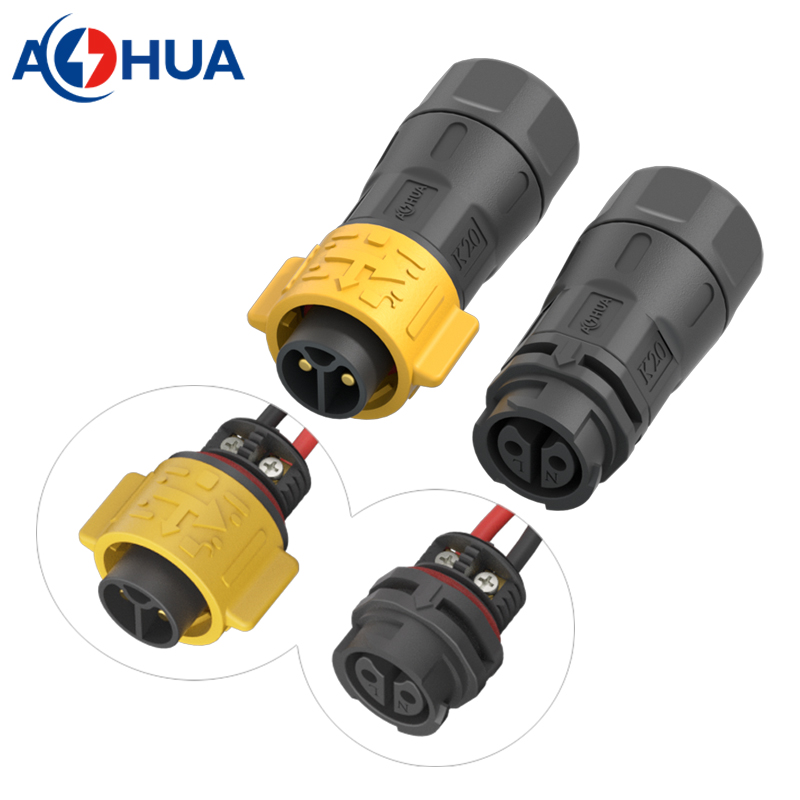

Power Wire Self Locking Screw Lugs Assembly 2pin Male Female Pluggable Waterproof IP68 Connector CE ROHS

• Male: AH-K20-2002MMZ01222
• Female: AH-K20-2002FFZ01222

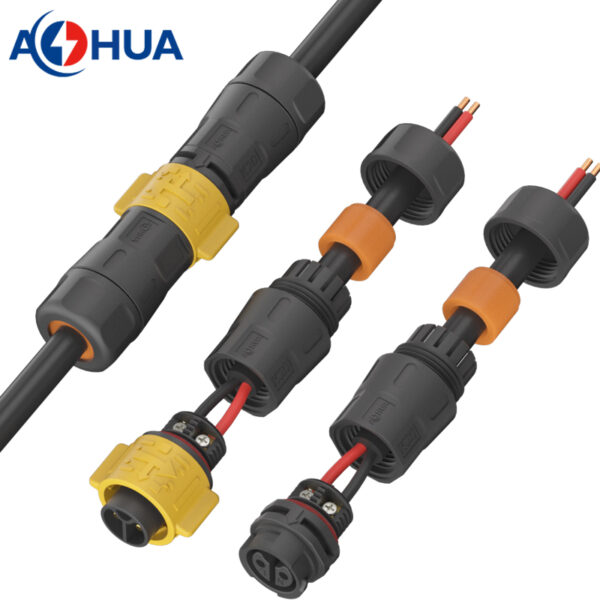

1. This is assembly type connector that will be coming without cable.
2. The male to female docking is self locking type, which is no threads.
3. There are screws for wiring operation, it only need a fine screwdriver for wire assembly.

Highlight & Parameter

• Model: K20
• Contacts: 2pin (suitable for 2 cores cable)
• Voltage Rated: 300V
• Current Rated: 20A
• Wire Gauge: ≤2.5mm²
• Cable OD: 6-13mm
• Mechanical Life: 1000 mating cycles
• Operating Rating: -40℃~+105℃
• Waterproof Grade: IP67/IP68
• Certificate: CE, ROHS

1. Plastic Material: PA66
2. Conductor: gold plated copper
3. Seal ring: silicone rubber

How to choose the right waterproof connector for your cable solution?

• Understand environment demands. Such as: IP rating, temperature range, and so on.
• Match electrical requirements. Such as voltage /current and etc.

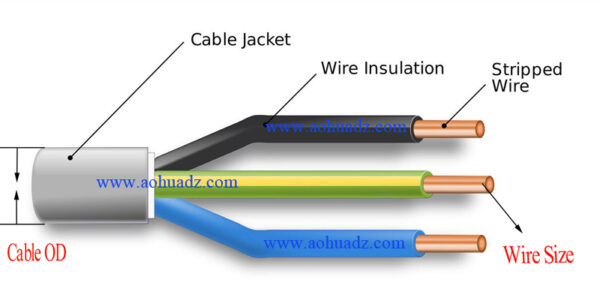

• Mechanical compatibility. Such as cable wire gauge/cable OD and etc.
• Certificate demands. Such as CE&ROHS is enough or require UL TUV certificate.

What we want to know before you order.

1. working ampere that will be carried on the connector. such as 10A or 15A;
2. wire gauge that will be connected to the connector. such as 1.0mm² or 2.5mm²；
3. cable OD of the cable you will use. That will be confirmed it whether can go through the seal ring.
4. certificate demands you require.
