PVC Injection Waterproof Panel Mount 2 Pin Electrical Wire Connector With Cable 2.5mm 1.5mm
PVC Injection Waterproof Panel Mount 2 Pin Electrical Wire Connector With Cable 2.5mm 1.5mm
Male: AH-M23-1602MMP01131
Female: AH-M23-1602FFP01131
Contacts: 2 pin
Material: PVC
Color: black / white
Voltage: 250V
Current: 16A
Wire Gauge: ≤2.5mm²
Cable OD: 8-12mm
Metal: copper
Cable material: PVC/PUR/Rubber
Cable length: customized as specified
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
PVC Injection Waterproof Panel Mount 2 Pin Electrical Wire Connector With Cable 2.5mm 1.5mm

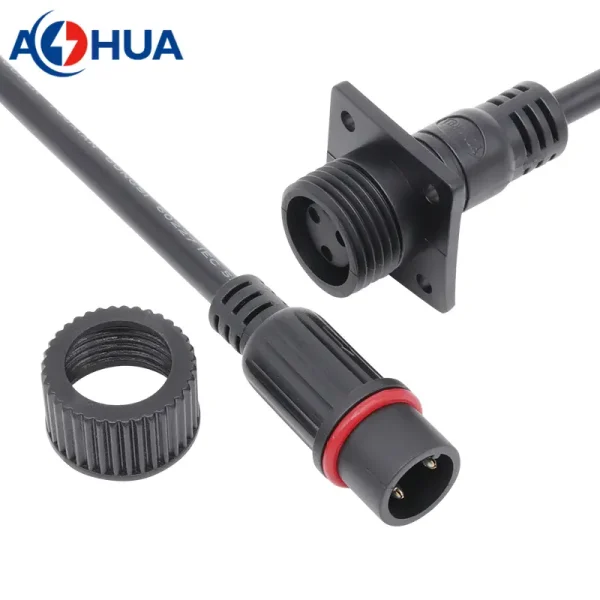

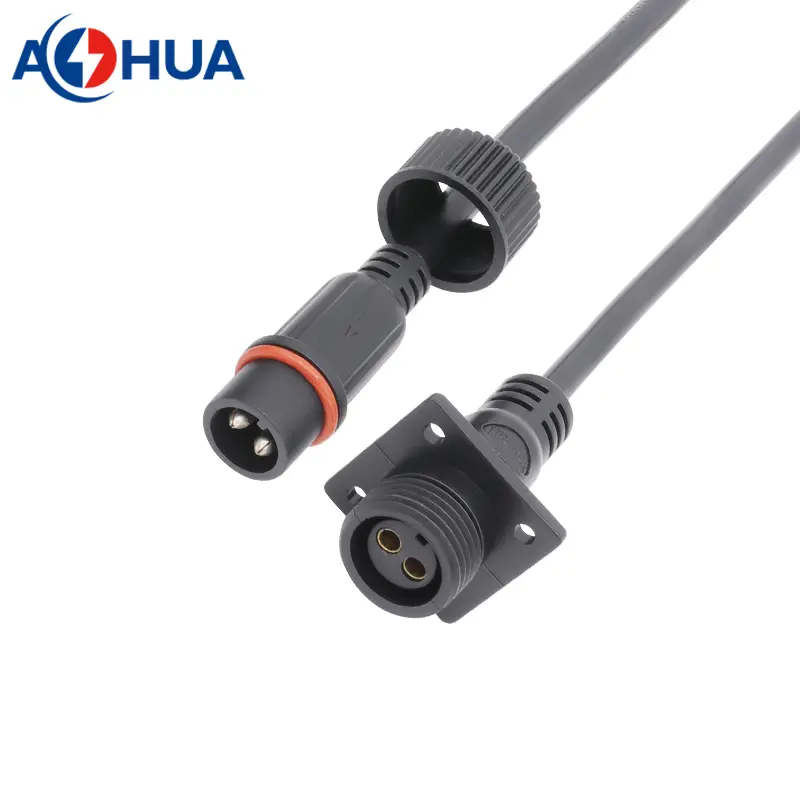

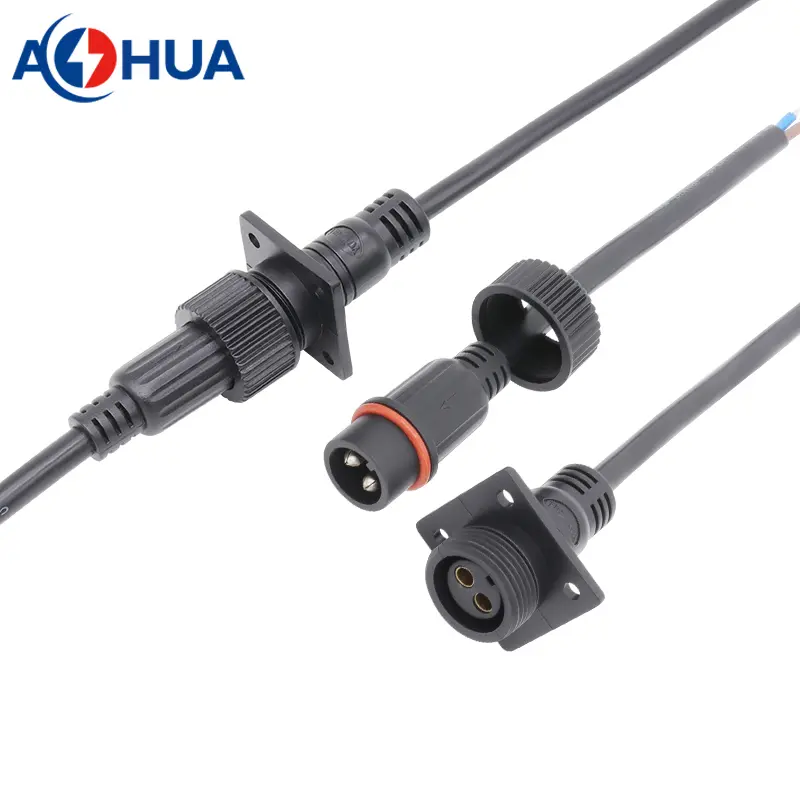

M23 Panel Mount Waterproof Connector
|
This connector is M23 screw thread. This is PVC material injection plug and socket, which is male in-line type plug to female panel mounted sockets. Plastic Material: PVC Metal Material: copper Color: routine black or white, it can customize different color. |
 |
 |
Male: AH-M23-1602MMP01131 Voltage: 250V Current: 16A Wire Gauge: 2.5mm², 2.0mm², or 14AWG, 16AWG. Cable length: shortest 100mm, no longest limited. |
|

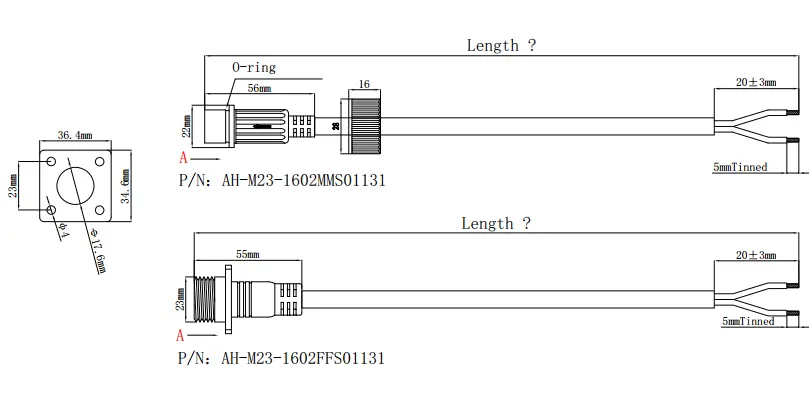

The male connector is in-line type, molded with cable directly. The female connector is panel mount, it mean that the cable will go through the panel hole and it need lag spike to fix up. In this way, please note that the panel hole diameter and panel thickness is important. The panel hole diameter for recommadation is φ17.6mm. The lag spike is φ4mm. |
 |
