Quick Connection Locking Panel Type Waterproof Male Female Extension 20 22 24AWG 12V 24V DC Connector 2.1 2.5 Shenzhen Factory

Here is the description of dc connector in AOHUA factory.

1. plastic: PVC
2. conductor: copper
3. cable: PVC
4. cable length: customized as required
5. color: white, black, transparent
6. DC metal: 5.5*2.1 /5.5*2.5

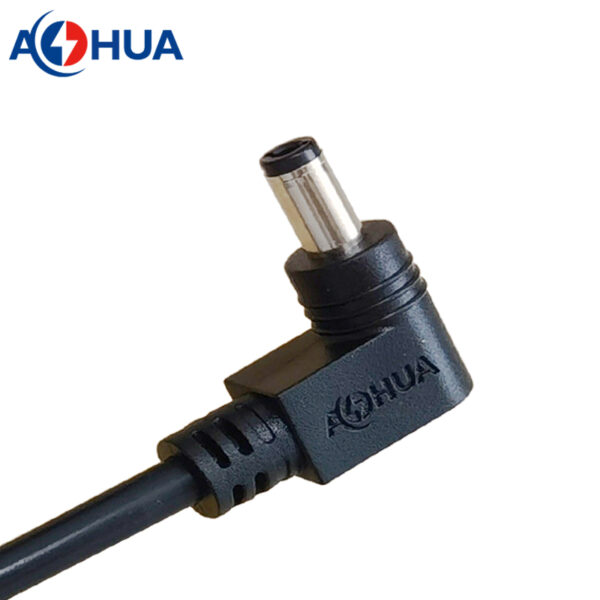

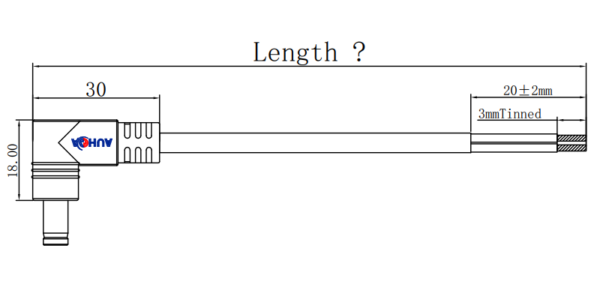

M11 angle dc connector

This is the angle dc male connector, which is suitable the power 12V, 24V, 36V or 60V. It can be made with wire 18AWG/20AWG/22AWG/24AWG. It is mating the inline M11 female connector

1. P/N: AH-M11-0402MFL01311
2. Contacts: 2pin
3. Voltage Rated: 60V
4. Current Rated: 5A
5. Wire Gauge: ≤0.75mm²
6. Cable OD: 3.5-5.5mm
7. Conductor inner diameter: 5.5*2.1/5.5*2.5mm
8. Not waterproof type
9. Color: black or white in general, or customized.

M11 inline male female DC connector

This is inline type male female quick connecting connector, which is suitable the power 12V, 24V, 36V or 60V. It can be made with wire 18AWG/20AWG/22AWG/24AWG.

1. P/N: male(AH-M11-0402MFD01311); female(AH-M11-0402FMD01311）
2. Contacts: 2pin
3. Voltage Rated: 60V
4. Current Rated: 5A
5. Wire Gauge: ≤0.75mm²
6. Cable OD: 3.5-5.5mm
7. Conductor inner diameter: 5.5*2.1/5.5*2.5mm
8. Not waterproof type
9. Color: black or white in general, or customized.

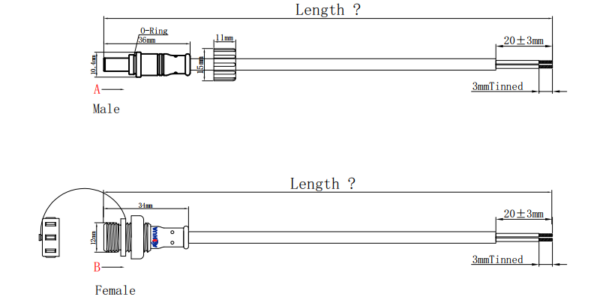

M12 panel type male female DC connector

This is panel mount type male female quick connecting connector, which is suitable the power 12V, 24V, 36V or 60V. It can be made with wire 18AWG/20AWG/22AWG/24AWG.  The male panel is rear panel mount type, its cable will go through the panel hole when operation.

1. P/N: male(AH-M11-0502MFD01111); female(AH-M11-0502FMD01111）
2. Contacts: 2pin
3. Voltage Rated: 60V
4. Current Rated: 5A
5. Wire Gauge: ≤0.75mm²
6. Cable OD: 3.5-5.5mm
7. Conductor inner diameter: 5.5*2.1/5.5*2.5mm
8. Waterproof type: IP65
9. Color: black or white in general.

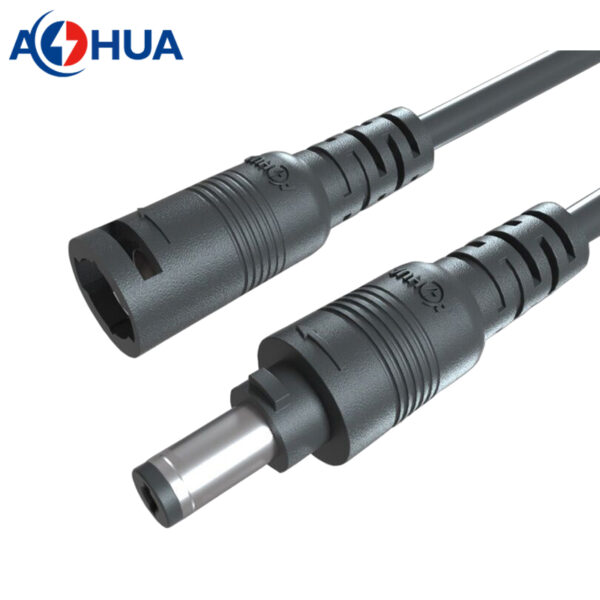

M13 quick locking type male female DC connector

This is locking type male female quick connecting connector, which is suitable the power 12V, 24V, 36V or 60V. It can be made with wire 18AWG/20AWG/22AWG/24AWG.

1. P/N: male(AH-M13-0502MFD01211); female(AH-M13-0502FMD01211）
2. Contacts: 2pin
3. Voltage Rated: 60V
4. Current Rated: 5A
5. Wire Gauge: ≤0.75mm²
6. Cable OD: 3.5-5.5mm
7. Conductor inner diameter: 5.5*2.1/5.5*2.5mm
8. Not Waterproof type
9. Color: black or white in general.

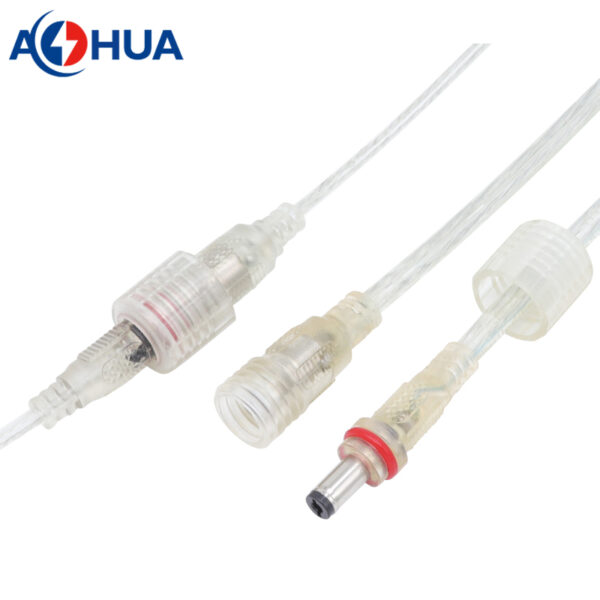

M13 waterproof type male female DC connector

This is waterproof type male female screw thread docking inline connector, which is suitable the power 12V, 24V, 36V or 60V. It can be made with wire 18AWG/20AWG/22AWG/24AWG.

1. P/N: male(AH-M13-0502MFD01111); female(AH-M13-0502FMD01111）
2. Contacts: 2pin
3. Voltage Rated: 60V
4. Current Rated: 5A
5. Wire Gauge: ≤0.75mm²
6. Cable OD: 3.5-5.5mm
7. Conductor inner diameter: 5.5*2.1/5.5*2.5mm
8. Waterproof type: IP65
9. Color: black or white or transparent in general.

How to order DC connector?

1. confirm the connector type;
2. create a sketch or simple drawing for what you need;
3. specify the working ampere, wire gauge, cable length and conductor inner diameter.

AOHUA customization of various of waterproof connectors and cable solutions

Tell us with your idea, send sketch, CAD, or 3D files for what cable solution or connectors you need, then our team will get back to you with designing and price within 24hours.
