Sensor Signal Wiring Terminated Single Core 1007 Electrical Wire Male Female Panel Mount M8 Waterproof Connector For Device
Sensor Signal Wiring Terminated Single Core 1007 Electrical Wire Male Female Panel Mount M8 Waterproof Connector For Device
- M8 metal connector
- 3pin
- male panel type or inline type
- female inline type
- 2A
- 60V
- customized length as required
- send sketch if require customize cable harness
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Sensor Signal Wiring Terminated Single Core 1007 Electrical Wire Male Female Panel Mount M8 Waterproof Connector For Device

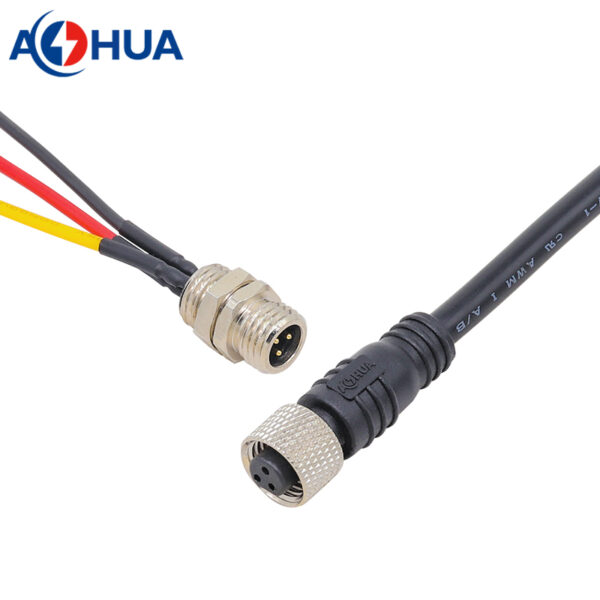

Here is the wiring terminated metal connector M8. The male is rear panel mount type plug and the female is molded with cable directly.
- Model: M08-01
- Contacts: 3pin
- Plastic material: PVC
- Conductor of contacts: gold plated brass
- Screw nut and threads: nickel-plated aluminum
- Rated Voltage: 60V
- Rated Current: 2A
- Wire Gauge: 22AWG or 24AWG
- Cable Length: customized as required

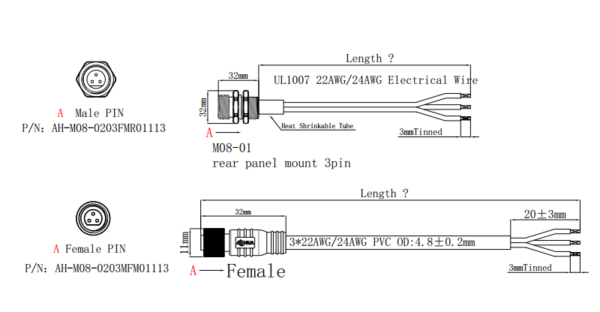

Part Number
Male panel: AH-M08-0203FMR01113
Male inline: AH-M08-0203FMM01113
Female inline: AH-M08-0203MFM01113
 |
 |
Except the panel type solution, inline type connector is also OK for choices, which is all molded with cable directly.
How to order
- specify the connector type you need;
- confirm the working ampere;
- specify the wire gauge, cable length;
- confirm the wire end details.
AOHUA is the leading manufacturer in waterproof connectors cable industries, we can design and make many series of waterproof connectors and cable harness or cable solution, please send us the detail requests to Molly, she will help you go ahead with solution designing.
