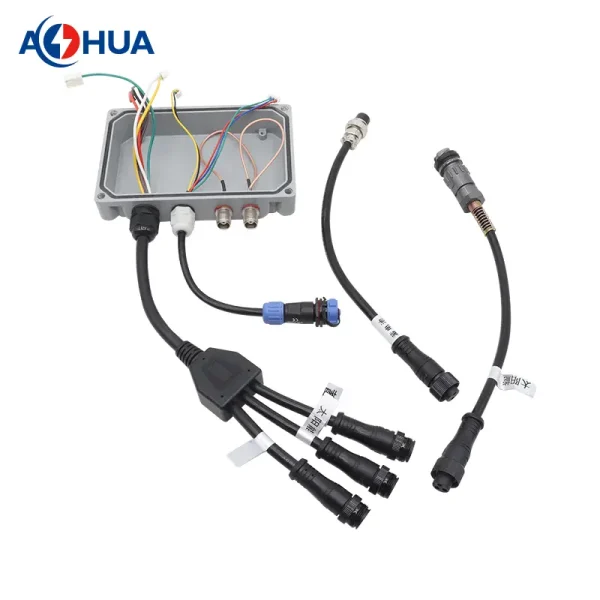

Control box wire tail processing y type cable solution 3 pin M16 metal power cable waterproof connector
Control box wire tail processing y type cable solution 3 pin M16 metal power cable waterproof connector

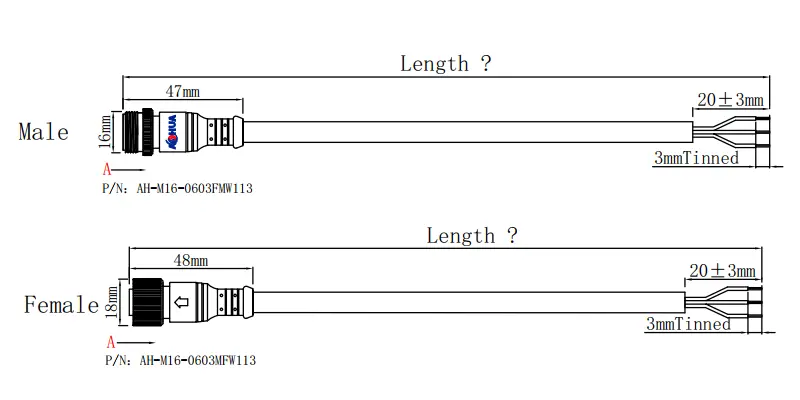

P/N: AH-M16-0603FMM01113/AH-M16-0603MFM01113
Material: metal
Cable: PVC
Color: black /white
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

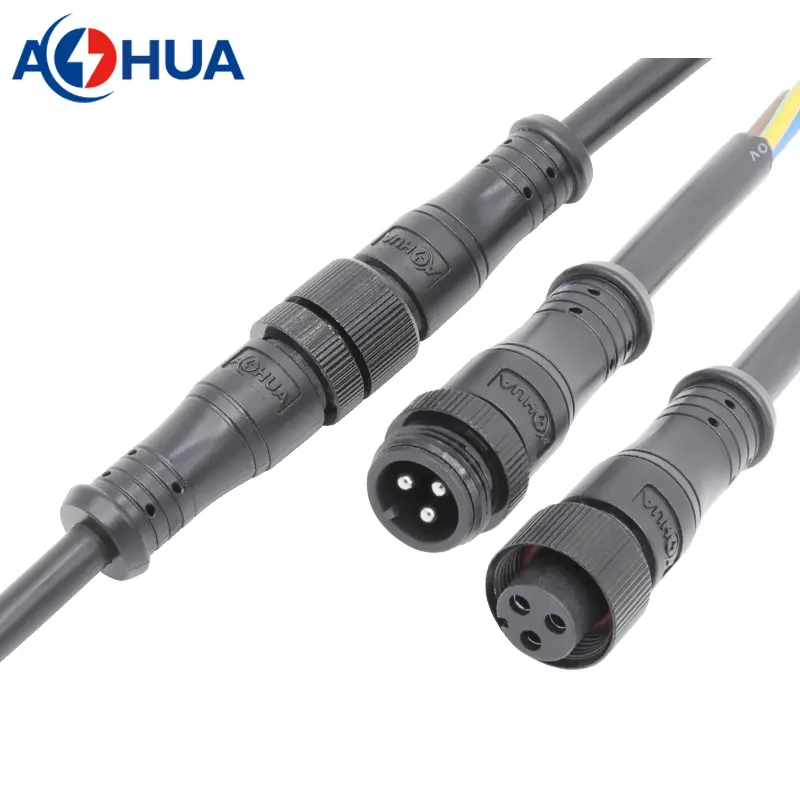

Control box wire tail processing y type cable solution 3 pin M16 metal power cable waterproof connector

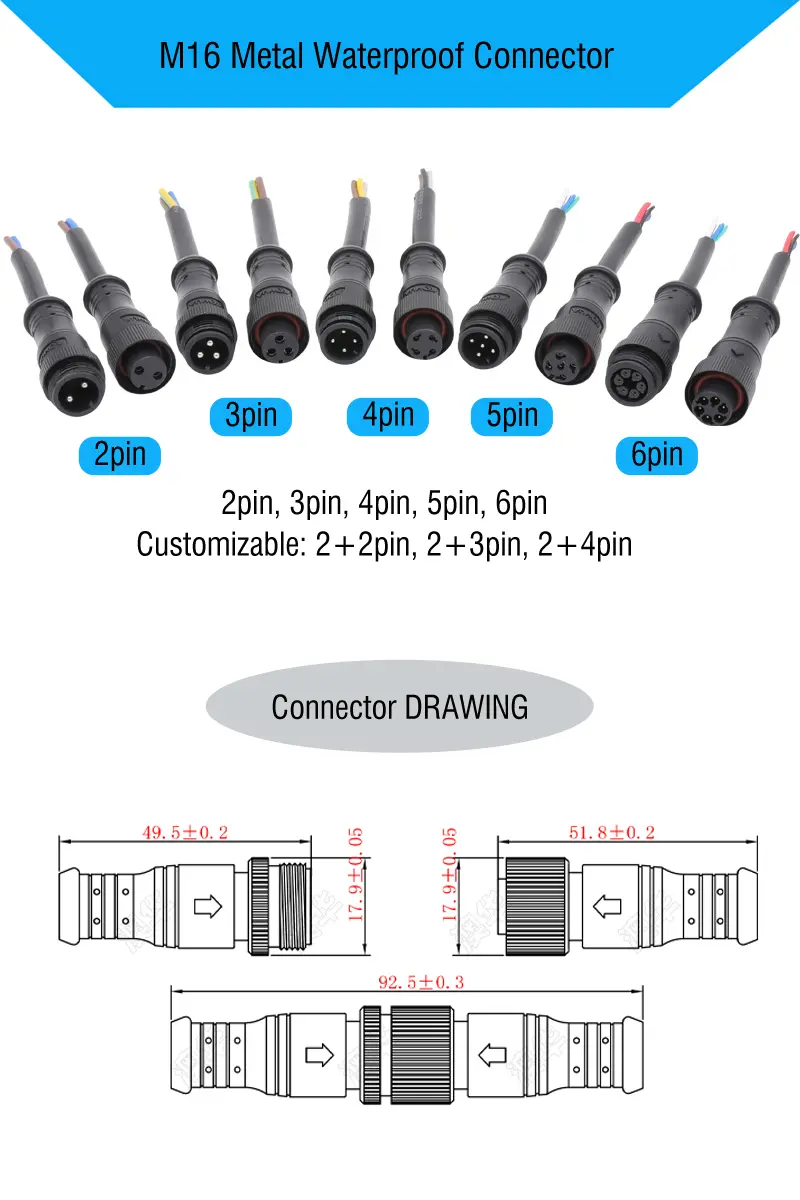

| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M16-1202FMM01113/AH-M16-1202MFM01113 | ≤1.5mm² | 250V | 12A |
| 3 | AH-M16-0603FMM01113/AH-M16-0603MFM01113 | ≤1.0mm² | 250V | 6A |
| 4 | AH-M16-0504FMM01113/AH-M16-0504MFM01113 | ≤0.75mm² | 250V | 5A |
| 5 | AH-M16-0405FMM01113/AH-M16-0405MFM01113 | ≤0.5mm² | 110V | 4A |
| 6 | AH-M16-0406FMM01113/AH-M16-0406FMM01113 | ≤0.5mm² | 110V | 4A |
| 2+2 | AH-M16-0622FMM01113/AH-M16-0622MFM01113 | ≤1.0mm² ≤0.3mm² | 60V | 6+2A |
| 2+3 | AH-M16-0623FMM01113/AH-M16-0623MFM01113 | ≤1.0mm² ≤0.3mm² | 60V | 6+2A |
| 2+4 | AH-M16-0624FMM01113/AH-M16-0624MFM01113 | ≤1.0mm² ≤0.3mm² | 60V | 6+2A |
| Cable OD | 6.0mm-10mm |
| Mechanical Life | 1500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
