Street Lighting Signal Wiring Control Box Male Female Panel Mount IP68 Waterprooff AOHUA Connector 15A 3pin
Street Lighting Signal Wiring Control Box Male Female Panel Mount IP68 Waterprooff AOHUA Connector 15A 3pin
- Model: M20
- Contacts: 3pin
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5-10mm
- Plastic Material: PA66
- Conductor: gold plated brass
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Street Lighting Signal Wiring Control Box Male Female Panel Mount IP68 Waterprooff AOHUA Connector 15A 3pin

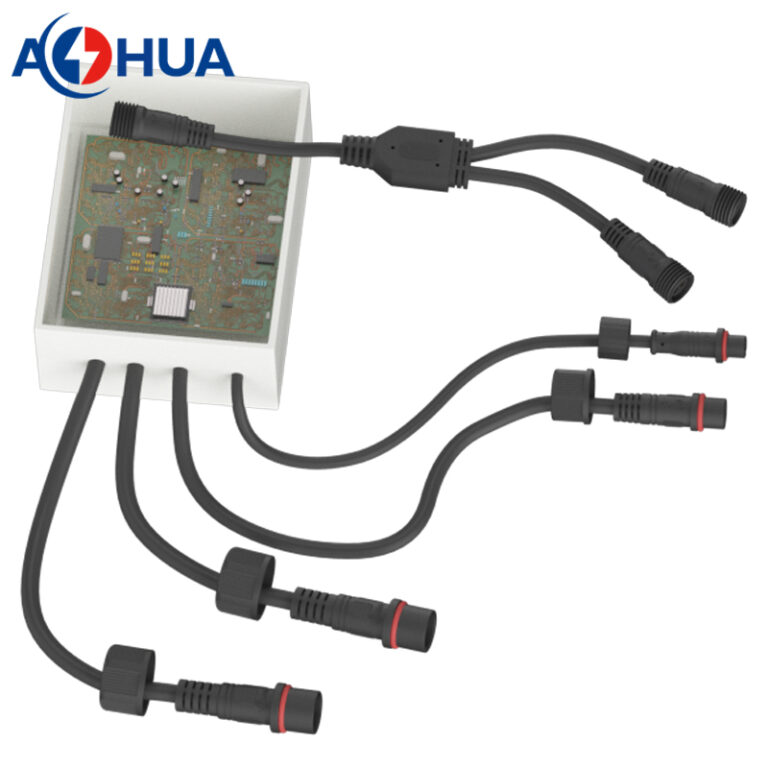

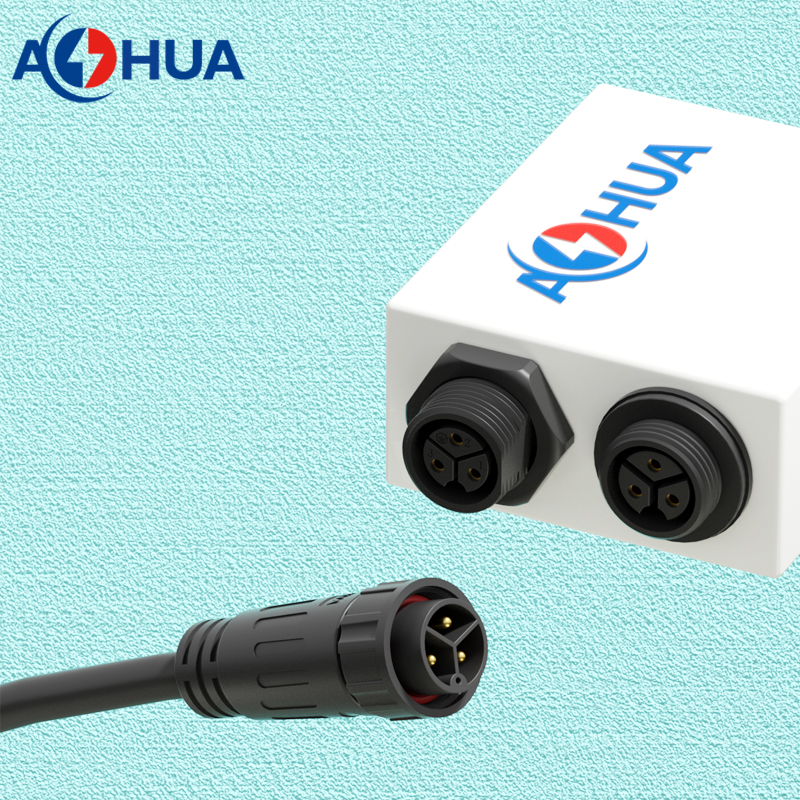

This is panel mount 3pin 15A connector with favorable waterproof effect. The male is inline over molding cable connector, and the female is panel mounting type connector for junction box. In general, the female socket should be front panel mount or rear panel mount. And it is screw lugs or solder lugs for choosing from.
Due to the male is customized connector, it can be customized as different wire size and different cable length.
- Male: inline molding with cable—AH-M20-1503MMN01112
- Female: front panel mount, screw type —AH-M20-1503FFF02122;solder type —AH-M20-1503FFF01112
- Female: front panel mount, screw type —AH-M20-1503FFR02122solder type —AH-M20-1503FFR01112
| Model | M20 |
| Contacts | 3pin |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 5-10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP67 / IP68 |
| Contacts Terminal | screw lugs / solder lugs |
| Certificate | CE / ROHS |
| Connector Type | panel mount: front panel or rear panel mount |
