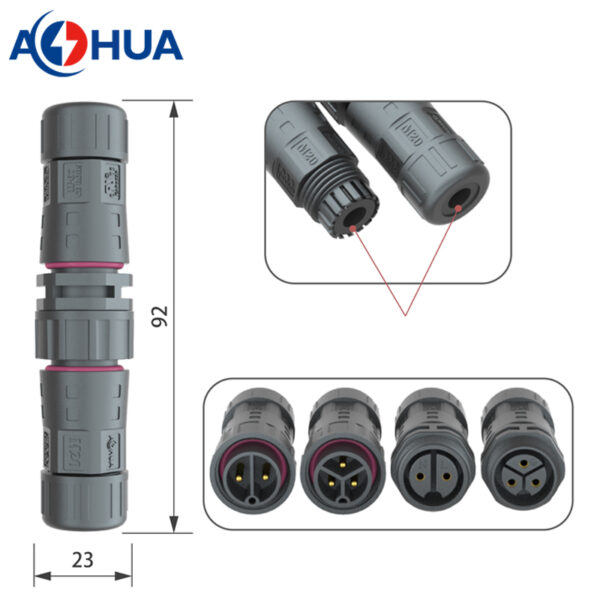

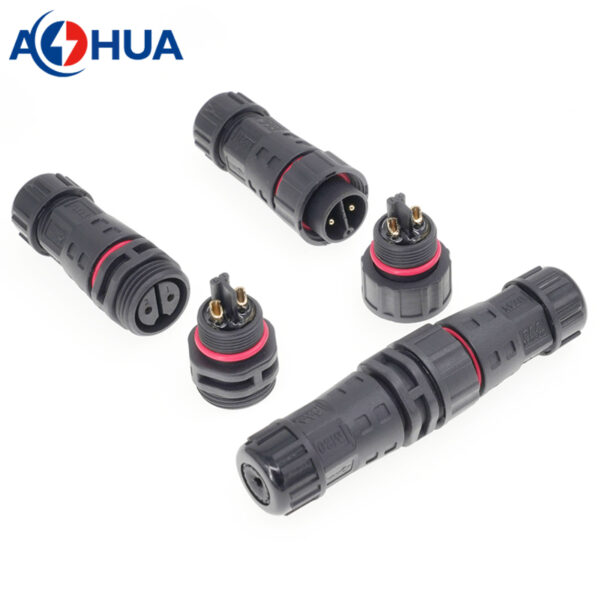

UL M20 15A Power Wire Joint Soldering Lugs Male Female Assembly 2pin Waterproof Connector Plug
UL M20 15A Power Wire Joint Soldering Lugs Male Female Assembly 2pin Waterproof Connector Plug
- Connector Type: inline assembly
- Connection: soldering
- Model: M20
- Contacts: 2pin
- Certificate: UL, SAA, TUV, CE, ROHS
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5-10mm
- Waterproof Grade: IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
UL M20 15A Power Wire Joint Soldering Lugs Male Female Assembly 2pin Waterproof Connector Plug
- UL version waterproof connector.
- Certificate: UL, TUV, SAA, CE, ROHS
- Model: M20
- Contacts: 2pin
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Size: ≤1.5mm²
- Cable OD: 5-10mm
- Connection Type: soldering
- Operating Temperatuer: -40℃~+105℃
- Mechanical Life: 3000 mating cycles
- Waterproof Grade: IP68
Part Number
- Male: AH-M20-1502MMZ01112
- Female: AH-M20-1502FFZ01112
- Plastic Material: nylon PA66
- Conductor: crown spring-gold plated copper
