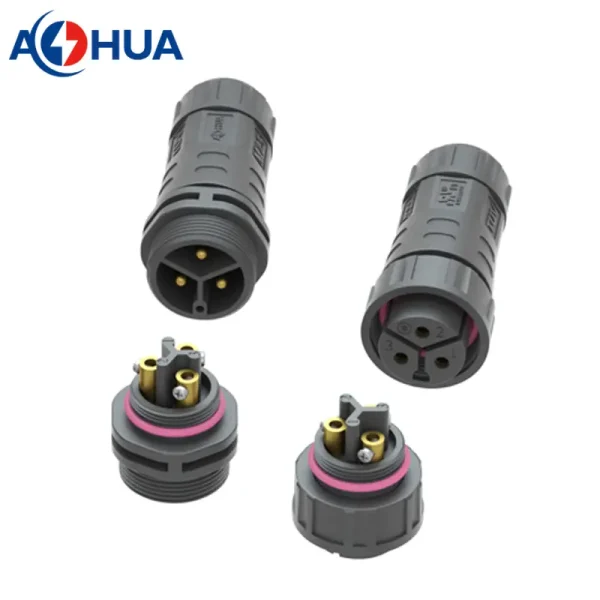

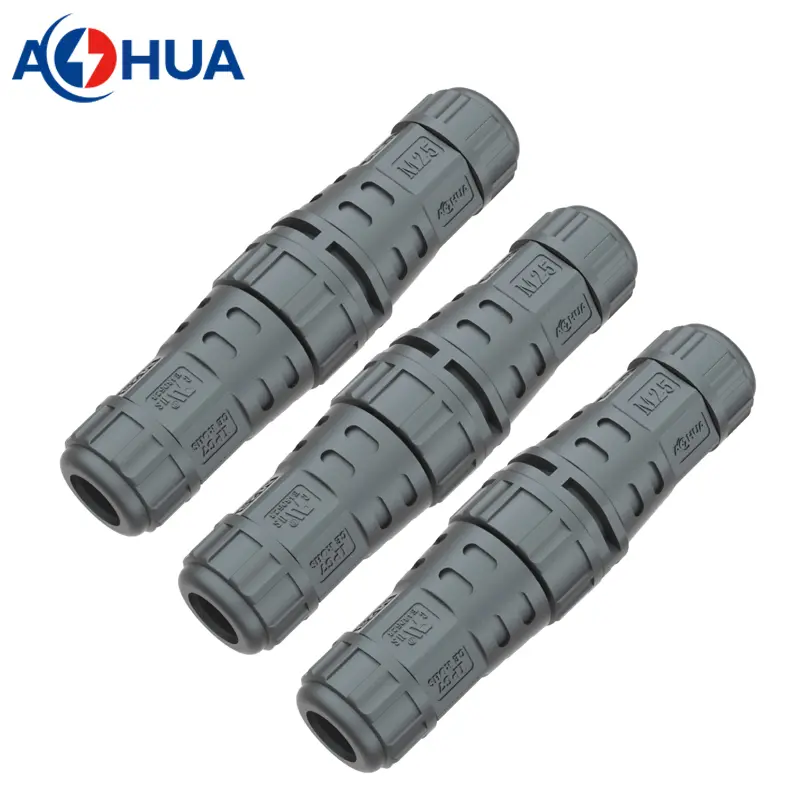

UL SAA TUV certified power 25A screw fixing wire assembly male female IP67 IP68 3 pin M25 waterproof connector

3 pin M25 waterproof connector is made of glass fiber reinforced & flame retardant plastic material and gold-plated brass, its flame retardant rating is 94 V-0. The plastic material employed in 3 pin M25 waterproof connector is insulating material-nylon PA66, which is high strength, high heat resistance, good electrical properties and no blooming. The hardware is gold plated brass, which is screw pressure type terminal. All parts are made of corrosion resistant material or are plated to provide corrosion protection.

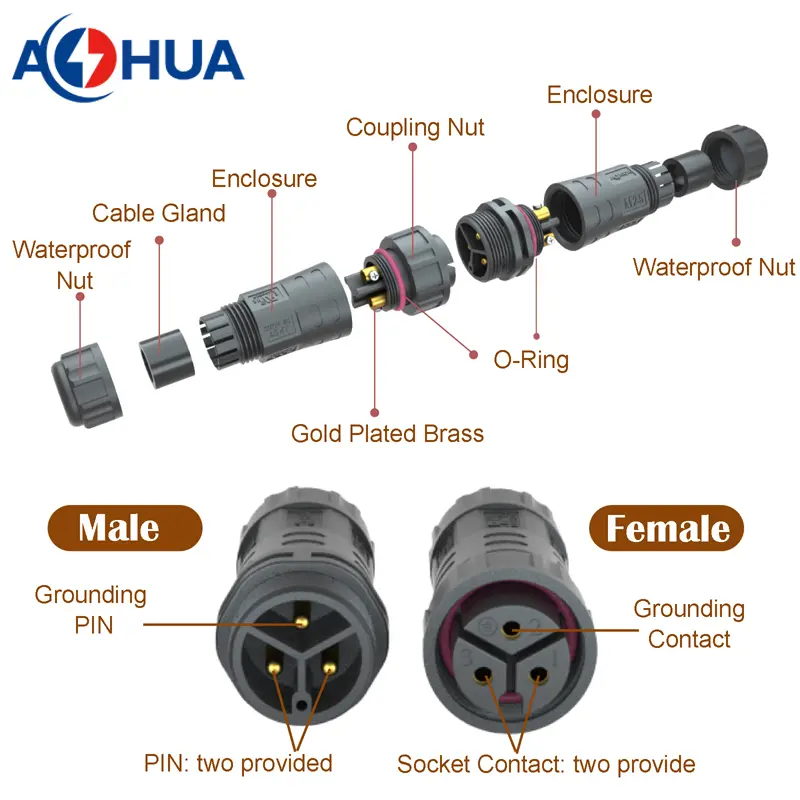

Composition:

Male Connector: AH-M25-2503FMZ01122

• PIN: two provided, brass, screw pressure type terminal
• Grounding pin: one provide, screw pressure type terminal
• Enclosure: secured to Insert Body by physical fit
• Waterproof nut: secured to Enclosure by physical fit
• Cable gland: silicon rubber
• O-ring: silicon rubber
• Sealants: dispensed directly to the bottom of the insert body in a liquid form

Female Connector: AH-M25-2503FMZ01122

• Socket contact: two provided, brass, screw pressure type terminal
• Grounding contact: one provide, brass, screw pressure type terminal
• Enclosure: secured to Insert Body by physical fit
• Waterproof nut: secured to Enclosure by physical fit
• Cable gland: silicon rubber
• O-ring: silicon rubber
• Coupling Nut: secured to male Insert Body by physical fit
• Sealants: dispensed directly to the bottom of the insert body in a liquid form

Basic Parameters for 3 pin M25 waterproof connector

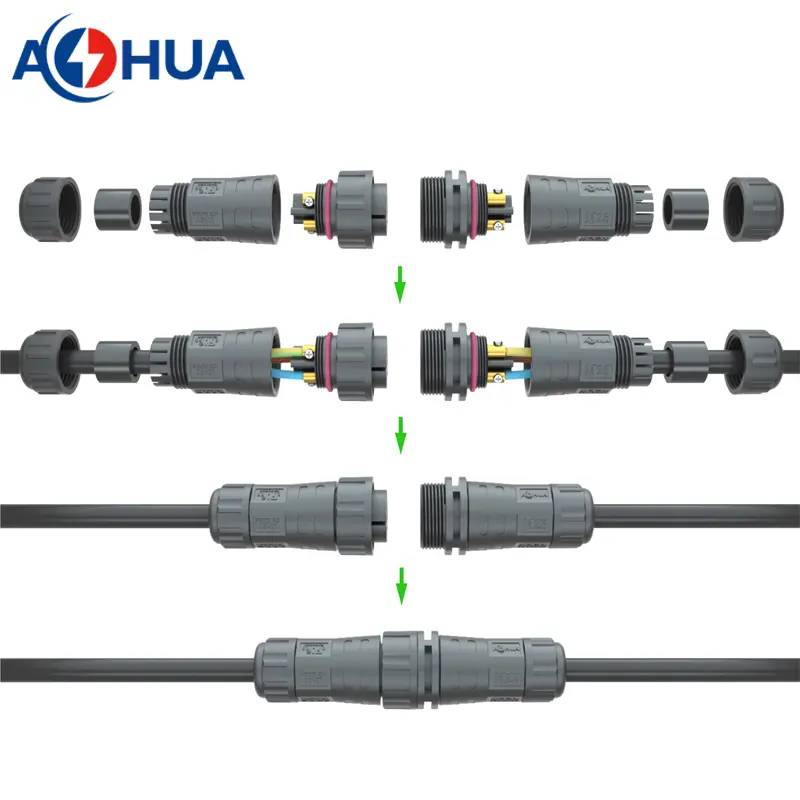

How to install 3 pin M25 waterproof connector? Before installation, a good screwdriver should be prepared in advance. Take a look at the below steps, or check out the related installation videos.

1. Loosen the screws
2. Insert the wire after stripping the outer rubber
3. Tighten the screws

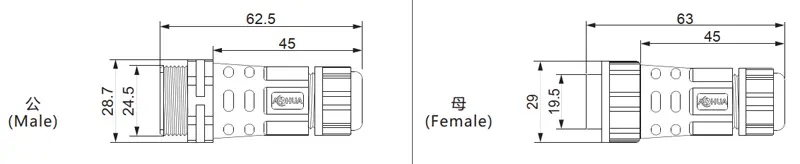

3 pin M25 waterproof connector size-DRAWING

Related Certification

CE, ROHS, and ISO are the basic certification requirements, but I’ll focus here on the more important certificates.

3 pin M25 waterproof connector is passed UL, SAA, TUV certificate. Different standard with different electrical data, table below for additional details

UL certificate details:

UL 2238 cable assemblies and fittings for industrial control and signal distribution

CSA C22.2 No. 182.3, Special Use Attachment plugs, receptacles and connectors.

SAA certificate details

IEC 61984: 2008

TUV certificate details

EN 61984:2009

How to choose the correct waterproof connector? Even if you prefer to 3 pin M25 waterproof connector, it may not suit for your power in the end use. You can refer to the following methods to determine the final suitable waterproof connector. All the parameters are only for reference, not the only determinant.

• Power voltage rating (3 pin M25 connector-reference ranges: ≤300V)
• Power current rating (3 pin M25 connector-reference ranges: 10A~25A)
• Wire gauge (3 pin M25 connector-reference ranges: 1.5mm²~2.5mm²or 14AWG~12AWG)
• Cable jacket overall diameter (3 pin M25 connector-reference ranges: 6mm~12mm)

How to confirm and choose the right cable gland for your cable? The cable gland is silicon rubber, which used to between connector and cable to prevent water entering. The cable will go through the cable gland when install the connector. In this way, the cable gland inside diameter required larger than cable jacket outer diameter. It mean that the cable outer diameter is near to the cable gland in side diameter but not exceed the cable gland diameter. Choosing the suitable cable gland will help to make higher waterproof level. Below table is for reference only.

Application

3 pin M25 waterproof connector is mainly use to the power cable connection of various of industrial control and electrical distribution. Such as wind electricity, sensor based feeding control, various of led lighting, and so on.
