UL2464 AWM STYLE VW-1 20AWG OD5mm 2 Core Power Signal Cable Electrical Wire For LED Light Extension
UL2464 AWM STYLE VW-1 20AWG OD5mm 2 Core Power Signal Cable Electrical Wire For LED Light Extension
Share to:
UL2464 AWM STYLE VW-1 20AWG OD5mm 2 Core Power Signal Cable Electrical Wire For LED Light Extension
Specifiction
1. Model: UL2464 2*20AWG
2. Standard: UL758
3. Rated Temperature: 80℃
4. Rated Voltage: 300V
5. Flame Retardant Grade: VW-1
6. Environmental Standards: RoHS
| Conductor | Conductor Structure | 26*0.16*0.006mm |
| Conductor Material | Tinned Copper Wire | |
| Insulation | Plastic Material | PVC-45P |
| Plastic Color | Red/Black | |
| Minimum Thickness | 0.24mm | |
| Average Thickness | 0.32mm | |
| Overall Diameter | 1.7±0.1mm | |
| Isolation | Isolation Maerial | / |
| Isolation Structure | / | |
| Jacket | Plastic Material | PVC-65P |
| Plastic Color | Black | |
| Minimum Thickness | 0.74mm | |
| Average Thickness | 0.80mm | |
| Overall Diameter | 5.0±0.15mm |

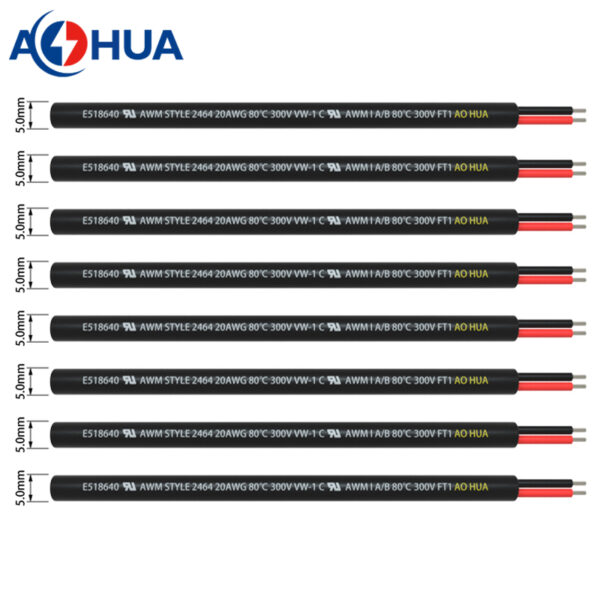

Printing Content: E518640 AWM STYPE 20AWG 80℃ 300V VW-1 AWM I A/B 80℃ 300V FT1 AO HUA
Package: 305meter per roll. Packed in bag or carton.
