Wire Processing Male Female 2pin Panel Mount Waterporoof Cable Plug Connector For Junction Box
Wire Processing Male Female 2pin Panel Mount Waterporoof Cable Plug Connector For Junction Box
Model: M25
Male: AH-M25-2502FMF02122
Female: AH-M25-2502MFZ02122
Contacts: 2pin
Rated Voltage: 300V
Rated Current: 25A
Wire Gauge: ≤2.5mm²
Cable OD: 6-12mm
Plastic Material: PA66
Conductor: gold plated brass
Mechanical Life: 3000 mating cycles
Operating Temperture: -40℃~+105℃
Certificate: CE/ROHS
Waterproof Grade: IP68
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
Wire Processing Male Female 2pin Panel Mount Waterporoof Cable Plug Connector For Junction Box

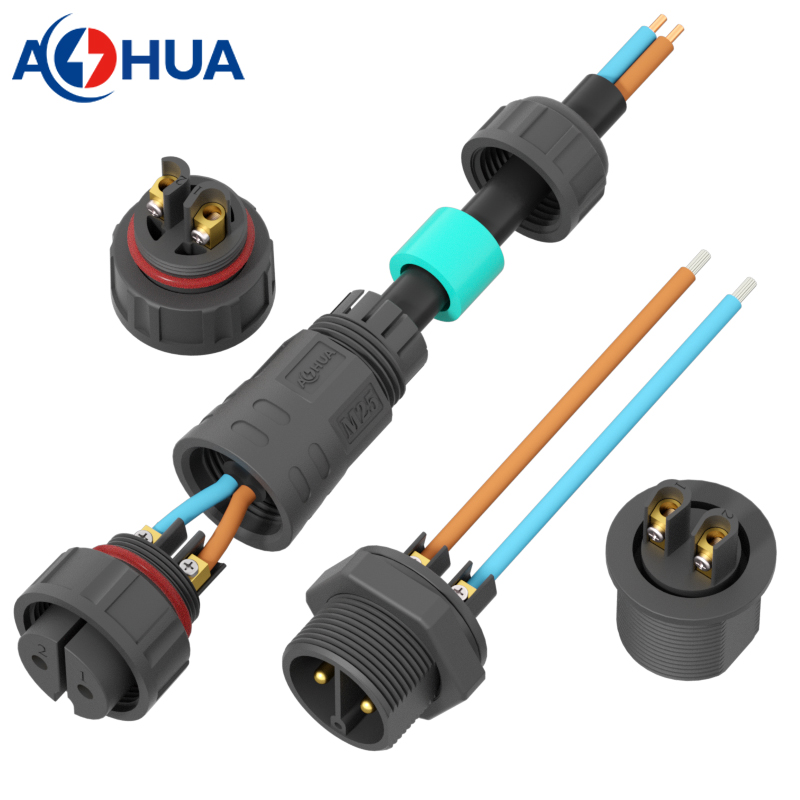

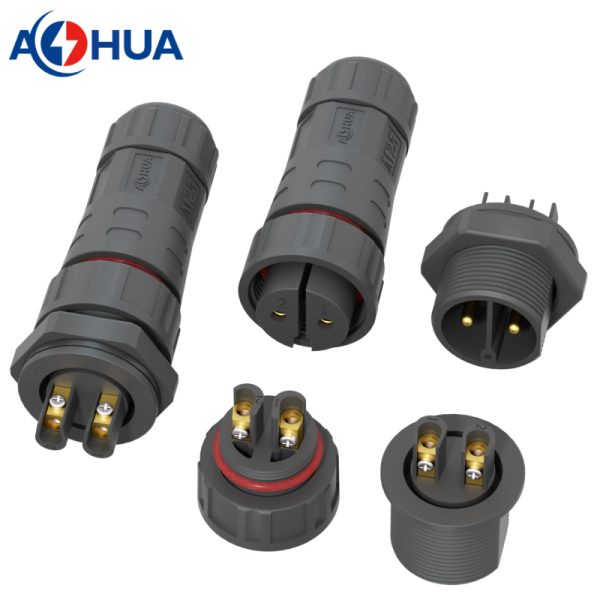

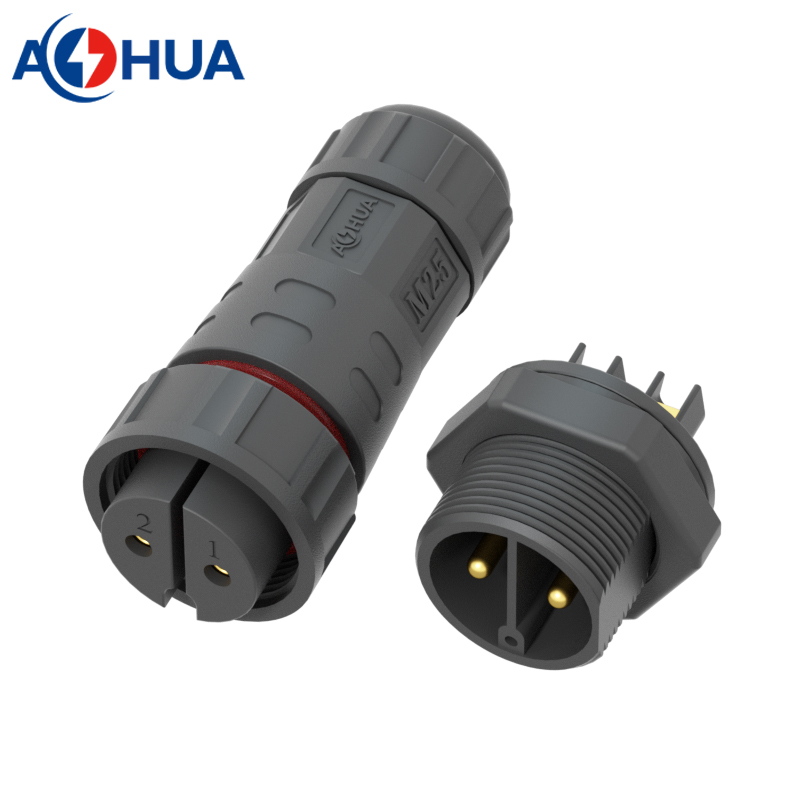

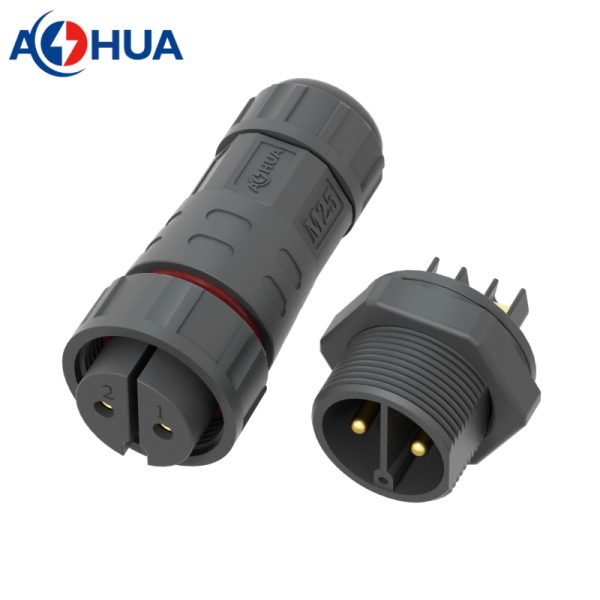

| The male is front panel mount, and female is inline type connector. And it is screw lugs for wiring operation.
Model: M25
Conponents: waterproof nut, cable gland, enclosure, O-ring, coupling nut, connector core, hex-nut, gasket. |
 |
| Model | M25 |
| Pin | φ3.0mm |
| Wire Gauge | 2.5mm²/2.0mm² or 14AWG/12AWG |
There is dust caps for choosing from when unplug.
| AH-M25-CAP-F | AH-M25-CAP-M |
 |
 |
