M20 2 3 pin T type male female waterproof connector
M20 waterproof connector is T type male to female plug, it can plug and unplug accordingly. This M20 T connector have 2 pin and 3 pin. It is waterproof IP67 level.

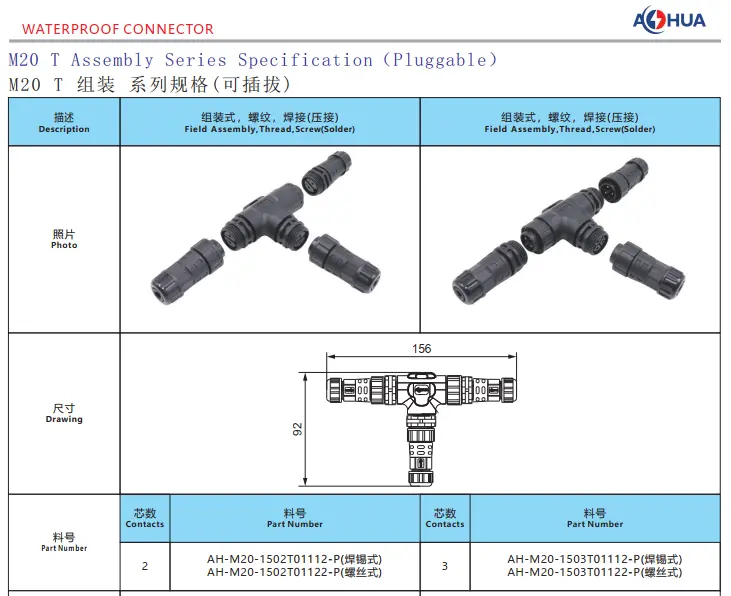

This M20 T connector is one side male input and the other two sides female outputs, the matched connectors are one piece female and two pieces male connector. The matched connector is also M20 connector, you can choose the connector with cable, or the connector without cable(assembly). The assembly connector is solder type or screw type.
| PIN | P/N, Solder Type | P/N, Screw Type | Wire Gauge | Voltage Rating | Current Rating |
| 2 pin | AH-M20-1502T01112-P | AH-M20-1502T01122-P | ≤1.5mm² | 300V | 15A |
| 3 pin | AH-M20-1503T01112-P | AH-M20-1503T01122-P | ≤1.5mm² | 300V | 15A |
| Cable OD | 6mm-10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
| Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |
