12V 4A 20AWG Male To Female 200 500 1000mm Extension Cable 5.5*2.1mm Adapter DC connector
12V 4A 20AWG Male To Female 200 500 1000mm Extension Cable 5.5*2.1mm Adapter DC connector
- customize cable solution: no stock but accept your bespoked request.
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
12V 4A 20AWG Male To Female 200 500 1000mm Extension Cable 5.5*2.1mm Adapter DC connector
Please kindly note that: this is customize cable length connector solution, so please contacts sales to discuss the solution and get drawing confirmation.
Description

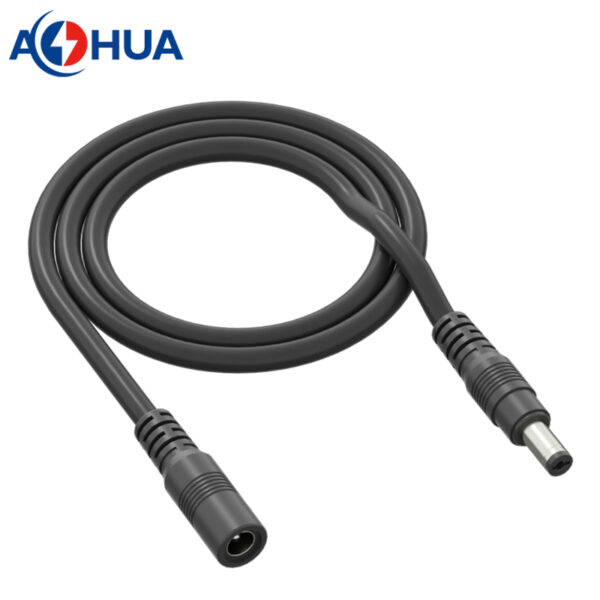

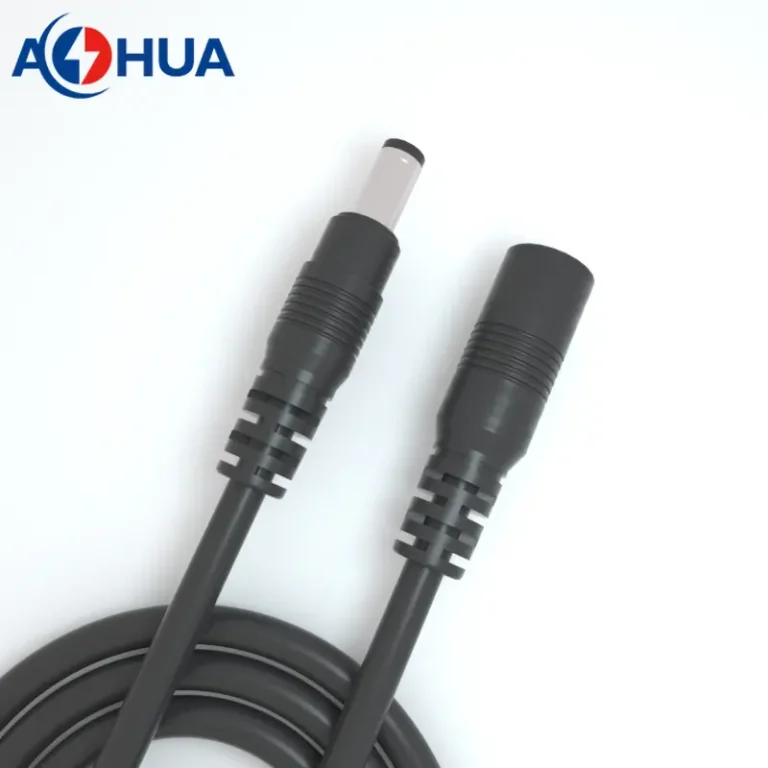

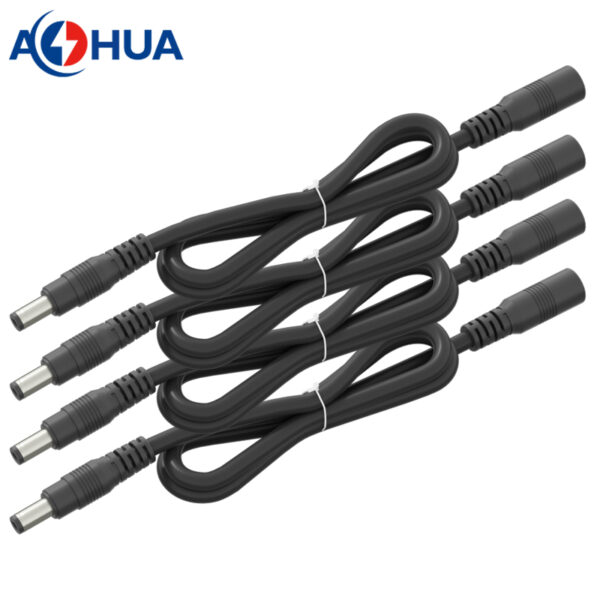

- This is male to female extension cable DC jack connector.
- The male and female is molding with cable, the cable can be round or parallel wire.
- Plastic: PVC material injection
- Conductor: copper
- Cable: PVC such as UL2464 20AWG
- Cable Length is customized as you need, such as shortest cable is 100mm, no longest limited;
- Color can be white or black.
- DC metal size is 5.5*2.1 or 5.5*2.5mm.
Specification
- Contacts: 2pin
- Voltage Rating: 60V
- Current Rating: 5A
- Wire Gauge: ≤0.75mm²
- Cable OD: 3-5.5mm
- Waterproof Grade: IP65
How to customize this DC jack cable solution?
As we customize this cable solution according to the request from clients, so it would be great thanks if you can provide a simple drawing with annotations. And we want to know about:
- working ampere, such as 4A or 5A;
- wire size, such as 20AWG or 18AWG;
- cable length, such as 500mm or 1000mm each side;
- DC metal size, such as 5.5*2.1mm or 5.5*2.5mm
- Color, such as black or white or customized color ;
Any other customized request also be considered with, please send us with details.
