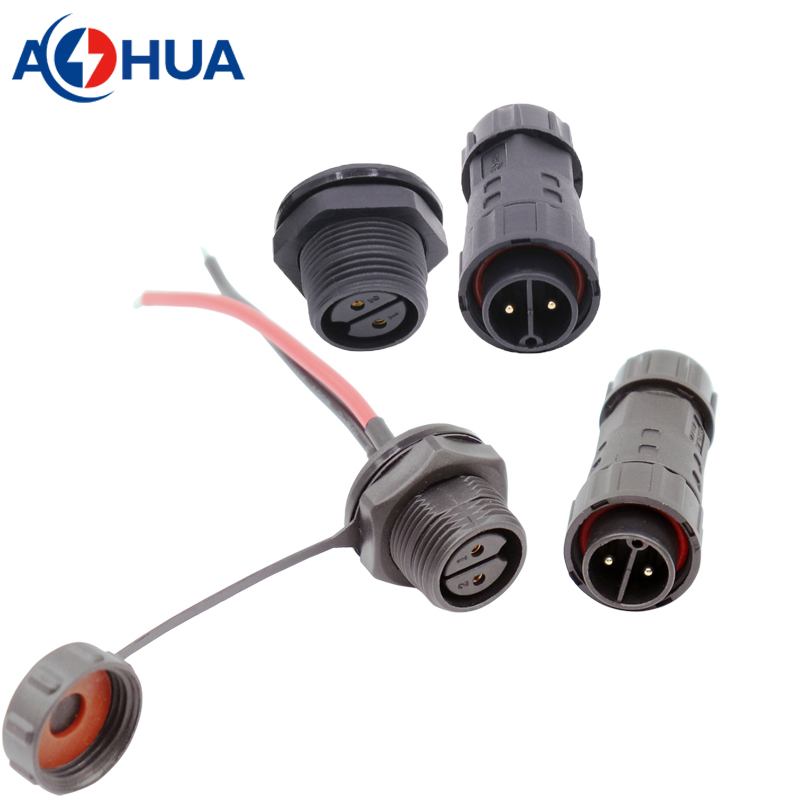

2pin Solder Type Wire Processing Male Female Panel Mount Waterproof Electric Connector 15A 300V China Factory

• The male is inline assembly type, can be solder type or screw fixing type.
• The female is front panel mount type, soldering with electrical wire.

This 2-pin solder type wire connector is a robust panel-mount solution for demanding electrical applications. The male-female pair features a secure locking mechanism and a waterproof IP67 rating, ensuring reliable performance in damp or dusty environments. Rated for 15A 300V, it handles substantial power loads with ease. The solder cup terminals provide strong, permanent wire connections, while the durable housing is designed for long-term stability. Directly sourced from a China factory, this connector offers an optimal balance of industrial-grade performance and cost-effectiveness for various electrical installations and equipment.

Highlights & Specifications

1. Plastic material: PA66
2. Conductor material: gold plated copper
3. available for wire processing as requirement.
4. Connector Type: panel mounting
5. Connection Type: soldering or screw fixing type
6. Docking Type: male to female, threads.
7. Suitable for the panel thickness: <6.5mm.

1. Contacts: 2pin
2. Voltage Rated: 300V
3. Current Rated: 15A
4. Wire Gauge: 0.5~1.5mm²
5. Cable OD: 5-10mm
6. Mechanical Life: 3000 mating cycles
7. Operating Temperature: ~40℃~+105℃
8. Waterproof Grade: IP68
