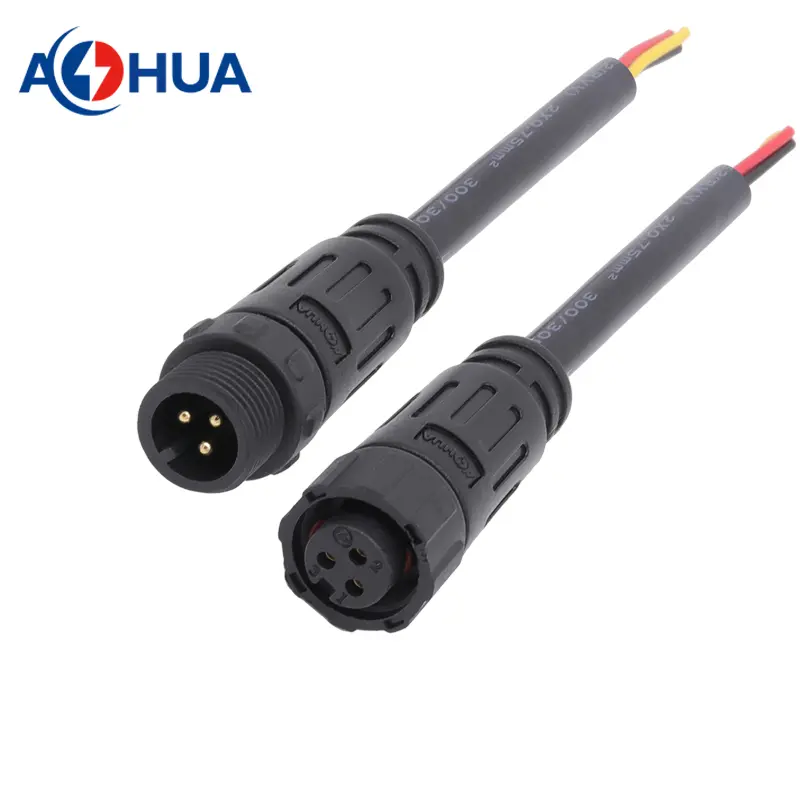

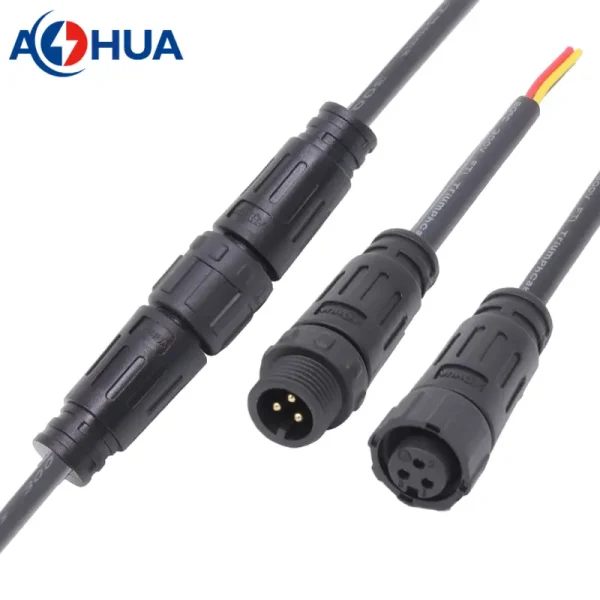

3pin M12 male female cable connector
3pin M12 male female cable connector
P/N: AH-M12-0503FMN01112/AH-M12-0503MFN01112
Connector: Nylon
Cable: PVC/rubber
Color: Black

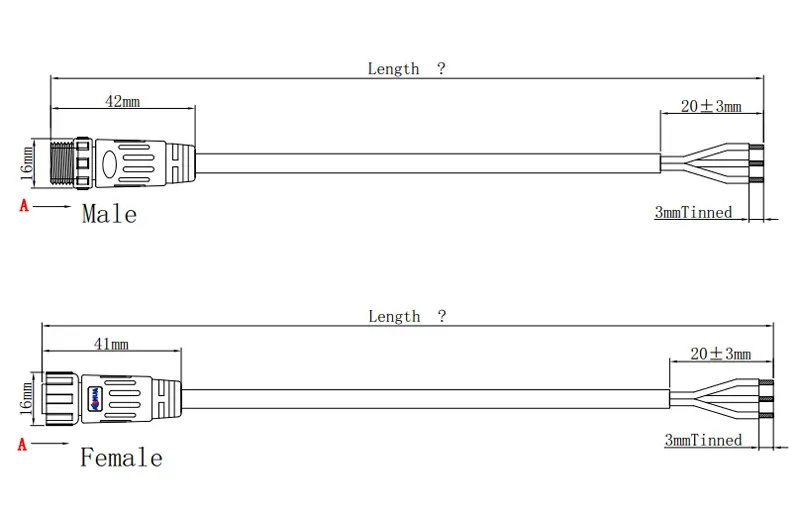

Length: customized on demand
Certificate: CE/ROHS/UL
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

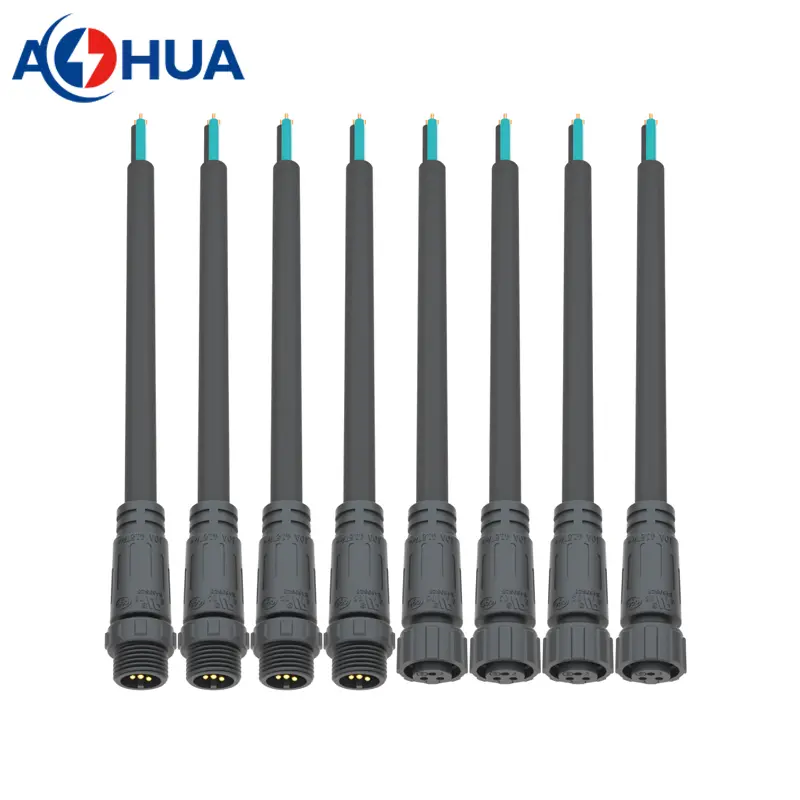

M12 Cable Connector
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M12-0502FM/MFN01112 | ≤1.0mm² | 300V | 5A |
| 3 | AH-M12-0503FM/MFN01112 | ≤0.75mm² | 300V | 5A |
| 4 | AH-M12-0404FM/MFN01112 | ≤0.5mm² | 110V | 4A |
| 5 | AH-M12-0205FM/MFN01112 | ≤0.3mm² | 60V | 2A |
| 6 | AH-M12-0106FM/MFN01112 | ≤0.2mm² | 60V | 1A |
| 7 | AH-M12-0107FM/MFN01112 | ≤0.2mm² | 60V | 1A |
| 8 | AH-M12-0108FM/MFN01112 | ≤0.2mm² | 60V | 1A |
| Cable OD | 3.5mm-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
UL certified wire size: 3*18AWG, OD=7.8±0.2mm, black rubber cable.
