AHUA M12 quadrate panel mount waterproof male female wire connectors 2 pin
AHUA M12 quadrate panel mount waterproof male female wire connectors 2 pin
AH-M12-0502FMU01112/AH-M12-0502MFZ01112
Color: black/white
Material: PA66
Contacts: 2pin
Contacts material: copper gold plated
Current Rating: 5amps
Voltage Rating: 300V
Cable OD: 3mm-7.5mm
Certificate: CE/RoHS/ISO
Payment Terms: Paypal, T/T Wire Transfer
Shipping Port: Shenzhen China
Share to:
AHUA M12 quadrate panel mount waterproof male female wire connectors 2 pin

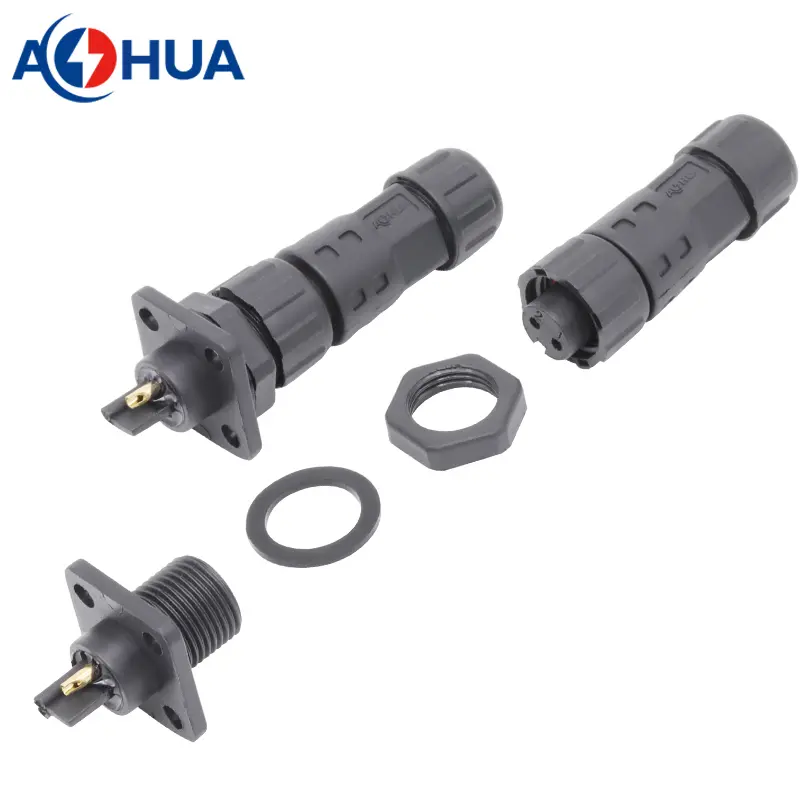

Wire connectors is square panel type waterproof plugs which can fixed on the panel. They are 2 pins for wires, and solder type for field assembly which require welding machaine. The male side is quadrate panel socket and female side is inline assembly connnector or pre-mold connector even angle 90 degree connector.
Part Number:
| Contacts | Male(quadrate panel) | Female (Assembly) | Female (Pre-mold) |
| 2pin | AH-M12-0502FMU01112 | AH-M12-0502MFZ01112 | AH-M12-0502MFN01112 |
Paramenters:
| Voltage Rating | 300V |
| Current Rating | 5A |
| Wire Gauge | ≤1.0mm² |
| Cable OD | 3.5mm-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67/IP68 |
| Seal Ring | 9*9*3.6/4.1/5.5/6.5/7.5mm |

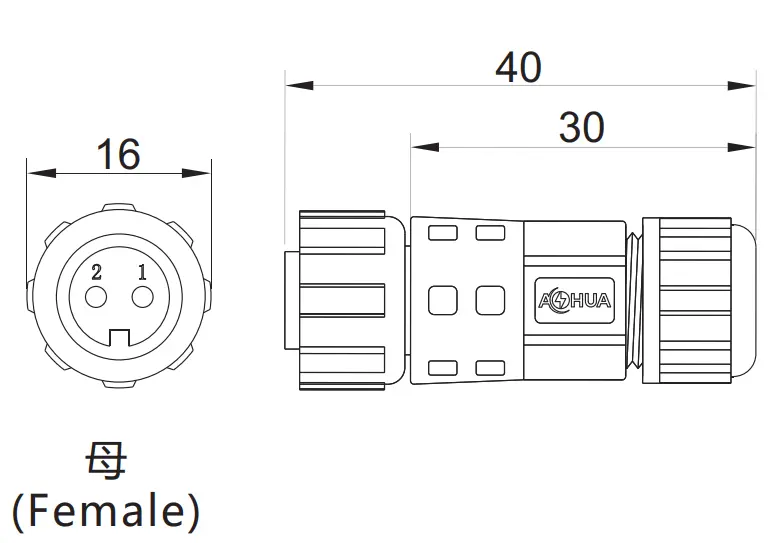

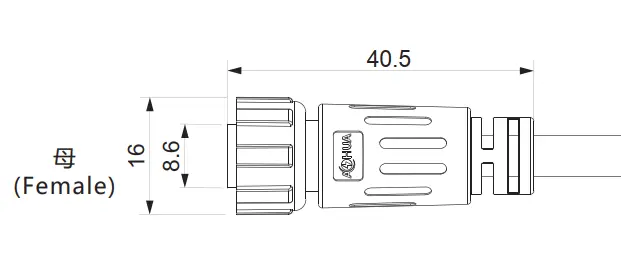

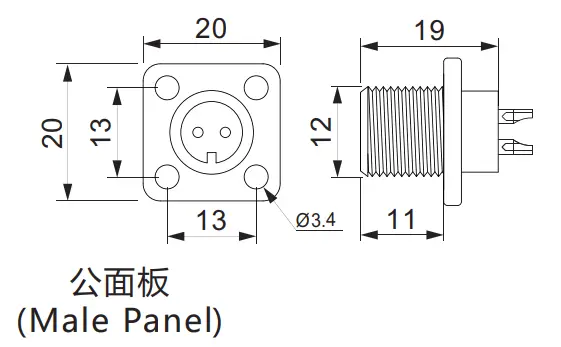

DRAWING:

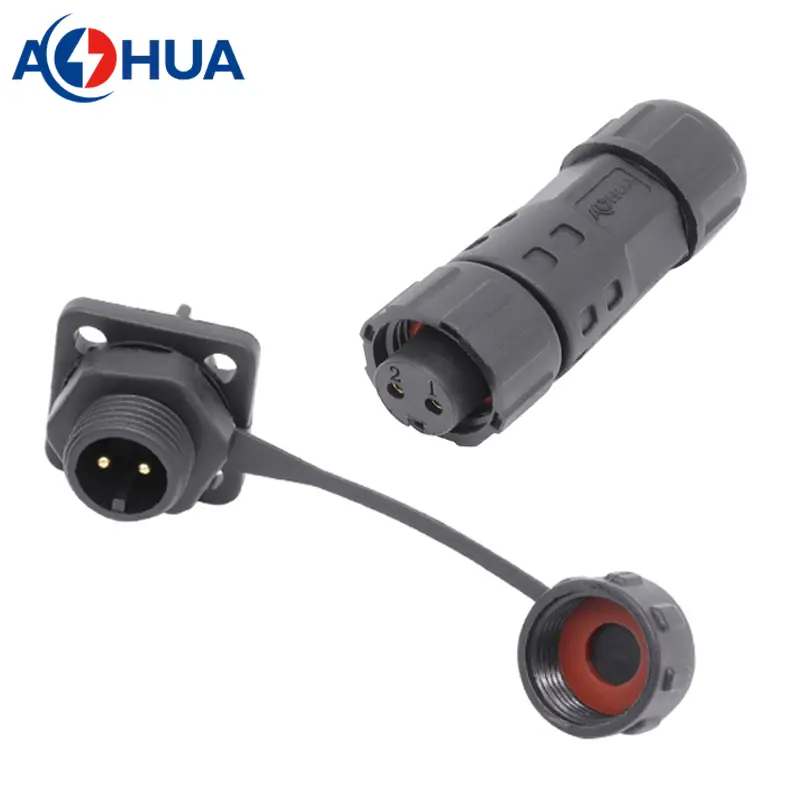

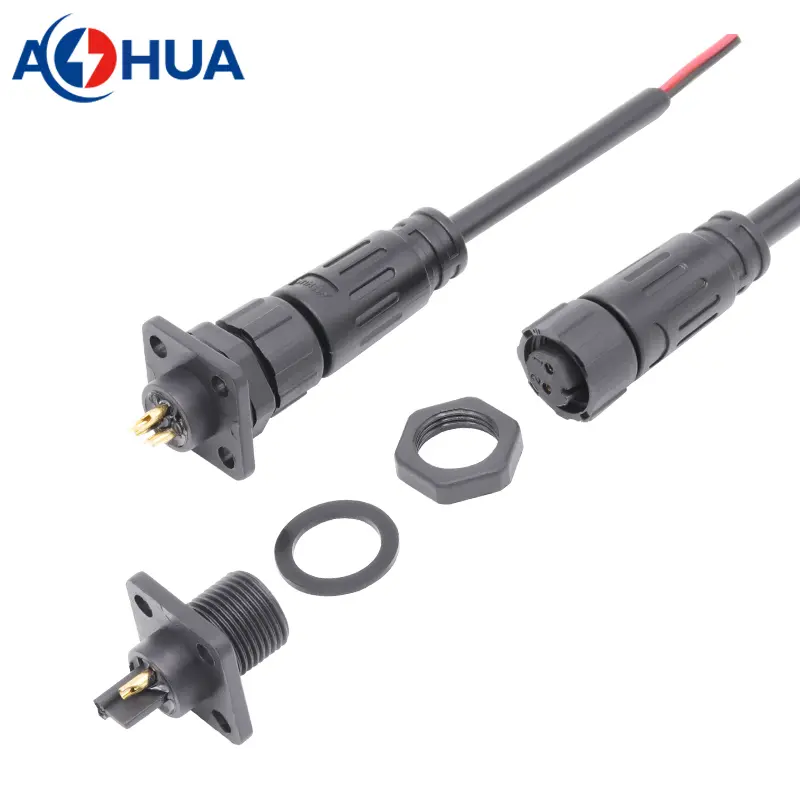

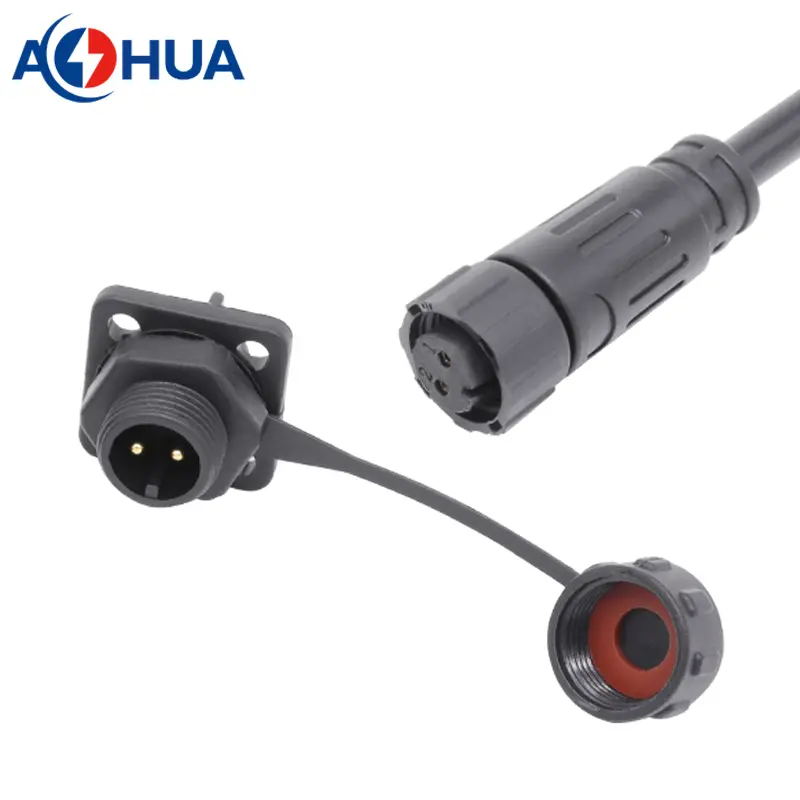

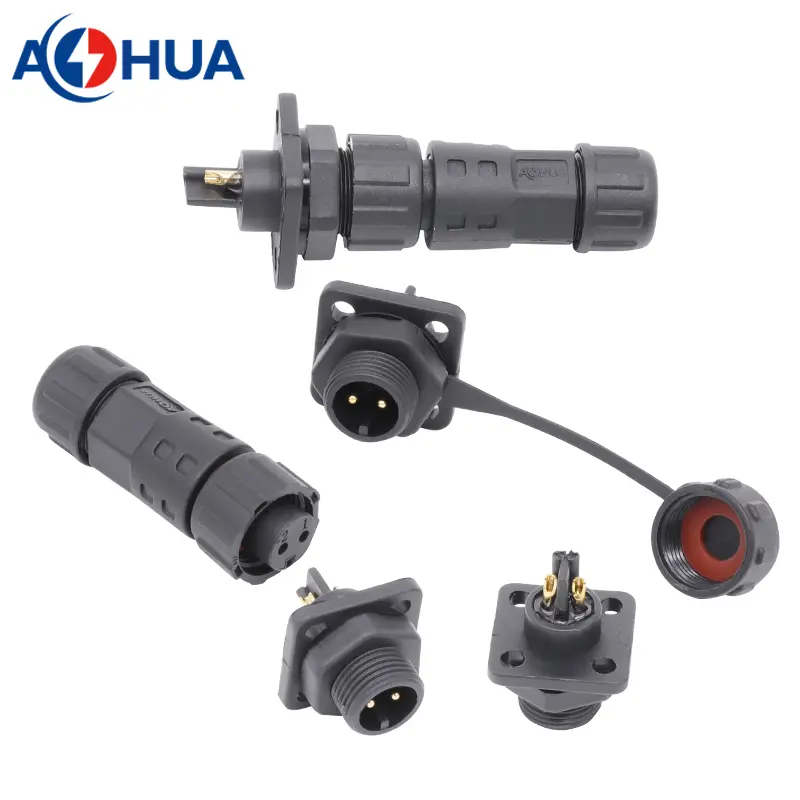

Details Images:
