AOHUA 15A 3 pin power wire fast locking male female IP67 waterproof connector cables

AOHUA 15A 3 pin power wire fast locking male female IP67 waterproof connector cables

Male: AH-Q16-1503FMN01232
Female: AH-Q16-1503MFN01232
Contacts: 3pin
Voltage: 415V
Current: 15amps
Wire Gauge: ≤1.5mm²
Connector: Nylon material
Cable Material: PVC or Rubber
Cable length: customized as requirement
Wire gauge: 1.5mm², 1.0mm², 0.75mm², 18AWG
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal

Share to:

AOHUA 15A 3 pin power wire fast locking male female IP67 waterproof connector cables

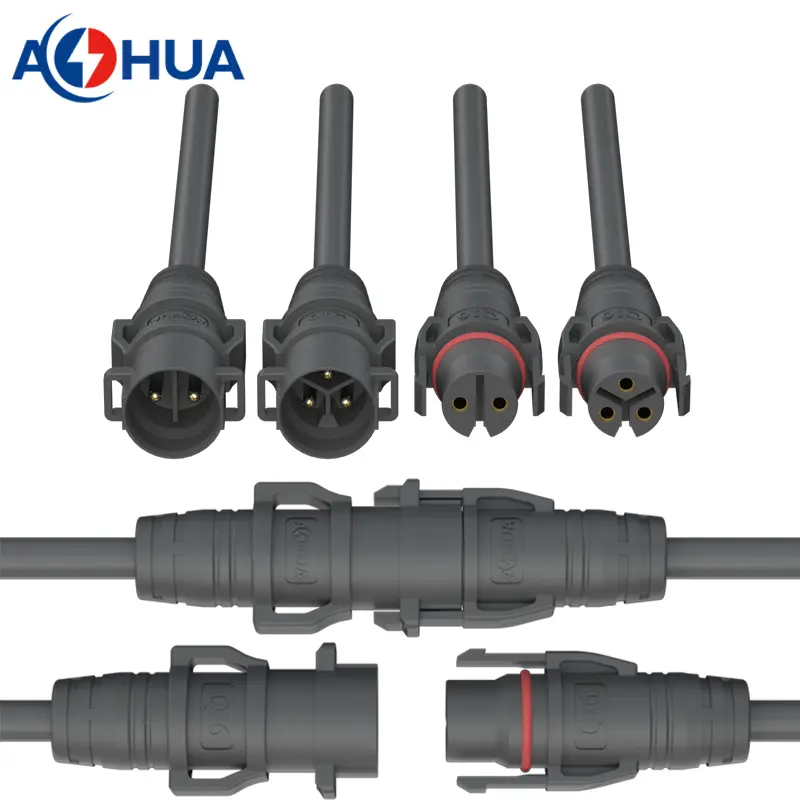

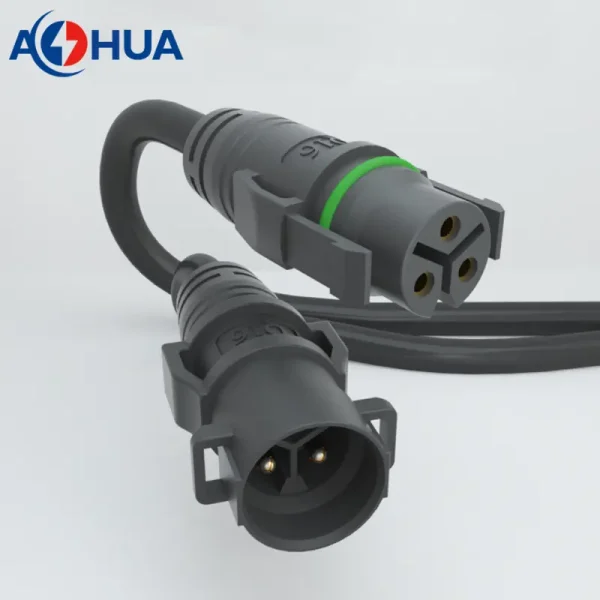

This waterproof connector cables is a pair of connector with male and female plug. The connector is fast locking type connection with quick-locking ears, which can carry heavy a mount of weight.

For this waterproof connector cables, the connector is nylon material, which is high strength/ heat resistant, good electrical properties and no blooming. And the connector is with gold plated brass, which is good electrical conductivity.

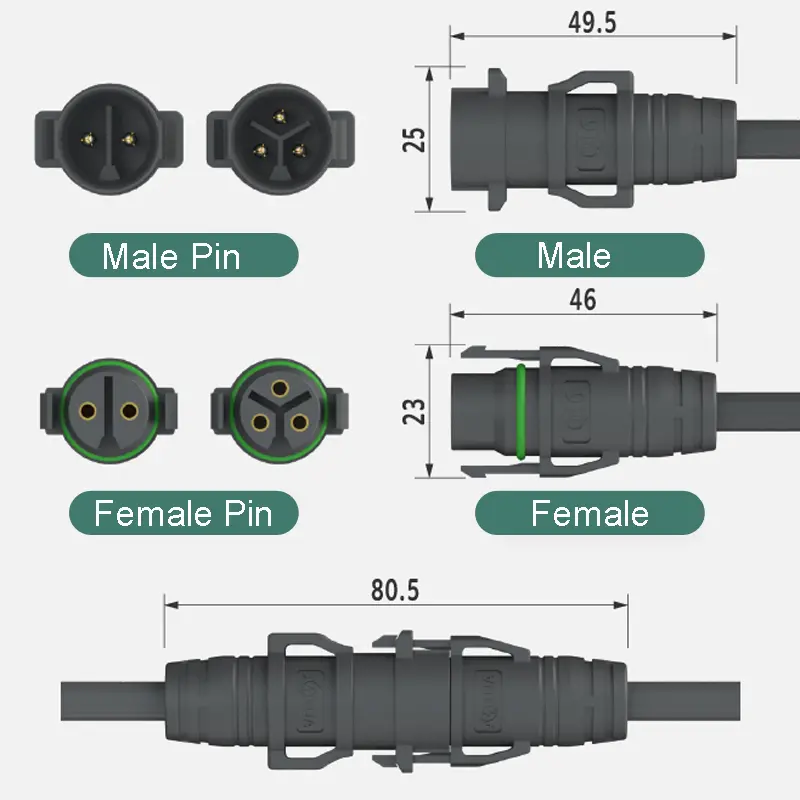

Male	AH-Q16-1503FMN01232
Female	AH-Q16-1503MFN01232
Voltage Rating	415V
Current Rating	15A
Wire Gauge	≤1.5mm² （≤14AWG）
Cable OD	5.5mm-10mm
Mechanical Life	1000 mating cycles
Operating Temperature	-40℃~105℃
Waterproof Level	IP67

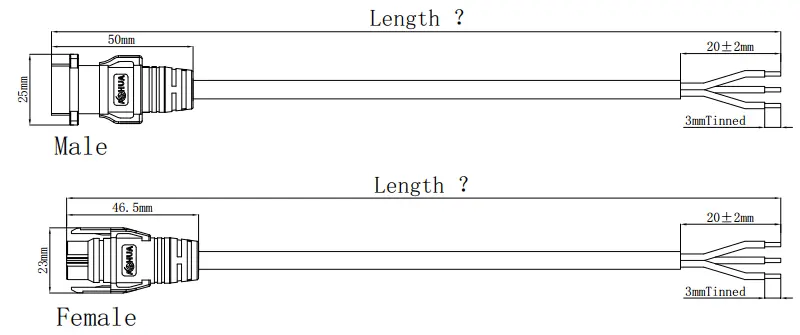

This Q16 connector is molded with cable. The cable commonly is PVC or rubber cable. The PVC cable includes cable CCC series, SJTW series, and the rubber cable includes cable VDE series, SJOW series, H07RN-F series. And the cable is customized length according to the requirement from clients, no longest limited but the shortest cable is 100mm.

How to order a right waterproof connector cables? According to the power supply, choose the right cable and choose the suitable waterproof connector. So that before quotation, please tell our sales with: the voltage/current rating, wire gauge/cable length. In this way, our sales will get back to you with DRAWING and price.
