Solar Panel Battery Storage Power Cable Wire Customize Male Female Elbow Waterproof Electrical Connector 2pin

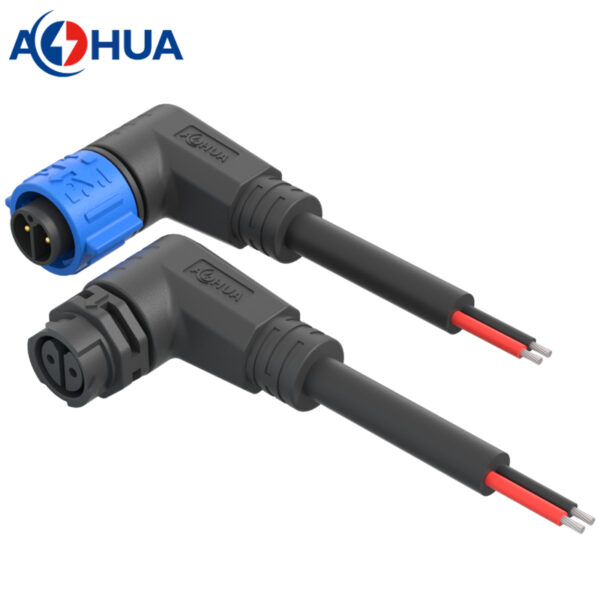

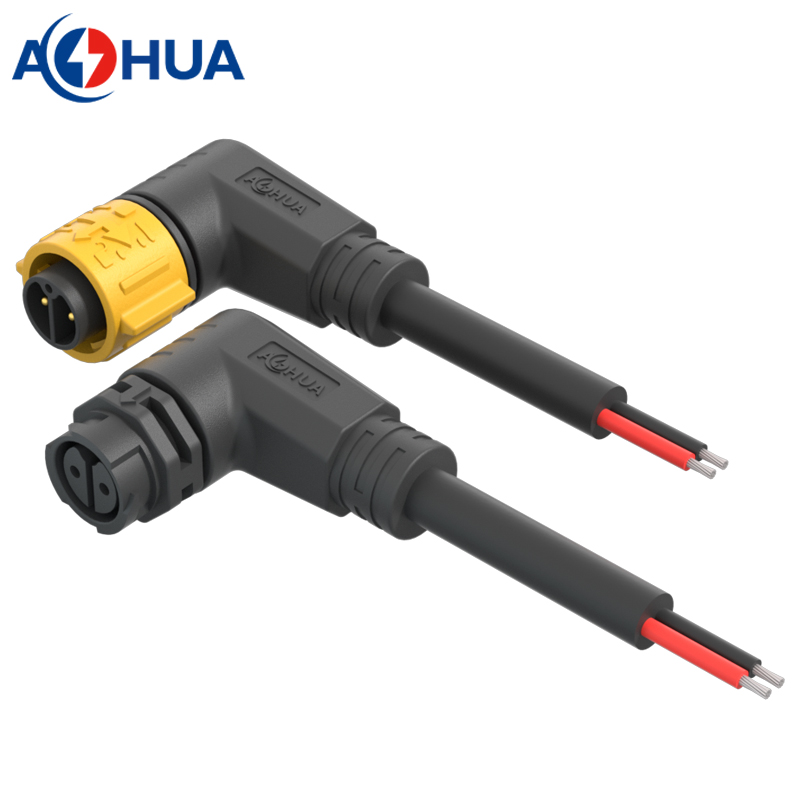

Here mainly talk about the elbow type waterproof connector. Clearly, the elbow connector is the connector designed into 90 degree for the special space or for the cable direction changing.

In AOHUA, this K15 series products, the male or female all can be designed into 90 degree. In general, it is one side design into angle type, the mating connector should be inline type. Surely, the special solution also have male and female be angle type.

Specification

1. Contacts: 2pin
2. Connector Type: elbow, over molding.
3. Voltage Rated: 300V
4. Current Rated: 10A
5. Wire Size: ≤1.0mm²
6. Cable OD: 5-10mm
7. Operating Temperature: -40℃~+105℃
8. Mechanical Life: 3000 mating cycles
