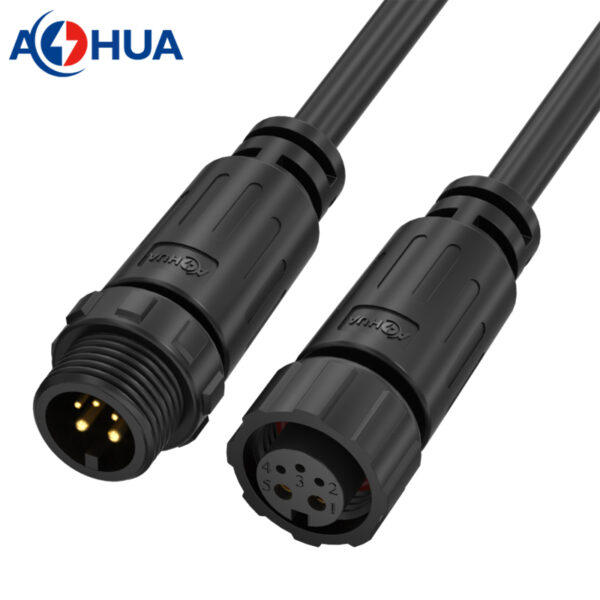

LED Lumanire Power Signal Control System Extension Cable Male Female Plug Socket 2+3pin Outdoor Waterproof Connectors M12 5A
LED Lumanire Power Signal Control System Extension Cable Male Female Plug Socket 2+3pin Outdoor Waterproof Connectors M12 5A
- M12
- 2+3pin
- 300V
- 5A+2A
- wire gauge: 2*1.0+3*0.3mm²/2*0.75+3*0.3mm²
- cable OD: 2-7.8mm
- IP68
- Cable Length: customized as requried.
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
LED Lumanire Power Signal Control System Extension Cable Male Female Plug Socket 2+3pin Outdoor Waterproof Connectors M12 5A
This M12 2+3 pin outdoor waterproof connector set is the essential link for robust and reliable LED lighting and control system installations. Designed specifically for demanding environments, it seamlessly extends power and control signals between LED luminaires, drivers, sensors, and controllers.
The key feature is its superior IP67-rated waterproof and dustproof construction. The durable design, featuring a secure screw-locking mechanism and integrated sealing gasket, ensures complete protection against rain, moisture, dust, and corrosion, making it ideal for both indoor and outdoor applications.
The 2+3 pin configuration is perfectly suited for modern LED systems, allowing for simultaneous power transmission (typically via the 2-pin side) and intelligent control signal communication (via the 3-pin side), such as DALI or 0-10V dimming. With a high current rating of 5A, it guarantees stable performance for powerful lighting arrays. The clear male/female plug and socket design enables quick, tool-free connections, drastically reducing installation time and ensuring a safe, error-proof link for your entire lighting network.
Highlights & Specifications
- Model: M12
- Connector Type: inline over molding;
- Connection Type: soldering
- Docking Type: threads for plug and unplug
- Plastic: nylon PA66
- Conductor: gold plated copper
- Cable: PVC, rubber, or specified
- Contacts: 2pin for power+3pin for signals
- Cable OD range: 2-7.8mm
- Voltage Rated: 300V
- Current Rated: 5A+2A
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP68
How to custom your own cable solution?
- specify your detail request: such as connector type, connection type, or docking type; what is the specific application environment and so on.
- confirm: working ampere required, wire gauge and cable length?
- it will be better for understanding if you can provide the sketch.
As customized products require more details before order, please contacts Molly sales team, her team will give you the best solution with 12 hours.
