AOHUA Enclosure Series Power Signal Control Box Assembly Molding Panel Mount Waterproof Electrical Connector 2-8PIN

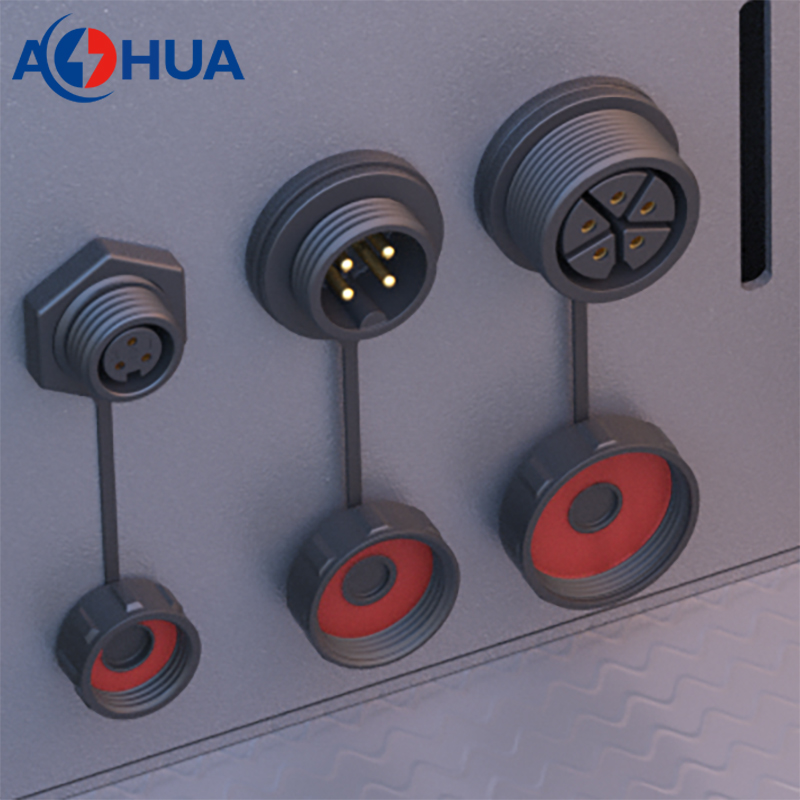

Here mainly introduce the panel mount series waterproof electrical connector for enclosure. The panel mount waterproof electrical connector widely use to the connection between power and equipment for rain water proof in outdoor or indoor, generally includes led street lights, sensors, power controller box, solar panel power box, wine energy system, feeding system and so on.

Specification

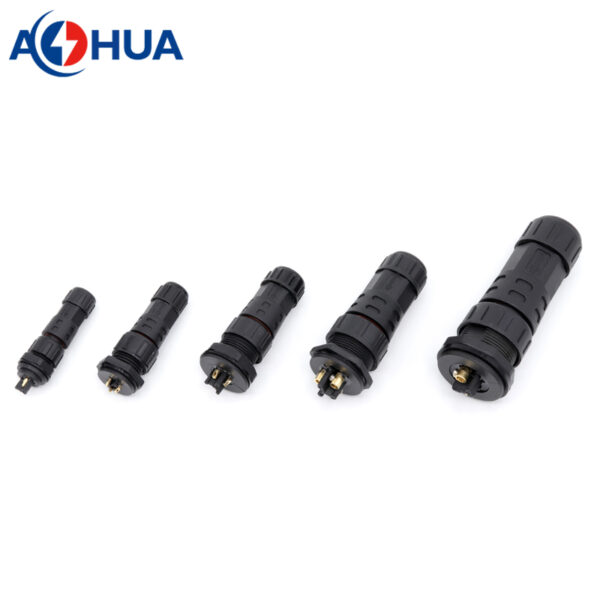

1. There are many products and models for panel mounting: screw thread type—M12, M16, M20, M25, M29. Or Self locking type- K15, K20, K25.

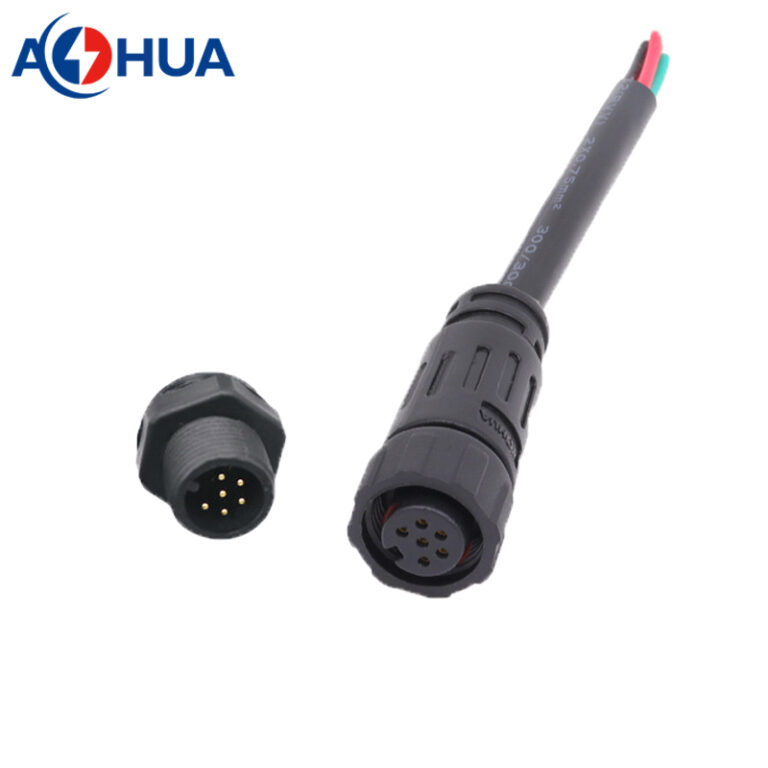

2. Contacts: 2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 2+2pin, 2+3pin, 2+5pin, 3+7pin.
3. Voltage Rated: 110V, 250V, 300V;
4. Current Rated: 5A, 10A, 15A, 25A, 35A.
5. Wire Size: 0.3-4.0mm²
6. Cable OD: 3-15mm.
7. Operating Temperature: -40℃~105℃
8. Mechanical Life: 3000 mating cycles
9. Waterproof Grade: IP67, IP68.

M series—-screw threads type waterproof electrical connector

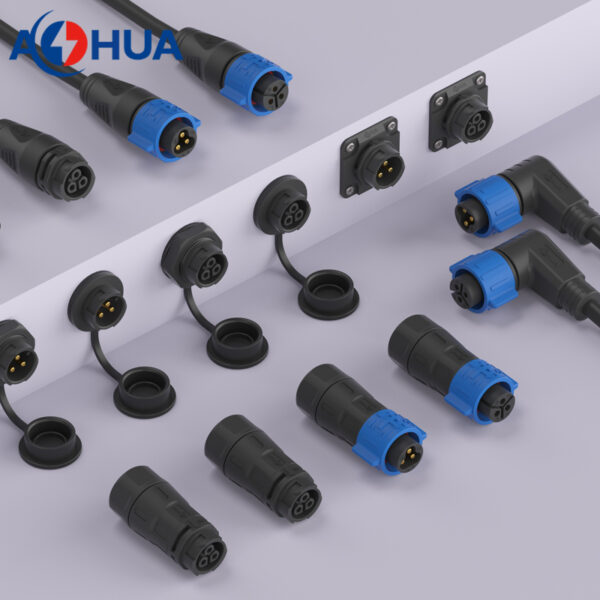

K series—self locking type waterproof electrical connector

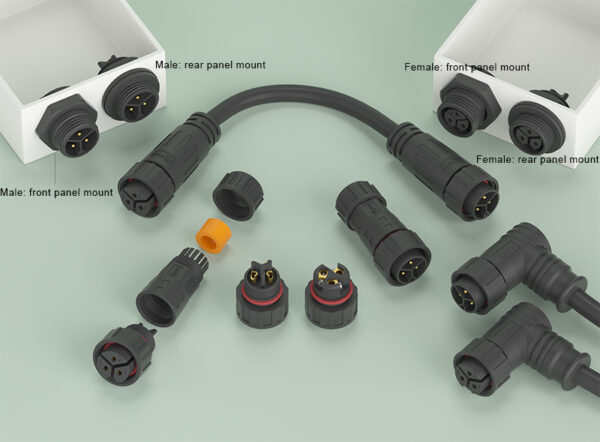

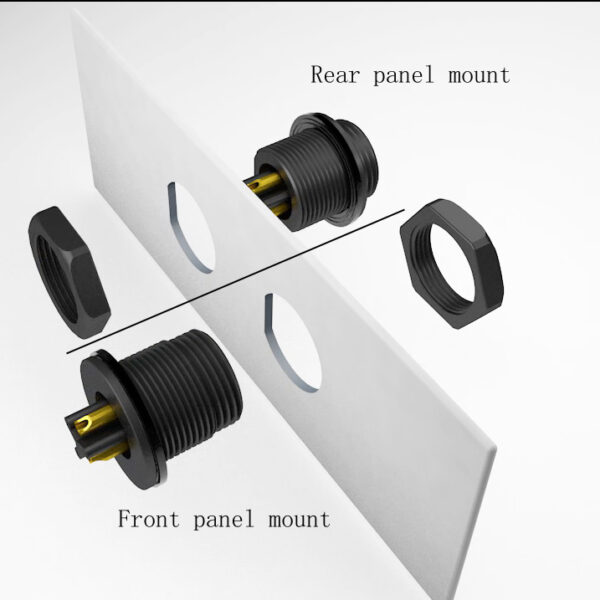

How to distinguish with front panel mount and front panel mount?

• front panel mount: the hex nut will be in front of the panel. It means that the hex nut is outside the box.
• rear panel mount: the hex nut will be behind the panel. It means that the hex nut is inside the box.

How to order your cable connector solution of waterproof electrical connector?

• specify the connector type you need, such as male panel or female panel, front panel mount or rear panel mount.
• specify the contact number, working ampere, wire size, and cable OD or cable length.
• carrying with dust cap or not?
• screw type or solder type?

We are the source of manufacturer located in Shenzhen, accept the customization for cable solution, please send detail requirements, let us make your idea coming true.
