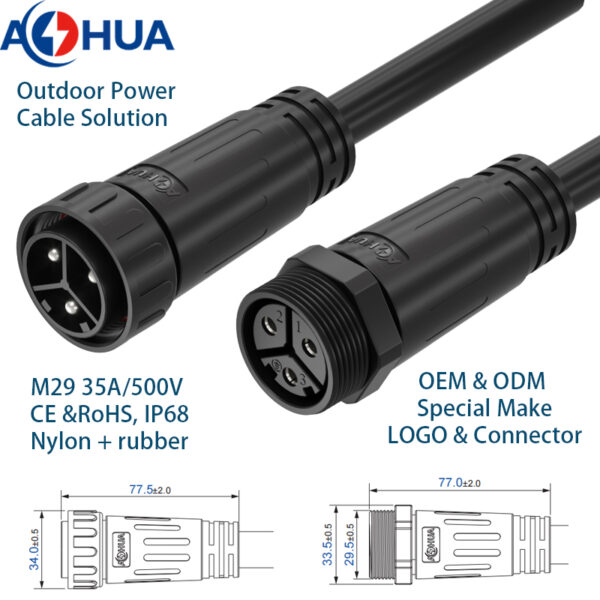

AOHUA M29 3 Pin 35A High Current IP68 Waterproof Connector, Overmolded Power Cable Plug for Outdoor LED Lighting, Industrial Equipment

• Welcome to AOHUA channel. Let us introduce AOHUA M29 waterproof connectors here. This is over molding type waterproof connector, AOHUA M29 3-Pin Overmolded Waterproof Connector is a high-performance outdoor power cable solution designed for high-current, high-voltage applications in harsh environments. With a rated current of 35A and voltage of 500V, it supports 3*4.0mm² and 3*6.0mm² heavy-duty cables, and achieves IP68 waterproof, dustproof, and corrosion-resistant performance, making it ideal for outdoor power, such as LED lighting, industrial automation, solar energy systems, EV charging, agricultural equipment, and other outdoor/harsh environment power connection scenarios.
• Made of high-quality nylon + rubber materials: nylon plastic injection, and rubber cable. Also this connector features an integrated overmolded design that eliminates the risk of water leakage at the cable-joint interface, ensuring long-term stable power transmission even in extreme weather such as heavy rain, snow, and high temperature. It supports OEM/ODM customization, including cable length, wire gauge, LOGO customized, and special structure design, to meet the personalized needs of different projects.

• Key Features & Advantages

1. High Current & High Voltage Compatibility: Rated 35A / 500V, supports 4.0mm² and 6.0mm² heavy-duty cables, meeting the power transmission needs of high-power equipment;
2. IP68 Ultimate Waterproof Performance: Fully sealed structure, dust-tight and waterproof, can be immersed in 1.0m deep water for 24hours use, favorablely suitable for outdoor, underwater, and humid environments;
3. Integrated Overmolded Design: One-time molding of cable and connector, no gap at the joint, fundamentally solves the problem of water seepage, with higher reliability than assembled connectors;
4. Premium Material: High-strength nylon shell (PA66) with excellent impact resistance, aging resistance, and UV resistance; high-elasticity rubber sealing ring ensures long-term sealing performance;
5. Safe & Reliable Connection: Copper alloy contact terminals with gold-plated treatment, low contact resistance, anti-oxidation, and anti-vibration, ensuring stable power transmission and avoiding safety hazards such as heating and short circuit;
6. Easy Installation: Plug-and-play design, no professional tools required, quick installation and disassembly, saving labor costs;
7. Wide Application: Suitable for outdoor LED lighting, solar power systems, industrial automation equipment, EV charging piles, agricultural irrigation equipment, marine equipment, outdoor power distribution, etc.
8. Certified Quality: Passed CE, RoHS certification, compliant with EU environmental and safety standards, quality guaranteed; and VDE cable.
9. Customizable: Support OEM/ODM, including cable length, wire gauge, LOGO printing, color, and special structure customization.

• Compatible with

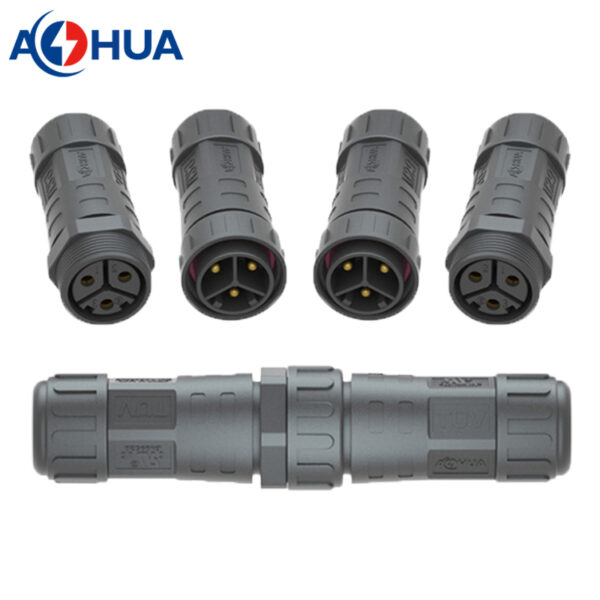

Assembly type M29 connector, screw fixing type.

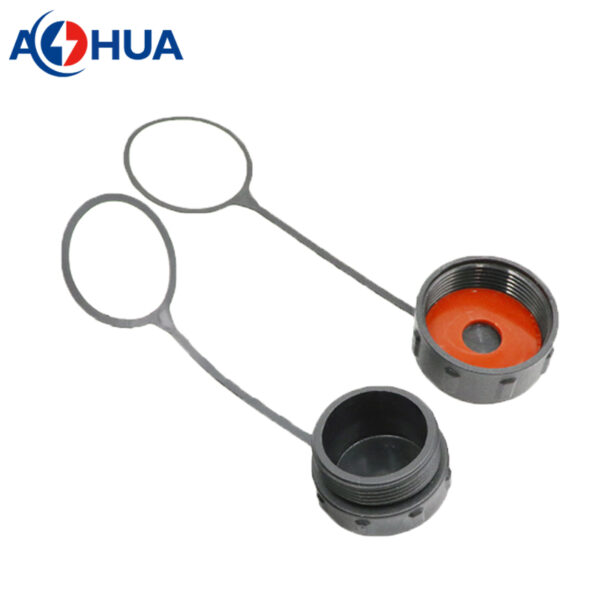

Dust caps for M29 connectors

• Model: M29 3-Pin Overmolded Waterproof Connector
• Rated Current: 35A
• Rated Voltage: 500V
• Waterproof Grade: IP68
• Wire Gauge Compatibility: 3*4.0mm², 3*6.0mm² (customizable for other wire gauges)
• Contact Resistance: ≤0.5mΩ
• Insulation Resistance: ≥1000MΩ
• Withstand Voltage: 2000V AC / 1min
• Operating Temperature: -40℃ ~ +85℃
• Mechanical Life: ≥3500 plugging cycles
• Certification: CE, RoHS

How to order?

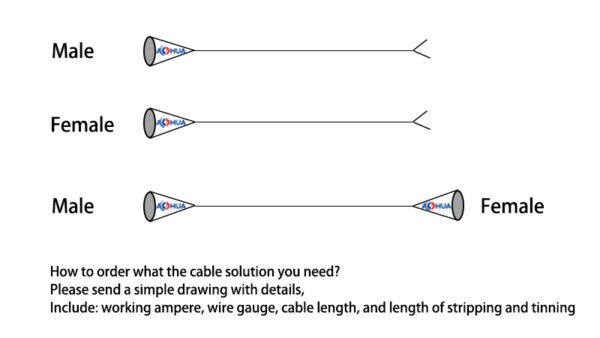

It would be great thanks if you can send us the sketch, which will be easy to understand what you need.

Step 1: Confirm Product Requirements

• Confirm the basic model: M29 3-Pin 35A 500V IP68 Overmolded Waterproof Connector
• Specify the parameters: working ampere, wire size and cable length.
• Confirm cable specifications: Wire gauge (3*4.0mm² / 3*6.0mm², or other custom gauges), cable length, cable type (pure copper core, etc.)
• Confirm custom requirements: LOGO , packaging, special structure, etc.
• Confirm order quantity: Sample order, small batch order, or bulk order

Step 2: Get Quotation & Sample Confirmation

• Send your requirements to our sales manager (email: molly@aohuadz.com)
• We will provide a detailed quotation within 24 working hours, including product price, shipping cost, delivery time, etc.
• For sample orders: We can provide free samples (freight collect) for your testing and confirmation
• After sample confirmation, we will proceed to mass production

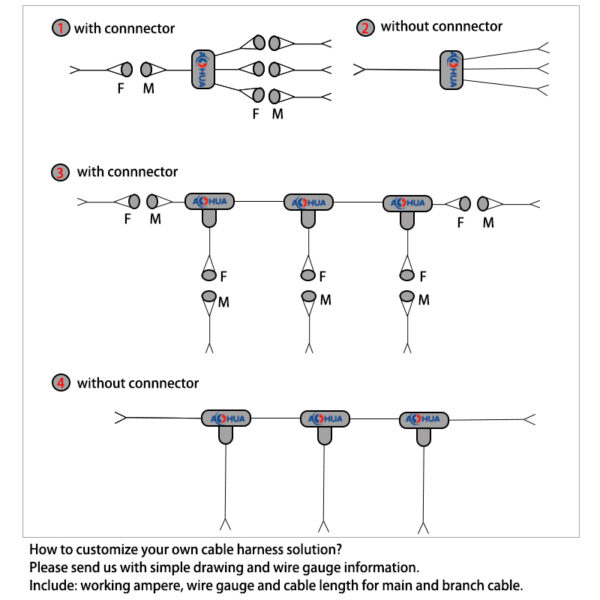

Special-made cable solution

1. Cable Customization

• Wire Gauge: Support customization of 3*0.5mm² to 3*6.0mm², and other pin counts (2P/4P/5P, etc.)
• Cable Length: Customizable from 0.1m to 50m, support different cable types (pure copper, tinned copper, etc.)
• Cable Sheath: Support customization of different materials (PVC, PUR, rubber, specified, etc.) and colors (black, gray, etc.)

2. Structure & Function Customization

• Pin Count Customization: Support 2P, 4P, 5P, 6P, etc., to meet different power/ signal connection needs
• Special Structure: Customize panel mount, front/rear mount, right-angle, etc., according to your equipment structure
• High Temperature/ Low Temperature Resistance: Customize materials for extreme temperature environments (-40℃ ~ +105℃)
• Anti-vibration/ Anti-interference: Add shielding layer, anti-vibration structure, etc., for industrial/ automotive scenarios

3. LOGO & Brand Customization

• LOGO Printing: Print your brand LOGO, model, parameters, etc., on the connector shell and cable
• Packaging Customization: Customize packaging boxes, labels, manuals, etc., with your brand design
• Color Customization: Customize connector shell and cable color according to your brand.

4. Certification & Compliance Customization

• Support customization to meet different regional standards: UL, VDE, etc.
• Provide customized test reports and certification documents for your projects

5. Bulk Order & Project Customization

• Provide exclusive solutions for large-scale projects (such as solar power plants, EV charging piles, etc.)
• Support one-stop service from design, proofing, mass production to after-sales
• Provide preferential prices for long-term cooperative customers
