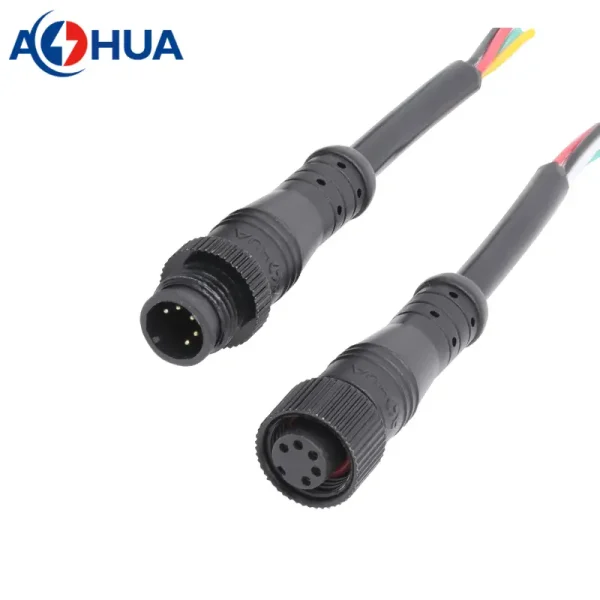

Electronic equipment M12 5 pin waterproof male female connector
Electronic equipment M12 5 pin waterproof male female connector

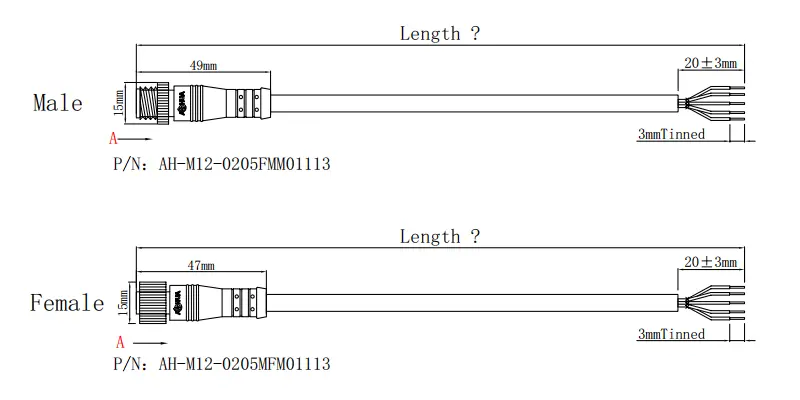

P/N: AH-M12-0205FMM01113/AH-M12-0205MFM01113
Material: metal
Cable: PVC
Color: black /white
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

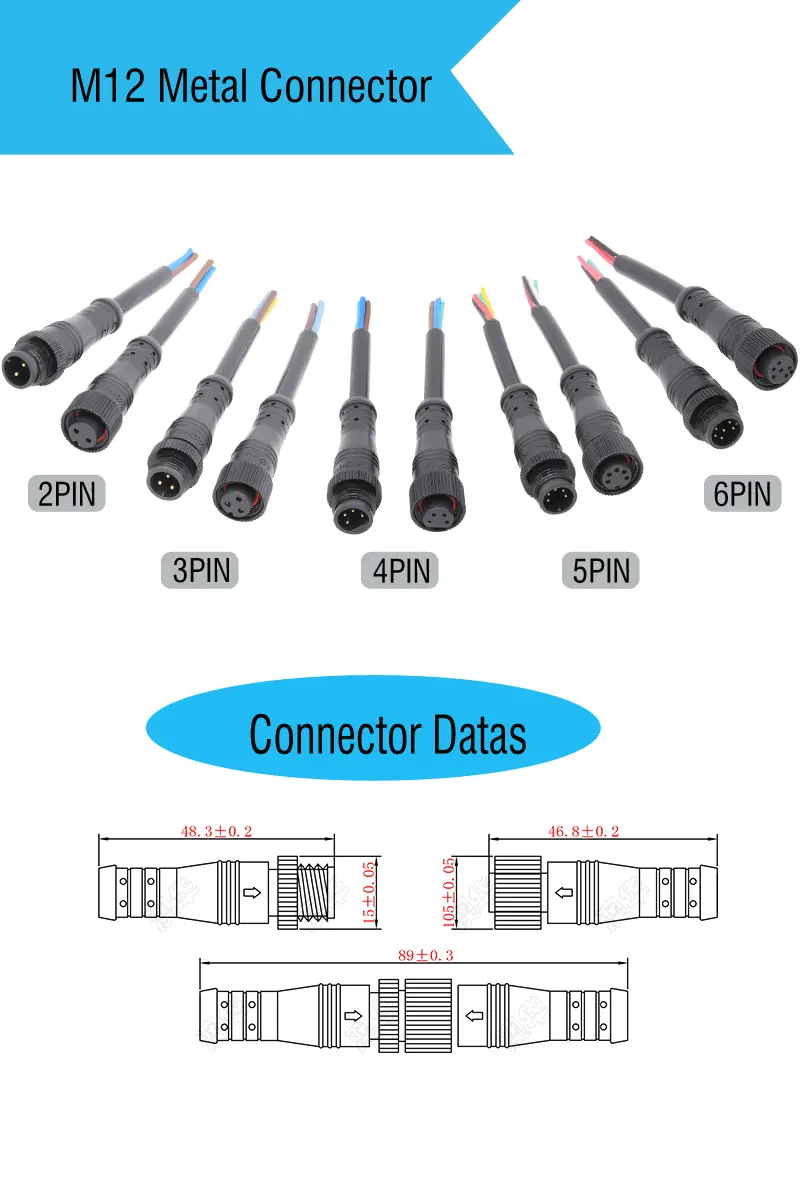

| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M12-0602FMM01113/AH-M12-0602MFM01113 | ≤1.0mm² | 110V | 6A |
| 3 | AH-M12-0503FMM01113/AH-M12-0503MFM01113 | ≤0.75mm² | 110V | 5A |
| 4 | AH-M12-0404FMM01113/AH-M12-0404MFM01113 | ≤0.5mm² | 110V | 4A |
| 5 | AH-M12-0205FMM01113/AH-M12-0205MFM01113 | ≤0.3mm² | 60V | 2A |
| 6 | AH-M12-0206FMM01113/AH-M12-0206MFM01113 | ≤0.3mm² | 60V | 2A |
| 8 | AH-M12-0108FMM01113/AH-M12-0108MFM01113 | ≤0.2mm² | 60V | 1A |
| Cable OD | 5.0mm-7.2mm |
| Mechanical Life | 1500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
