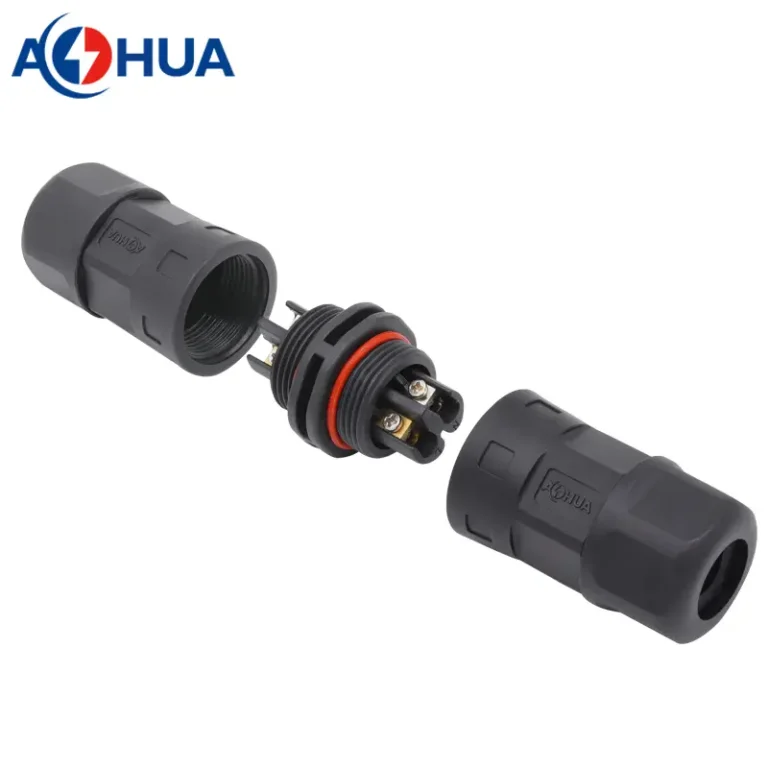

Fast Connecting Power 10A Push Wire 300V Nylon Assembly 3 Pin Waterproof Connector for Outdoor Lights

3 pin waterproof connectors used to make connections in electrical /power /signal installations and equipment which require a full protection against water, damp and dust.

Materials of 3 Pin Waterproof Connector for Outdoor Lights

1. Plastic: Nylon PA66
2. Conductor: PCB design, copper
3. Stainless steel
4. Silicone rubber seal ring

Characteristics of 3 Pin Waterproof Connector for Outdoor Lights

1. Push wire locking type: easier for wire installation;
2. Assembly type: without cable, you can bespoke the cable length as you need;
3. IP68: 24 hour waterproof under 1 meter deep water.

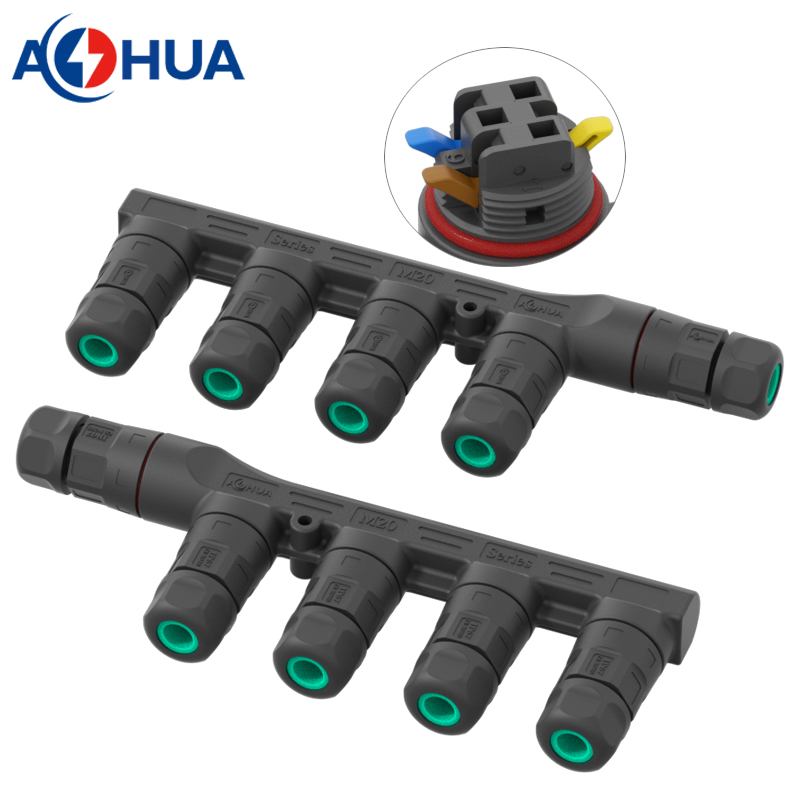

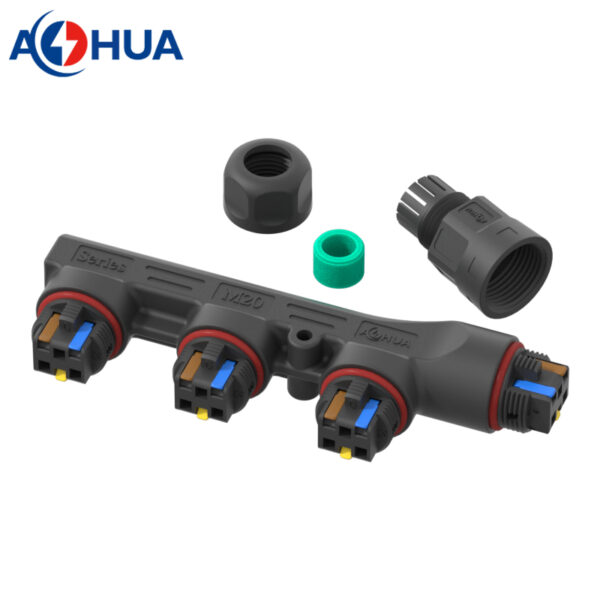

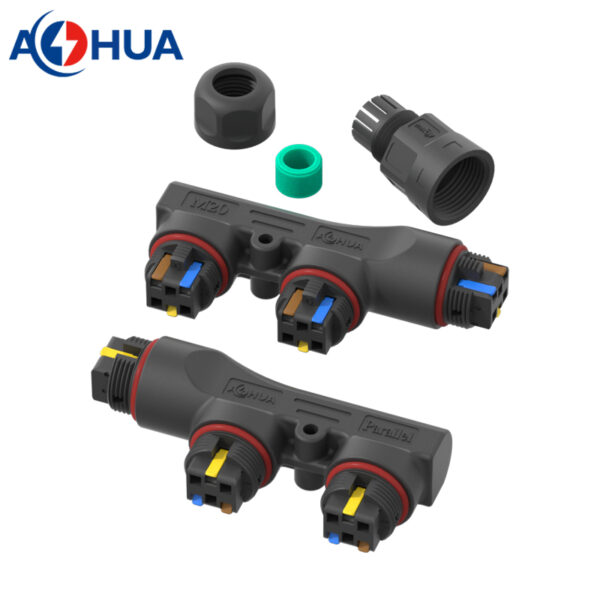

4. 1 input to 2, 3, 4 outputs for choices.

Parameter of 3 pin waterproof connector for outdoor lights

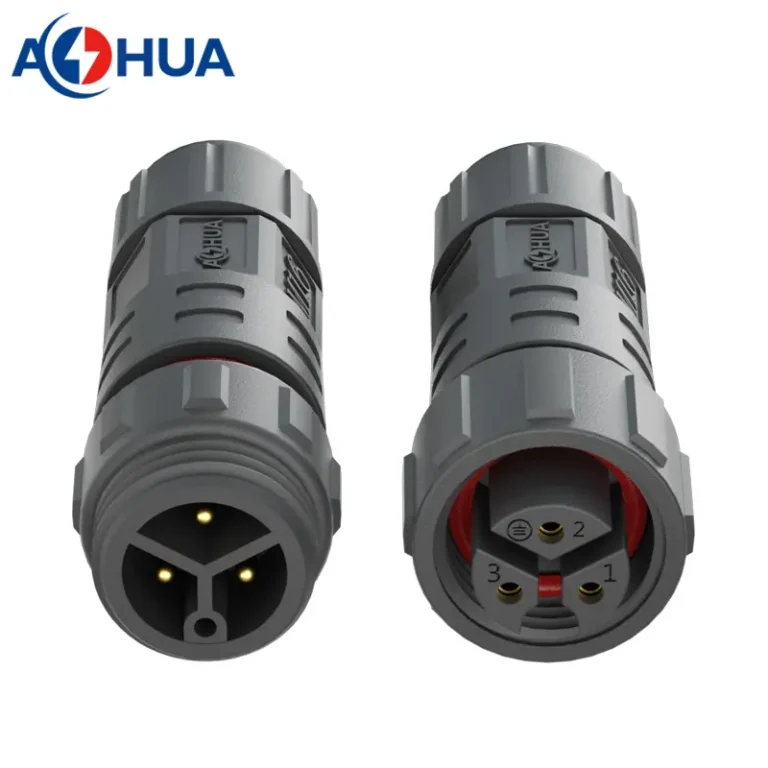

1. Contacts: 2pin and 3pin
2. Voltage Rated: 300V
3. Current Rated: 10A
4. Wire Gauge: ≤1.5mm²
5. Cable OD: 5-10mm
6. Operating Temperature: -40℃~+105℃
7. Waterproof IP: IP67/IP68
8. Seal Ring: φ5.5/φ6.5/φ7.5/φ8.5/φ9.5/φ10

How to order for 3 Pin Waterproof Connector for Outdoor Lights

It would be great appreciated if you can provide a simple drawing of what you need or tell us the detail request.

What we want to know the detail request in the initial phase:

1. contacts pin, such as 2pin or 3pin;
2. the number of branch sockets, such as 2 outs or 3 outs;
3. what is the working ampere?
4. what is the wire size for input and output?
5. what is the cable OD for input and output?

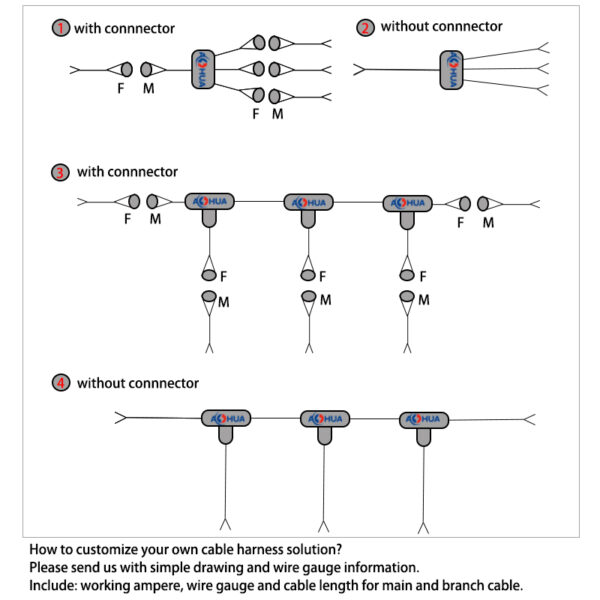

6. what is the circuit diagram? Parallel or Series?

Send all these information to Molly sales team for getting further confirmation and quotation.

AOHUA bespoke all types of cable solutions and waterproof connectors, please send your detail request or drawing, our team will design and create the drawing/3D files for you.
