Power Signal Control Box 2 PIN Panel Mount Waterproof Male Female Electrical Wire Connectors
Power Signal Control Box 2 PIN Panel Mount Waterproof Male Female Electrical Wire Connectors
Male: AH-M16-1002FMF01112
Female: AH-M16-1002MFZ01112
Contacts: 2PIN
Color: black
Connector material: nylon
Metal material: gilded brass
Cable material: PVC/rubber/PUR
Connector type: panel mount
Rated voltage: 300V
Rated current: 10A
Wire gauge: ≤1.0mm²
Certificate: ISO/CE/ROHS/UL
Type: female panel mount/male in-line
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
Power Signal Control Box 2 PIN Panel Mount Waterproof Male Female Electrical Wire Connectors

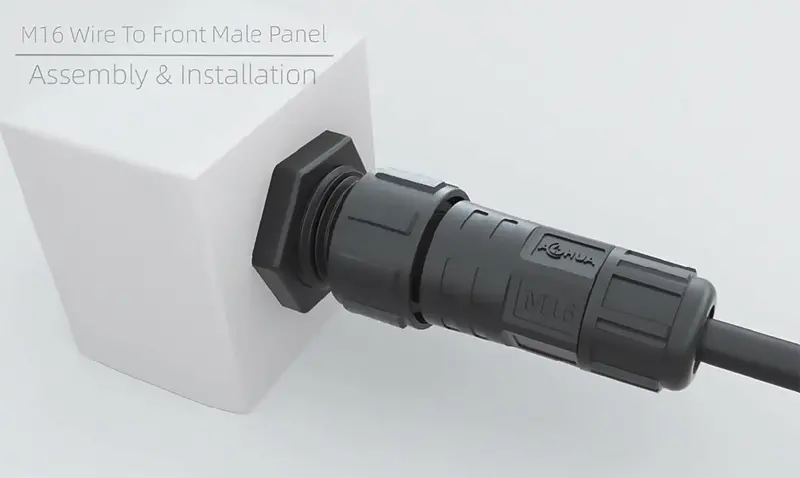

This is M16 thread waterproof type connectors. The male connector is panel type and the female is in-line type, which male female gender mating for plug and unplug.
- Contacts: 2 pin
- Color: black
- Plastic material: nylon PA66
- Metal material: gold plated brass
- Rated voltage: 300V
- Rated current: 10A
- Wire gauge: ≤1.0mm²
- Cable jacket OD: 3.0-7.5mm

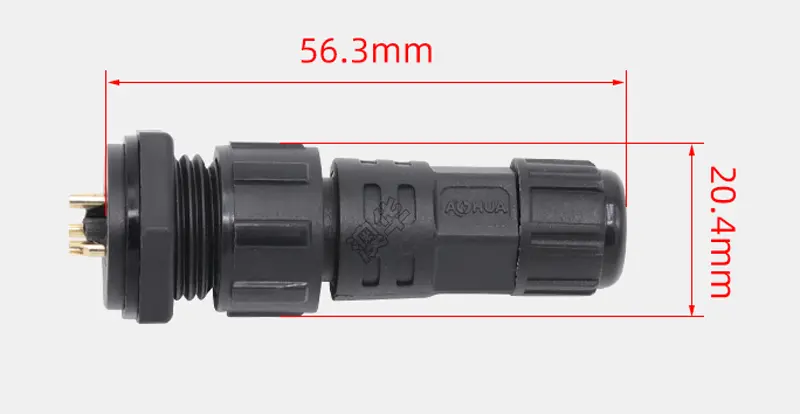

- Connector diameter: length about 56.3mm and wide about 20.4mm.
- Panel hole diameter: 17.2*16.4mm
 |
|
|

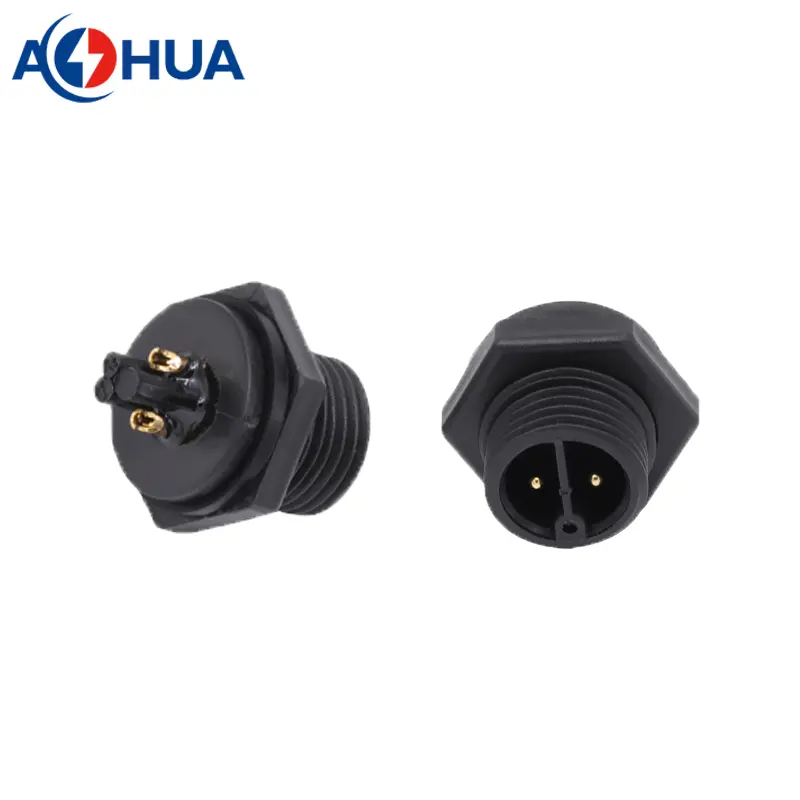

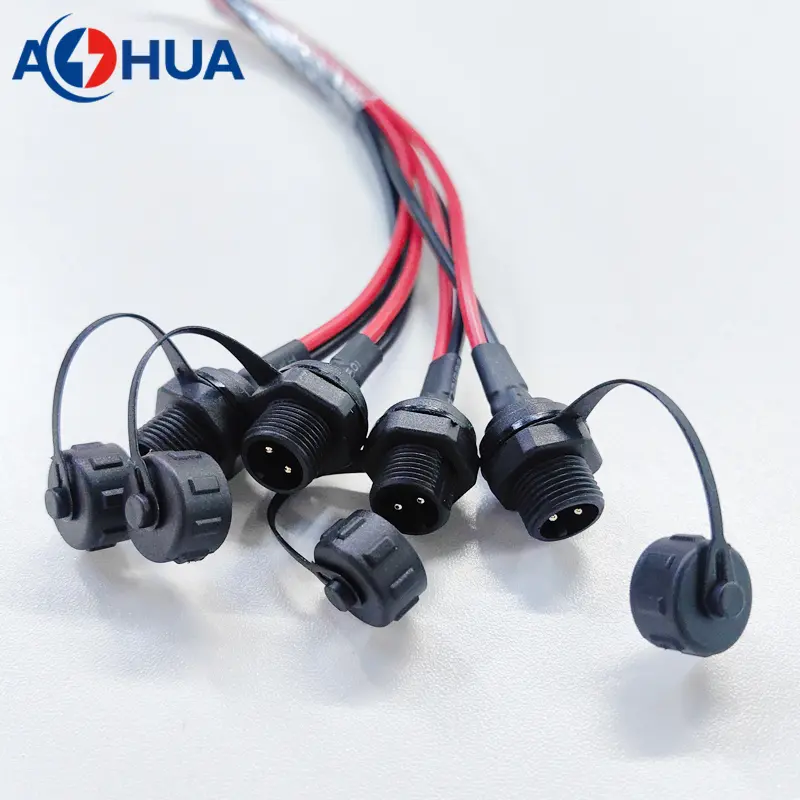

Male: AH-M16-1002FMF01112 This is front panel mount type male connector, which is mounted on the panel hole, the hex-nut is in front of panel. And there is dust cap for choosing from when unused. We also accept the wire processing with single electrical wire. And even terminal installation, such as JST terminal, molex terminal, so on. |
|
 |

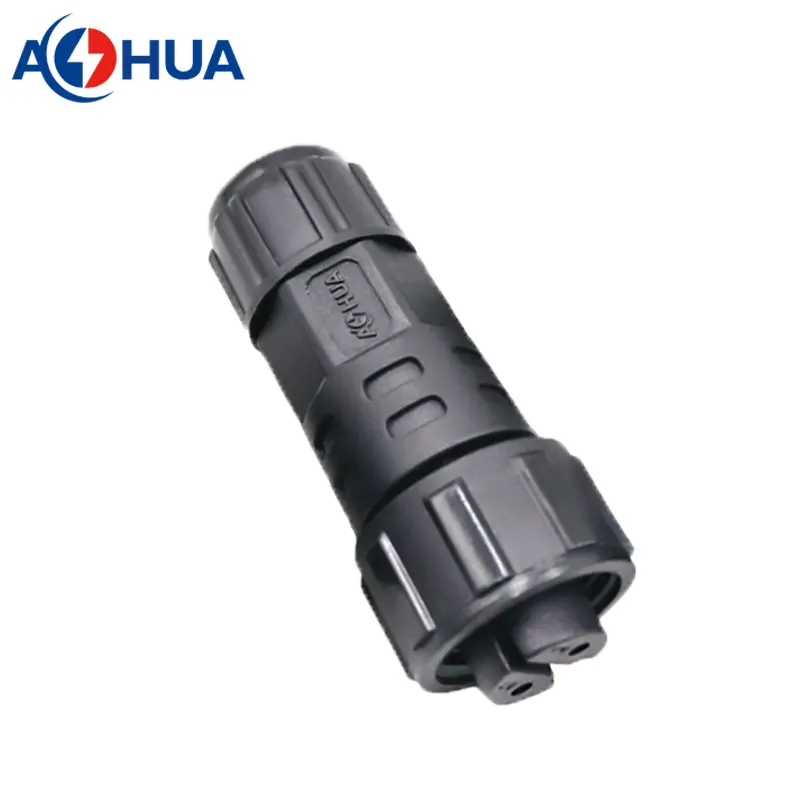

Female: AH-M16-1002MFZ01112 This is the female socket, which is in-line type. It will be soldered on cable wire. |
Components of connectors
This is M16 connector assembled with some components.
|

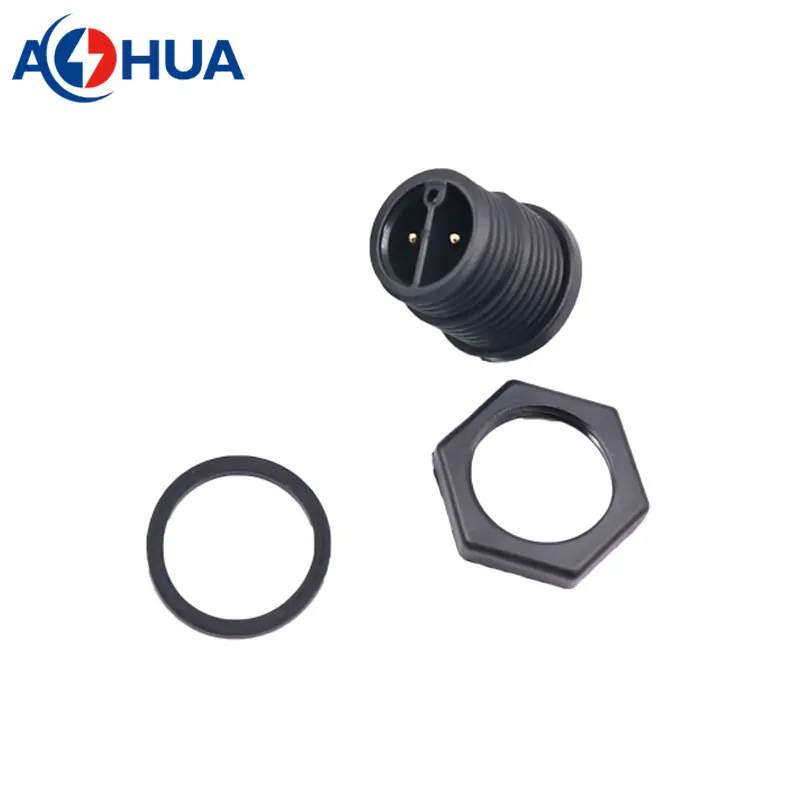

Male plug male connector core gasket hex-nut |
 |
|

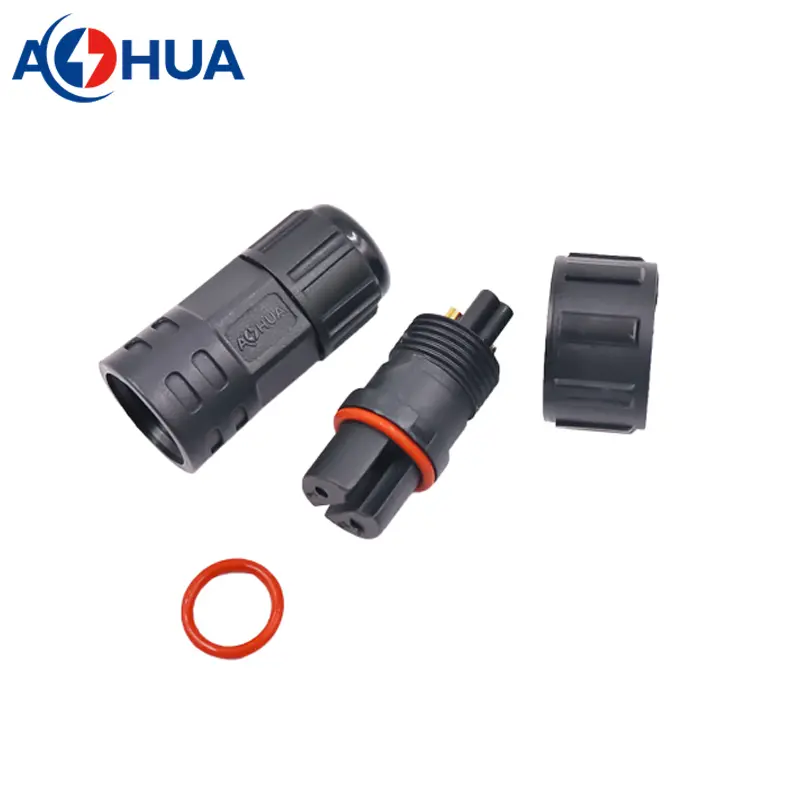

Female socket female connector core coupling nut O-ring Housing (includes waterproof nut, cable gland, enclosure) |
 |
|
The cable will go through the connector housing(inside cable gland), so the cable jacket outer diameter must require clear, otherwise it will not achieve waterproof effect. How to choose the right cable gland for the cable to get better waterproofe effect? With many testing showing, it will get better waterproof effect if the cable jack OD close to but no larger than cable gland. Such as: Cable OD: 2.5-3.6mm— cable gland: φ3.6mm Cable OD: 3.5-4.1mm— cable gland: φ4.1mm Cable OD: 4.0-5.5mm— cable gland: φ5.5mm Cable OD: 5.0-6.5mm— cable gland: φ6.5mm Cable OD: 6.0-7.5mm— cable gland: φ7.5mm |
