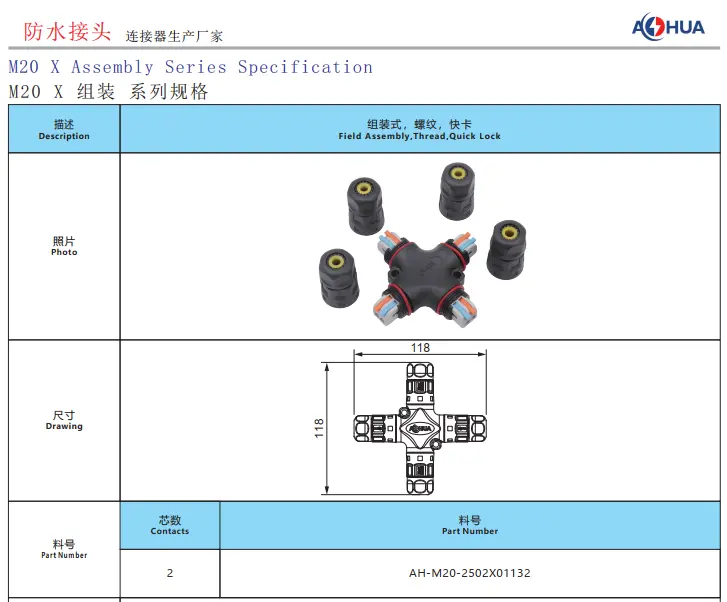

M20 X Type Assembly Waterproof Connector
| Part Number | AH-M20-2502X01132 |
| Voltage Rating | 250V |
| Currrent Rating | 25A |
| Wire Gauge | ≤2.5mm² |
| Cable OD | 6mm-10mm |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
| Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |

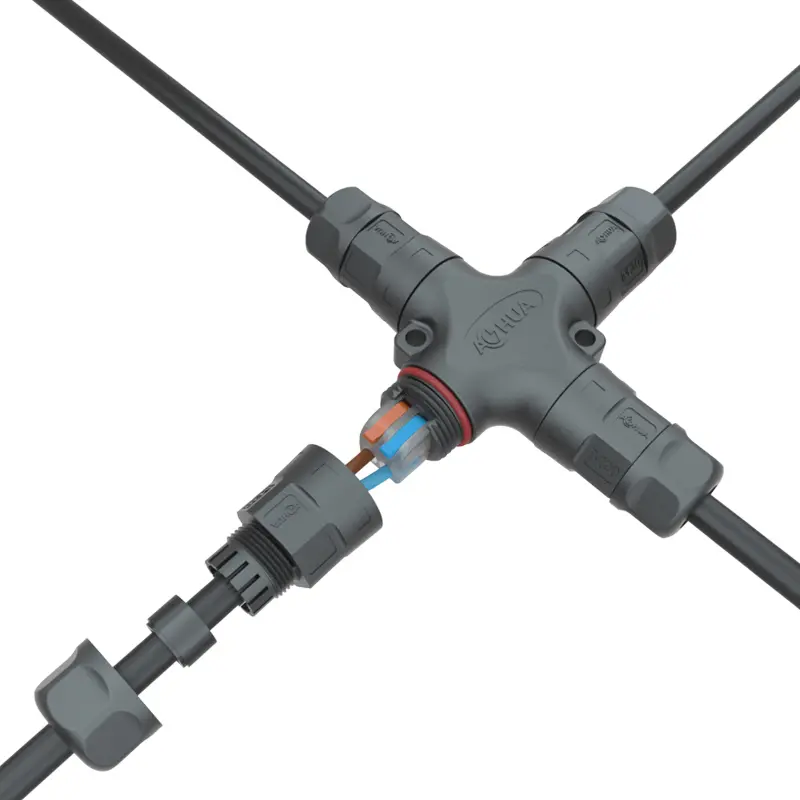

X Type Quick Push-wire Connector
