The cable connector plugs are widely used in LED plant growth lamps, garden lights, stage lights, LED outdoor displays, junction boxes, outdoor projects, mining projects, solar wind power generation, solar water heaters, and various mechanical equipment.
This article will provide knowledge on what you need to know about cable connector plugs.
What are cable connector plugs?
The cable connector plugs are male or female plugs connected to the end of the cable, these plugs are suitable for audio, video, data flow, current, and other tools that need to signal transmission from end A to end B. Cable connector plugs provide a way to connect one device to another through a cable and meet this need by installing appropriate connectors at both ends.
With the deepening of globalization, the requirements of various industries for products are also increasing. The customer is pursuing the product’s practicability as well as the product’s aesthetics. In the past, simple electrical tape can no longer meet the customer’s needs. The connector plays an important role in the connection of equipment and becomes an indispensable part of maintaining electrical performance.
What can we provide cable connector plugs?

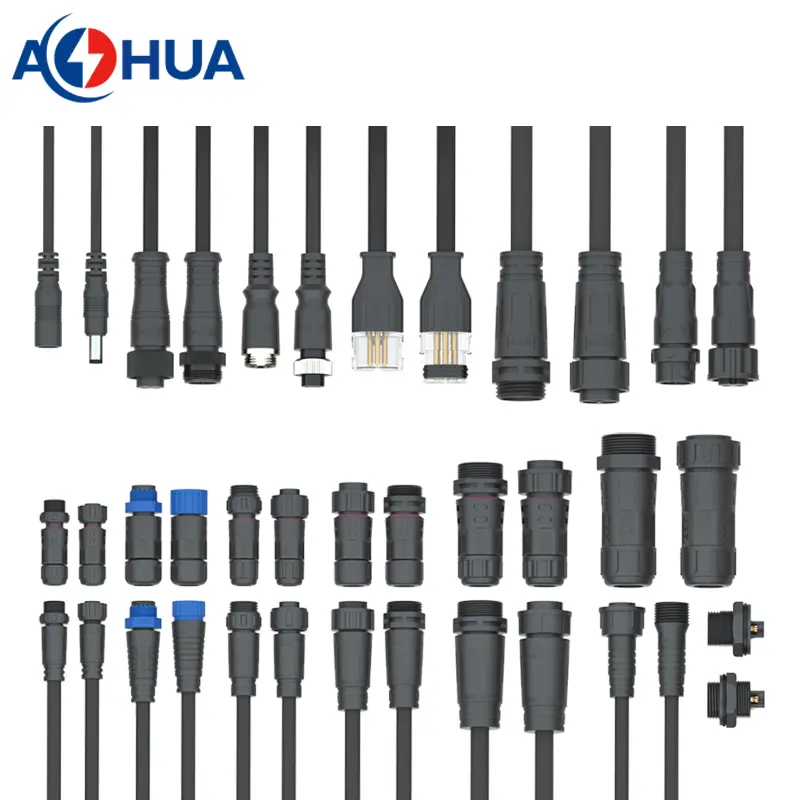

Nylon field assembly series
Our nylon field assembly series cable connector plugs include M12, M15, M16, M19, M20, M25, M29 wire-to-wire field assembly series and M12, M16, M20, M25, M29 wire to panel field assembly series.
Wire to wire /wire to panel assembly.
Solder type/screw fixing type/self-lock type.
The waterproof grade is IP67, and the installation is safe and convenient.
Nylon material, UL, CE, ROHS, TUV, SAA, CQC, and other certifications.
Nylon over-mold series
Nylon molded cable series includes M12, M15, M16, M20, M25, and M29.
Pre-mold with PVC/rubber cable.
Nylon material (PA66) ensures the necessary waterproof level(IP67) and stable electrical performance.
The operating rating is -40℃ ~ +105℃, and the mechanical life is 3000 mating cycles.
DC Series
We have an M12 DC waterproof connector, M13 DC waterproof connector, M14 DC waterproof connector, M13 DC quick lock connector, and M11 DC quick connector.
PVC material, DC quick/ DC waterproof/ DC quick lock series, molded with cable.
Black\white\transparent for choices, directly install, male to female.
2*20AWG, 2*22AWG, 2*24AWG for choices, 5.5 mm * 2.1 mm, 5.5 mm * 2.5 mm and 3.5 mm * 1.35 mm DC plug.
Metal Series
The metal series is including M8 01, M8 02, M12, M16, and M19.
Nylon/PVC material, male /female type.
Favorable waterproof level IP65, easy installation.
The operating rating is -20℃ ~ +80℃, and the mechanical life is 1500 mating cycles.
Aviation series
We have the M12 and M16 aviation series
Pre-mold with PVC/rubber cable, male/ female type, male panel mount type. Male/ female type
Not waterproof type, quick lock, easy installation.
Q series
Q12 PVC connector, 2 3 pins for choices; Q13 PVC connector, 2 3 4 5 6 pins for choices.
Male /female, favorable waterproof level ip65, safe and easy installation.
High quality, best service.
PVC series
Our PVC series cable connector plugs including M06, M10, M12, M14 01, M14 02, M16, M19 01, M19 02, M21, M23, and M28 series and M12, M14, M16, M19 01, M19 02, and M23 PVC panel series.
Male and female waterproof plugs, easy to assemble
PVC material, molded with cable solder type.
The waterproof grade is IP65, and the installation is safe and convenient.
Black and white for choices.
High quality at a competitive price
Widely used in LED lighting, flexible strip outdoor displays, electrical equipment, automation machines, electrical vehicle, etc.
Any length of the cable is available and the terminal processed
Distributor series
Nylon material, waterproof F splitter type, SJOW rubber cable/ SJTW, 2464 PVC cable.
Solder type, screw fixing type.
The waterproof level is IP67, and the installation is safe and convenient.
For the screw fixing type, you will need a small, fine screwdriver to tighten up the screws on these sockets.
Customer drawings and designs are welcome, as we have our professional R&D team to provide you with various solutions.
With cable connector plugs, our living environment can become more convenient. With cable connector plugs, when we learn that the electrical appliances in our life or the machines and equipment used in enterprises have problems and failures, we can choose to continue to use waterproof connectors as long as we replace a small part. We can design this thing with new technologies to make it more flexible. To learn more about our products, please contact us today
