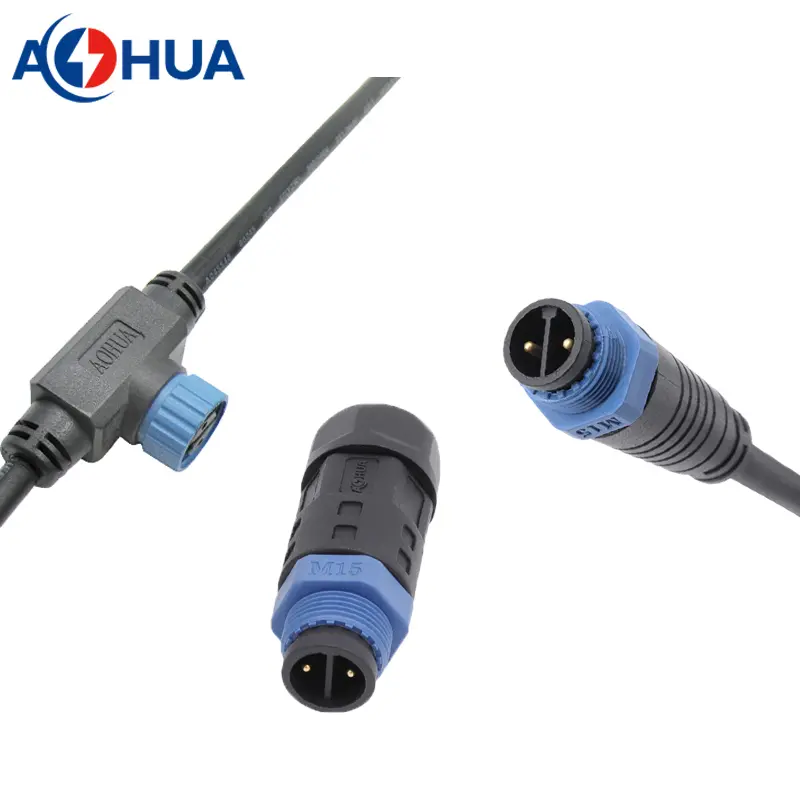

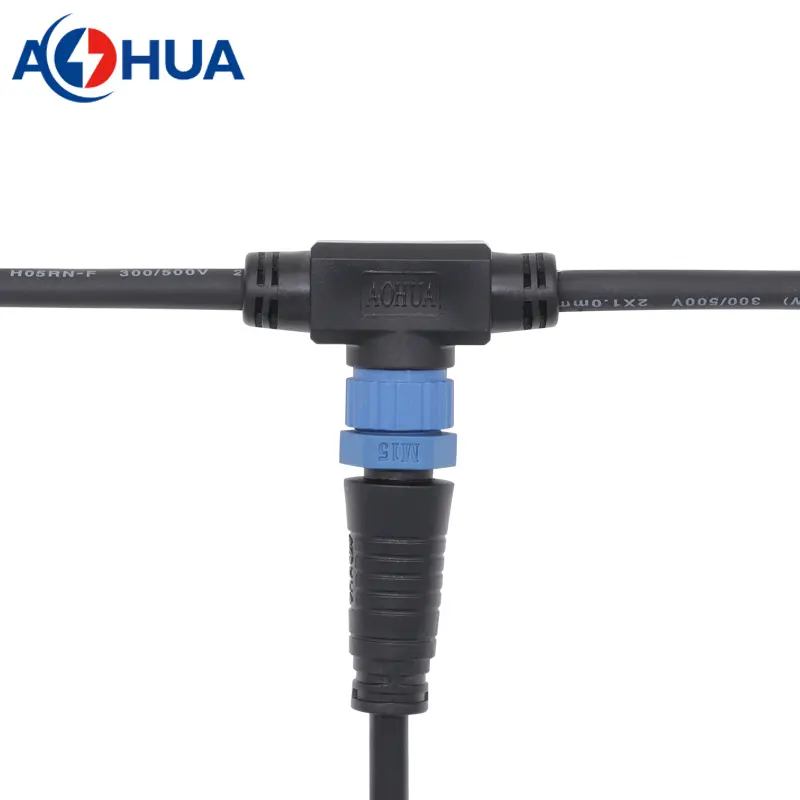

AOHUA horticulture led lighting 10A 1.5mm wire T type M15 male female 2 pin power waterproof plugs

Power waterproof plugs are the cable connectors to connect power supply to electrical devices. From power supply to devices, as usual, the cable layout will be redesign into a cable solution according the space of cable layout, connection, driver, pluggable, and so on. Such as, the power waterproof plug would be unplug when require the power cut off, when the power runing, it need to plug into. In a word, the power waterproof plugs act as a connection on different application.

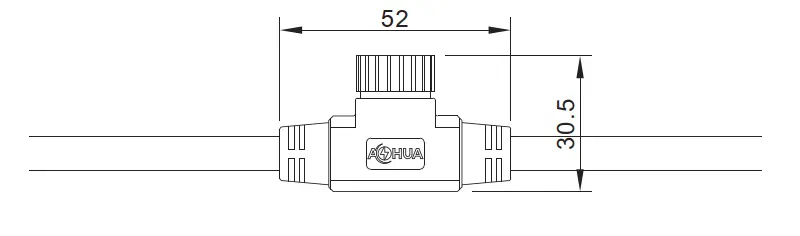

This T type power waterproof plugs are small connectors, the socket is only length 52mm and wide 30mm, which is suitable for small limited space. The branch cable is perpendicular to the main line,  which is neat and beautiful wiring. Specially, this male female connector is standard M15 connector, which is compatible to most of M15 connectors in the market. So your design will be more flexible.

Parameter of power waterproof plugs

• Material: nylon connector +rubber cable
• Hardware: gold plated copper
• Connection: Parallel or Series
• Conventional Wire Gauge:  2*1.5mm², 2*1.0mm², 2*0.75mm²

• For this power waterproof plugs, the socket are female with screw nuts. It mean that the branch cable is male connector. While, there are assembly connectors or molded connectors to mating with the female socket. Usually, the branch cable will be reached to the devices. If the device already have cable, it would be better if the assembly male connector to install the wire; if the device is without cable, such as in the factory, in order to save cost, the molded cable connector is better to connect to device directly.
• More about assembly or molded connectors, as long as your device already with cable, you can choose assembly connector; If your device is without cable , molded connectors is your best choice.

How to choose the right power waterproof plugs?

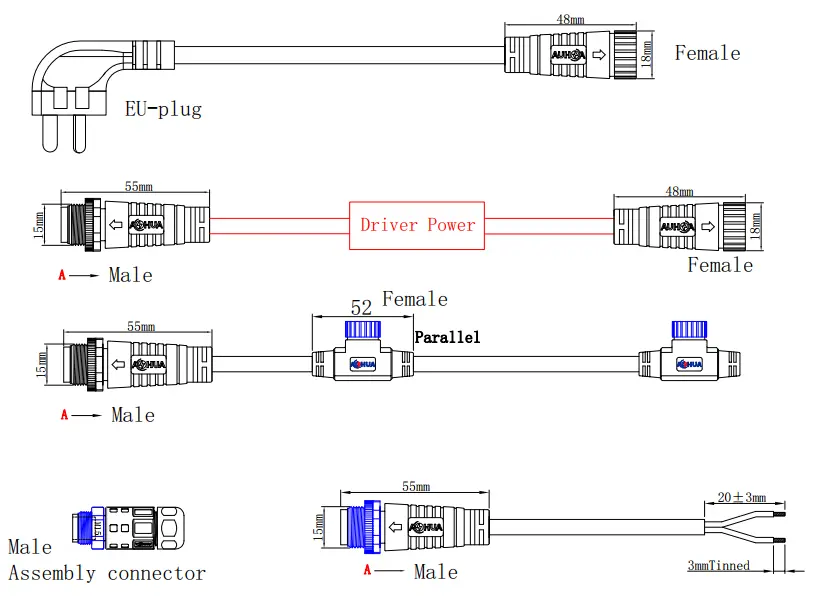

As usual, to make a neat and beautiful wire layout, we would like to design the cable solution from power plug to the device completely. Thus, beside you need to make it clear includes wire gauge, cable length, connection, you also need to let us know how many branch you want, whether power plugs you need, whether have driver power, and so on. In short, we want to know your idea. Like that, simple drawing would be better to understand what you want. Or it would be much appreciated if you can offer drawing. The below drawing is for reference.

Buy power waterproof plugs, believe and choose AOHUA, why?

Why we recommend you choosing AOHUA is that AOHUA deserves your trust. Choosing AOHUA, your products and delivery are guaranteed, your money is safe. AOHUA have own design and research & development group, production group, quality group, hardware and mold group, cable manufature group, perfect assembly line. Choosing AOHUA, you no longer have any worries. Start here, click aohua.com, email: molly@aohuadz.com.
